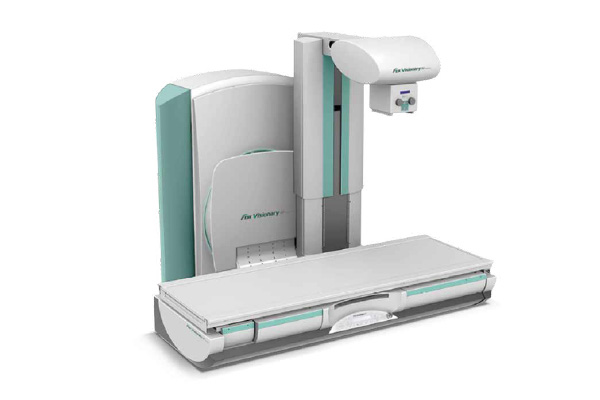

FDX Visionary RF-PremiumNEW
The FDX Visionary RF-PREMIUM was designed to provide maximum flexibility for all types of rooms and for all types of examinations.
The system helps make the patient experience as calm and comfortable as possible.
The content on this page is intended to healthcare professionals and equivalents.

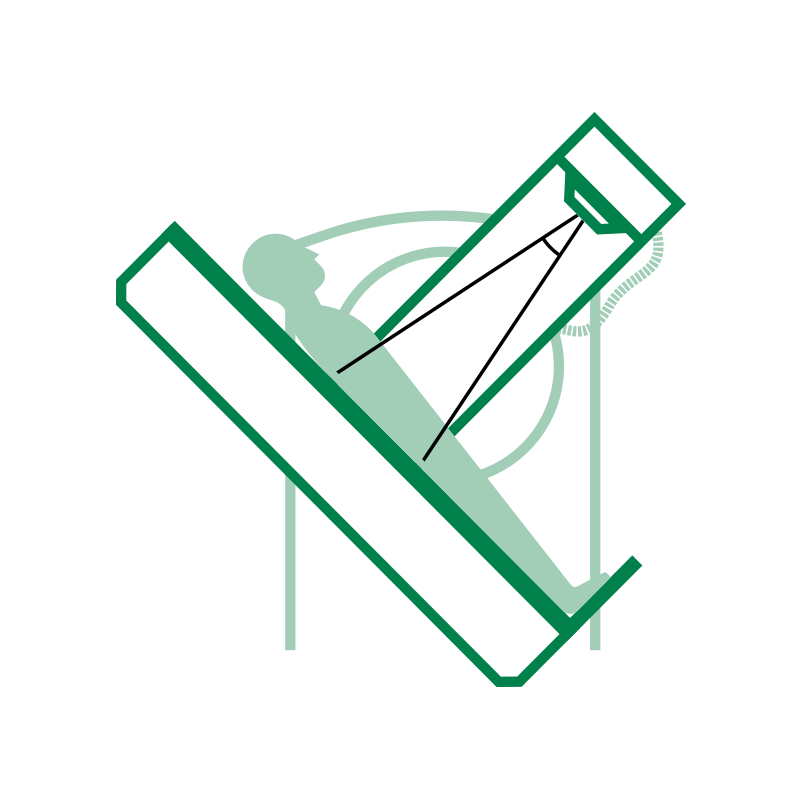

The motorized tilting of the table at +/- 90° gives the FDX Visionary - RF PREMIUM the ability to easily integrate into any examination room.
The table top lowers to 48 cm to assist patient access and the operator has easy reach positioning from all around the table. Designed to support patients weighing up to 265 kg without limitations.
A user selectable Source to Image distance (SID) of 110 cm to 180 cm allows optimized pulmonary and stitching examinations.

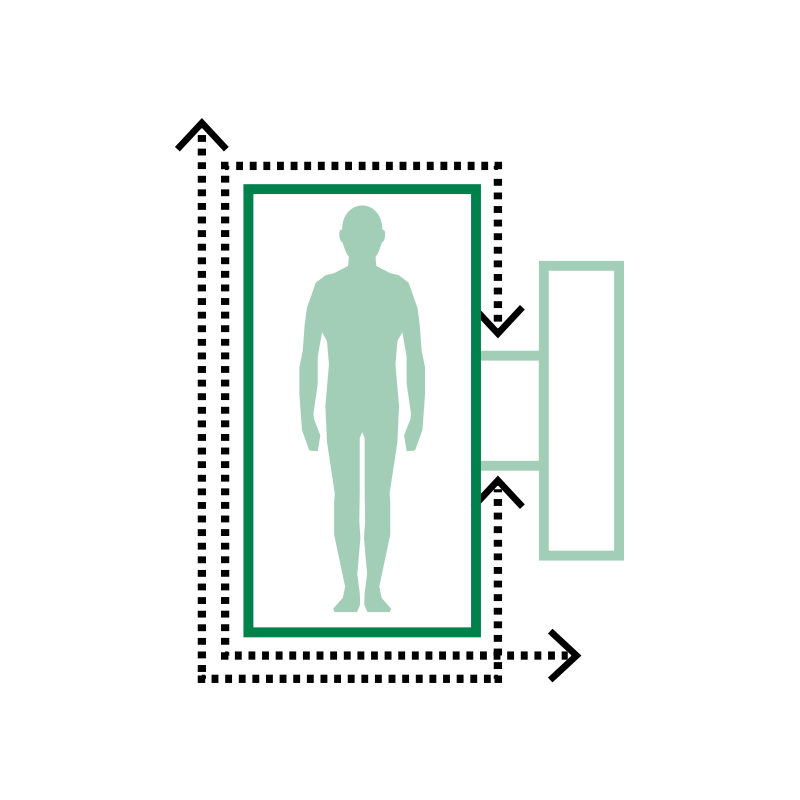

Optimal patient coverage
Patient coverage is greater than 257 cm (with the 4-way panel option)
201 cm (without the 4-way panel option).

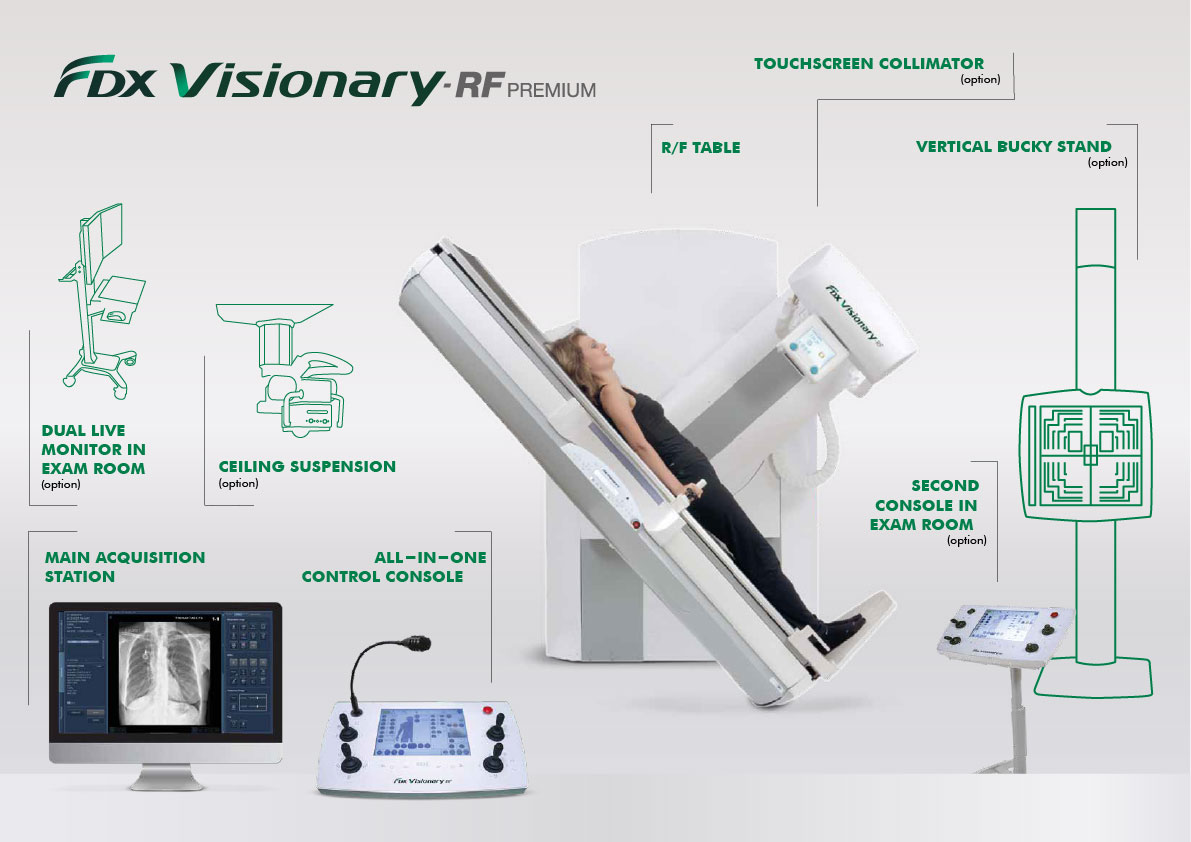

A COMPLETE SYSTEM WITH FLEXIBLE CONFIGURATIONS
COMFORT FOR MEDICAL OPERATOR

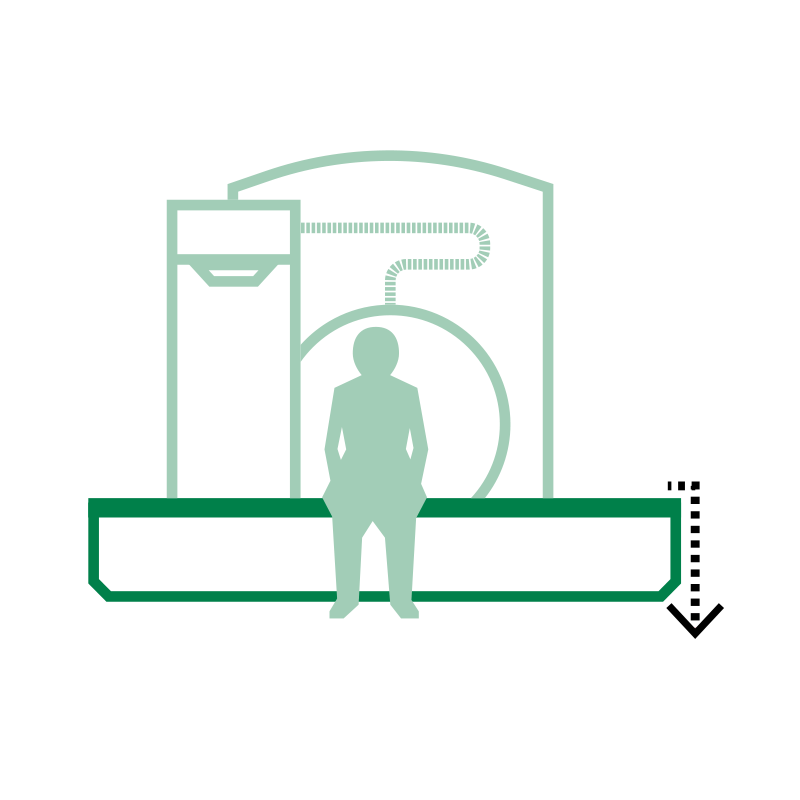

Table top lowers to 48 cm for easy patient loading
Easy reach positioning all around the table

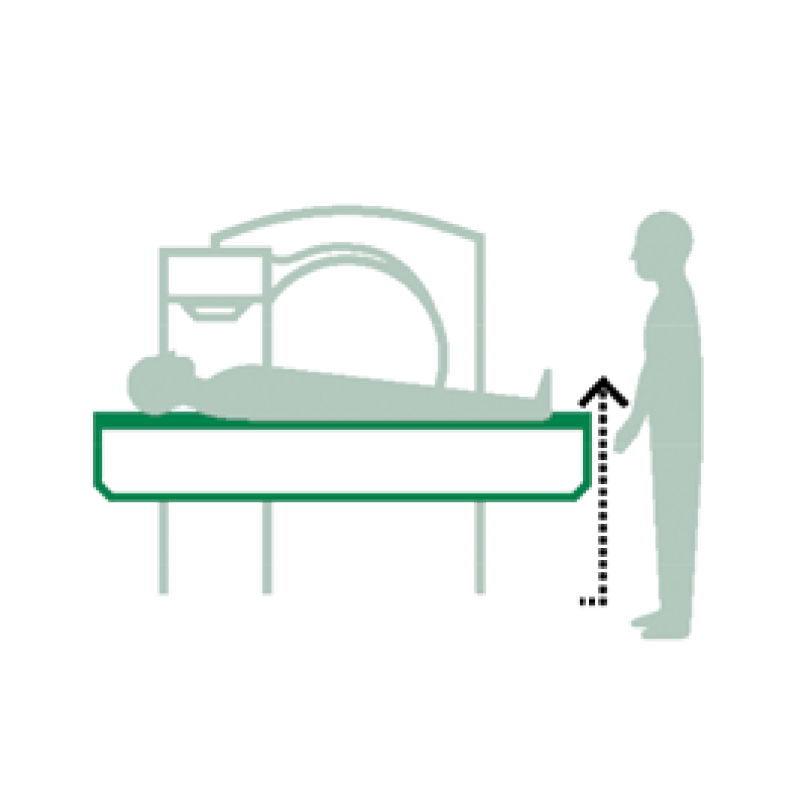

Comfortable, adjustable working height up to 130 cm

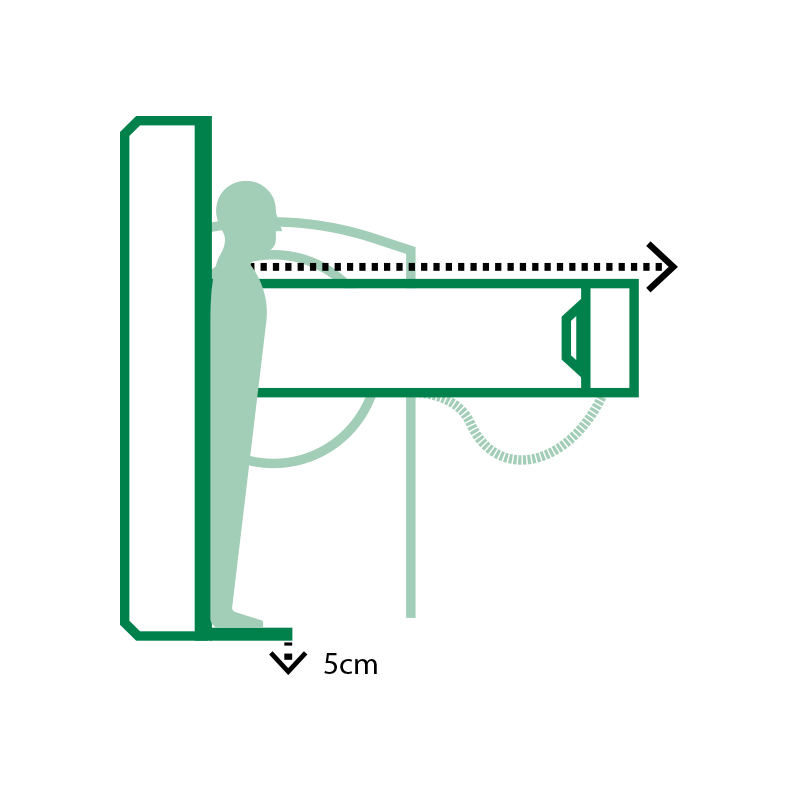

Source to image distance:
up to 180 cm
Patience coverage 201 cm (+/- 51 cm with longitudinal movement as an option)

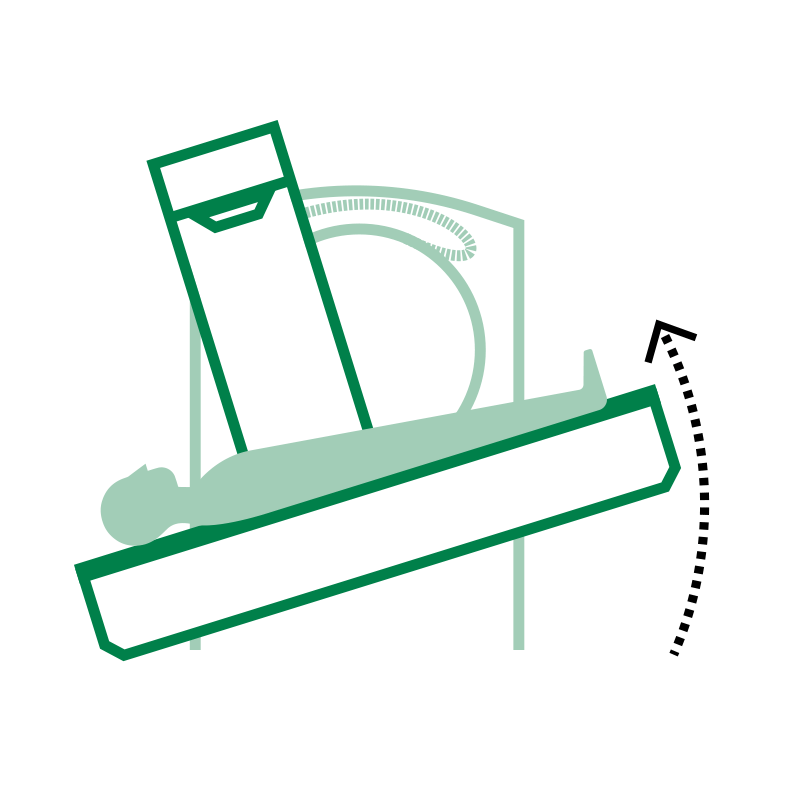

Programmable Trendelenburg position
ACCESSIBILITY FOR EVERY PATIENT

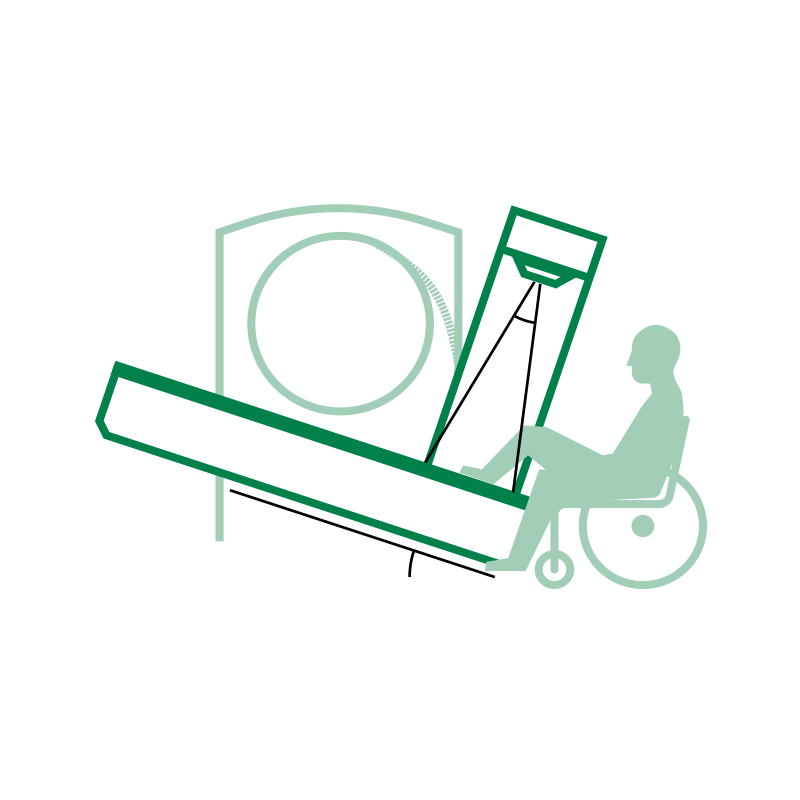

Easily adapts for patients with reduced mobility

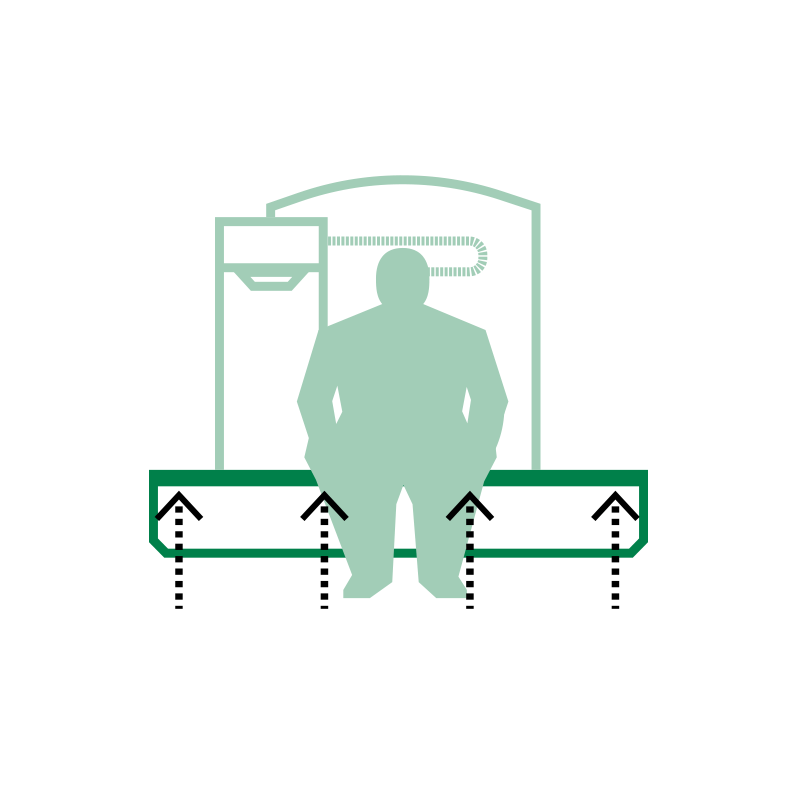

Supports patients weighing upto 265 kg without any limitation
Ambient lighting and Mp3 player for patient anxiety reduction
WORKING DAILY WITH OUR SYSTEMS
Designed to provide an optimal workflow and to adapt to different ways of working.

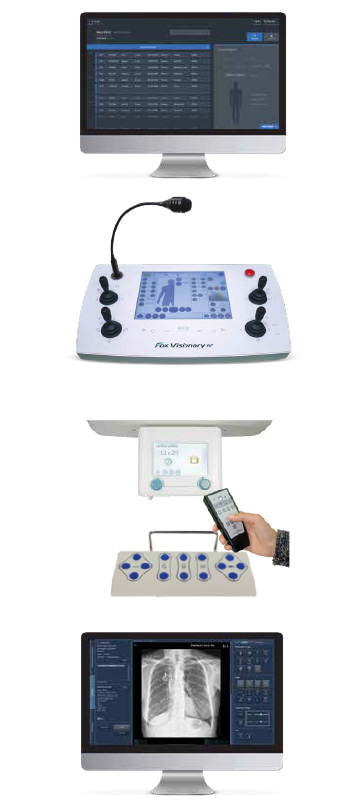

1. SELECTION OF PATIENT IN THE WORKLIST
Unlimited APRs can be configured and stored in the acquisition system. Simply select a patient from the Worklist to automatically prepare all examination parameters, including generator exposure factors, table position, additional filtration and collimation limits.
2. CONTROL CONSOLE WITH FULL AUTO POSITION
Once the parameters have been selected on the acquisition station, simply press the “MOVE” button to position the table for the examination (table tilt, SID, tube angle, collimation, etc.).
The settings are easily adjusted using the joysticks, and a camera integrated in the collimator allows the operator to accurately position the patient.
3. INNOVATIVE OPTIONS FOR ALL TYPES OF WORKFLOW
In addition to our control panel, innovative options like a handsfree positioning pedal, a touchscreen collimator and an infrared remote control, have been developed to provide flexible working options.
4. INSTANT ACCESS TO EXCEPTIONAL IMAGES
The image processing and post-processing tools are adapted to each procedure in order to give the best image by optimizing the dose.
The FDX Visionary RF-Premium is manufactured by DMS Imaging
