Ultraviolet light distribution measurement film

UVSCALE

NEW

This film visualizes UV light distribution by its color density.

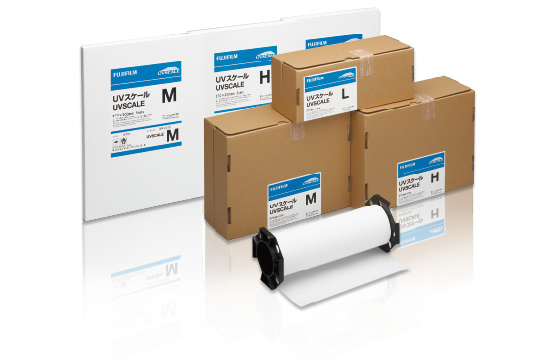

UVSCALE is a film that responds to UV light, and changes color depending on the amount of light it is exposed. This makes it easy to see UV light distribution. There are a roll type and a sheet type, with three types for different amounts of light.

Type  Classification Thickness Product size
Roll type
(width × length)
Sheet type
(height × width)
UVSCALE L Mono-sheet Type 0.1mm 270mm×5m 270mm×200mm(5 sheets)
UVSCALE M Two-sheet Type 0.1mm×2
UVSCALE H Two-sheet Type 0.1mm×2

UVSCALE L

Measurable lamp Effective light measurement range*1(mJ/cm2

High-pressure mercury lamp

4-200

Metal halide lamp

6-200

Low-pressure mercury lamp

20-3000

UV-LED lamp (365 nm)

200-6000

UVSCALE M

Measurable lamp Effective light measurement range*1(mJ/cm2

High-pressure mercury lamp

50-2000

Metal halide lamp

30-1000

UV-LED lamp (365 nm)

300-7000

UVSCALE H

Measurable lamp Effective light measurement range*1(mJ/cm2

High-pressure mercury lamp

800-40000

Metal halide lamp

700-20000

UV-LED lamp (365 nm)

5000-100000

  • * Applies to wavelengths in the 200 to 420 nm range
  • * This does not guarantee the absolute values of UV light values.
  • *1 The measurement ranges mentioned above are for when FUD-7010E is used. The amount of light range that can be visually checked is the density on standard color samples (0.30 to 0.75).

Management by converting colors into numeric values with analysis systems.

In this system, exclusive analysis software is used along with a special scanner. The system makes it possible to scan the color of UVSCALE, convert it into UV light values, analyze UV light distribution, and save them.
The separation accuracy of the densities can be improved so sections that cannot be judged visually can be analyzed. Managing numerical data can have the following advantages:Internal inspection standards can be set. Analysis results can be shared. Digitizing data makes it possible to compare it to past data.

Product name/Model

FUJIFILM UV LIGHT DISTRIBUTION MAPPING SYSTEM for UVSCALE
FUD-7010E Ver. 1.3

Components

Dedicated software (CD-ROM), Dedicated cover, Calibration sheet

Main functions

Analyzing UVSCALE images (measuring amount of accumulated light, displaying light distribution, saving data, CSV data export)

Measurable UV lamp

High-pressure mercury lamp, metal halide lamp, low-pressure mercury lamp, UV-LED (365 nm)

Applicable scanner

Epson A4 Scanner: Perfection V37/V370 , Perfection V60

Resolution

0.125mm(200dpi), 0.032mm(800dpi)

System requirements

Windows 7, 8, 8.1, 10 (32/64 bit), CPU 2 GHz or higher, Memory 2 GB or more, Disk space 2 GB or more,
Display 1024 x 768 60,000 colors or more

Please see the "Product page" for detailed information on functionality, usage, maintenance/repair service, etc. of FUD-7010E. You can also download trial versions and update to the latest version of the products from this web page.
