6000 System

NEW

Multi-LED Endoscope System.

The content on this page is intended to healthcare professionals and equivalents.

LCI & BLI, the new standard

Multi-Light Technology

This technology enables creation of images suitable for intended purposes through image processing combined with accurate control of intensity ratio between multiple lights.
It uses white light to depict subjects in natural colors as well as short wavelength light for higher contrast of fine vessels and structures of mucous membrane surface layers to create sharp images.
By adding signal processing to the images obtained through these lights, it is possible to provide not only white light images but also LCI/BLI images.

Energy-saving and long-lasting LED light source

When compared to standard Xenon light sources, the LED light source*1 consumes about a third of the energy and lasts longer. Life time of the LED light is expected for 6 years based on Fujifilm evaluation condition. Intensity of the light source qualifies that of 300W Xenon lamp.

  • *1 The warranty period is 1 year after date of purchase.

Five features to facilitate smooth examination

(1) Megapixel CMOS + HDTV output

High-definition images with quite low noise level are established by Megapixel CMOS sensor.
It allows superior visualization for Full HD display.

(2) G7 control portion

G7 control portion is developed from ergonomics point of view.
Scope has a rounded surface to fit the hand, and button layout makes intuitive operation possible.

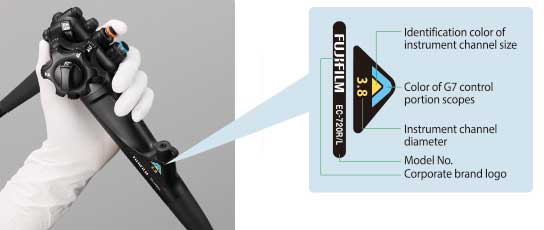

Labels attached to the control portion, which show the model number and instrument channel inlet size.

(3) One Step Connector with Contact-free Technology

Scopes can be connected to light source in just 1 step operation.
Scope cable connection is no longer required in setting up.
One Step Connector enhances efficiency of clinical workflow.
Conventional scopes can also be connetcted.

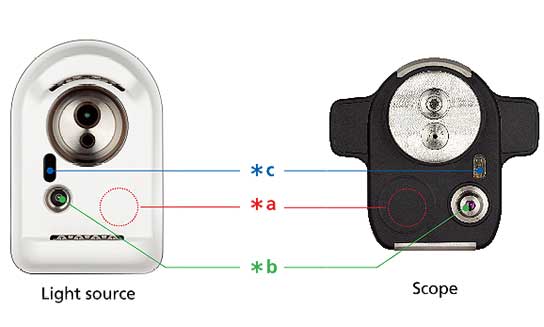

Contact-free  Technology
  • *a Power feed: Wireless electrical supply
  • *b Image transmission: High speed optical laser
  • *c Remote signal: infrared [IR] LED

This’s the generic name of below 3 points. It means connectors do not need to touch to transmit power and image data.
By this technology, durability and reliability of scopes is expected to improve.

(4) Insertion Performance

EC-720R/M,I,L
Advanced Force Transmission

The flexible portion is designed to transmit operator’s movements, pushing and rotating, to the distal end of endoscope.

Adaptive Bending

The end of flexible portion is soft, allowing the scope  to bend easily. Flexible portion is elastic, and easy to return to its straight shape.

(5) Wide 170° field of view

Wide 170°  field of view is available with EC-720R/M,I,L.
Even areas that are hard to observe such as the reverse side of folds could be observed and approached smoothly.
