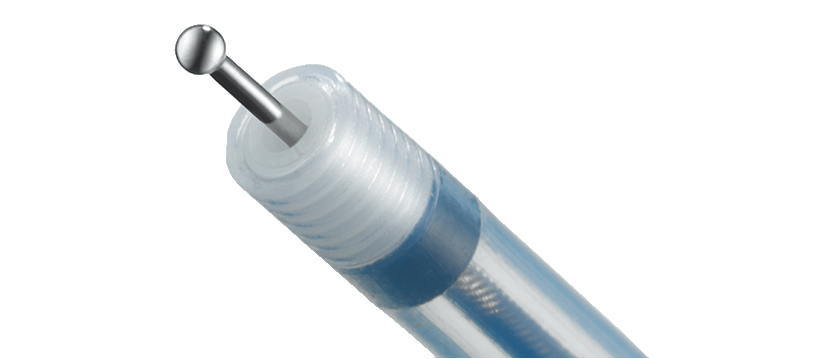

FlushKnife BTs
DK2620J
- Slitter portion length
-B15S- : 1.5mm
-B20S-: 2.0mm
-B25S-: 2.5mm
-B30S-: 3.0mm
- Sheath color
-B15S-: Green
-B20S-: Blue
-B25S-: Yellow
-B30S-: Black
- Working length*1
2,000mm
- Maximum diameter of insertion portion
2.7mm
- Instrument channel diameter of compatible endoscope*1
2.8mm or more
- Packaging unit
1/pack
DK2623JS
- Slitter portion length
-B15- : 1.5mm
-B20- : 2.0mm
- Sheath color
-B15- : Green
-B20- : Blue
- Working length*1
2,300mm
- Maximum diameter of insertion portion
2.7mm
- Instrument channel diameter of compatible endoscope*1
2.8mm or more
- Packaging unit
1/pack
- Product name: Diathermic Slitter
DK2620J (Identifer: -B15S- / -B20S- / -B25S- / -B30S-)
DK2623JS (Identifer: -B15- / -B20-)
- GMDN: 61875
- Generic name: Endoscopic electrosurgical electrode, monopolar, single-use
- * Do not re-use / Single patient use only
- *1 It is not guaranteed that the equipment chosen only based on the working length and the instrument channel diameter of the endoscope above is compatible.

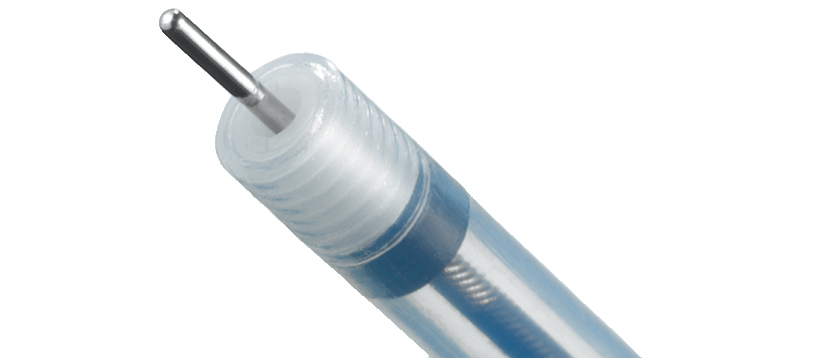

FlushKnife Ns
DK2620J
- Slitter portion length
-N10S- : 1.0mm
-N15S- : 1.5mm
-N20S- : 2.0mm
-N25S- : 2.5mm
-N30S- : 3.0mm
- Sheath color
-N10S- : White
-N15S- : Green
-N20S- : Blue
-N25S- : Yellow
-N30S- : Black
- Working length*1
2,000mm
- Maximum diameter of insertion portion
2.7mm
- Instrument channel diameter of compatible endoscope*1
2.8mm or more
- Packaging unit
1/pack
DK2623JS
- Slitter portion length
-N15- : 1.5mm
-N20- : 2.0mm
- Sheath color
-N15- : Green
-N20- : Blue
- Working length*1
2,300mm
- Maximum diameter of insertion portion
2.7mm
- Instrument channel diameter of compatible endoscope*1
2.8mm or more
- Packaging unit
1/pack
- Product name: Diathermic Slitter
DK2620J (Identifer: -N10S- / -N15S- / -N20S- / -N25S- / -N30S-)
DK2623JS (Identifer: -N15- / -N20-)
- GMDN: 61875
- Generic name: Endoscopic electrosurgical electrode, monopolar, single-use
- * Do not re-use / Single patient use only
- *1 It is not guaranteed that the equipment chosen only based on the working length and the instrument channel diameter of the endoscope above is compatible.
