The content on this page is intended to healthcare professionals and equivalents.

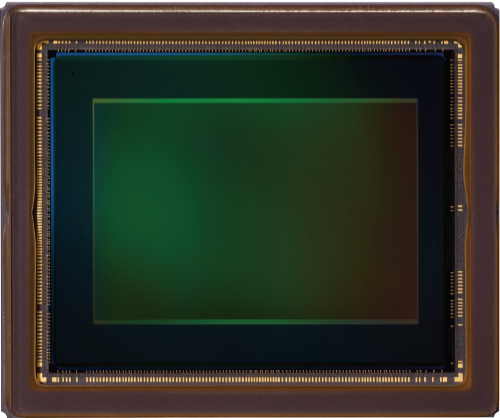

CMOS Image Sensor*1
EP-8000＋EG-860R
Compared to the conventional endoscopes*2, the sensors integrated in the 800 system endoscopes enable to image with less noise.
- *1 It may differ from actual image
- *2 760 series endoscopes
Since conventional generations, Fujifilm’s 'gradual stiffness' technology has been incorporated in their colonoscopes in which the stiffness changes over the length of the endoscope being softest at the distal end and hardest at the proximal end. This technology now expands towards the 800 system gastroscopes, aiming to improve insertion and operability in the upper gastrointestinal tract.
The elasticity of the insertion tube increased in all 800 system endoscopes
These features are expected to improve endoscopic operability not only colonoscope insertion, but also in the upper gastrointestinal tract, such as during duodenal insertion.
The insertion tube is designed to easily transmit push-pull and rotation movements by the endoscopist's hand to the distal end of the endoscope, reducing the torque load when performing rotary operations.
The end of the bending section is soft, allowing the endoscope to bend easily. At the same time, it is designed to return more easily to its straight form after passing through the tight curves of the colon.
The stiffness of the flexible portion of the 800 system colonoscope can be easily adjusted according to the endoscopist's preference by turning the flexible adjustment ring(levels 0-3).
We have also retained the insertion-related features that have been well received by customers since our conventional models.
In addition to scope performance, usability also improved.
The G7 grip is designed to have an easy and comfortable feel to enhance performance and reduce stress during clinical procedures.

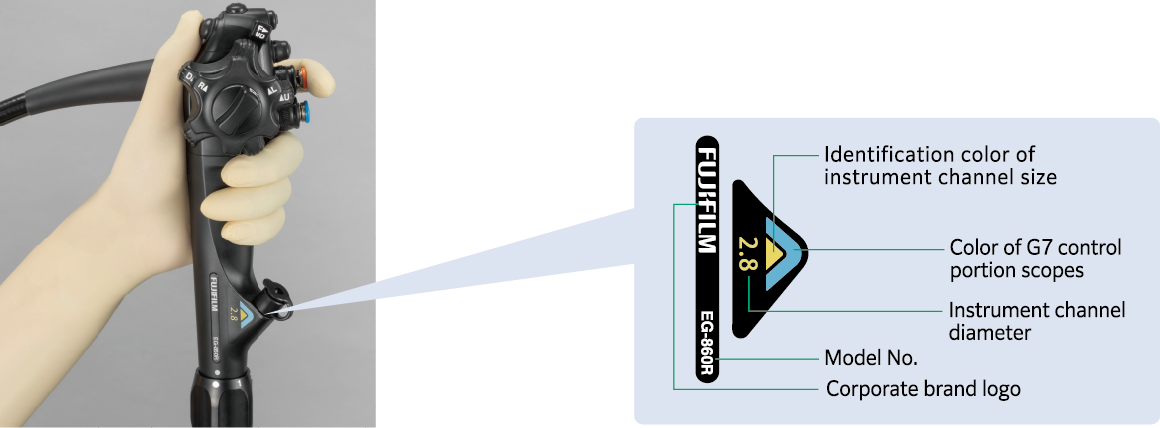

Each 800 system endoscopes displays the information required to choose compatible accessories, which helps to facilitate on-the-spot decision making.

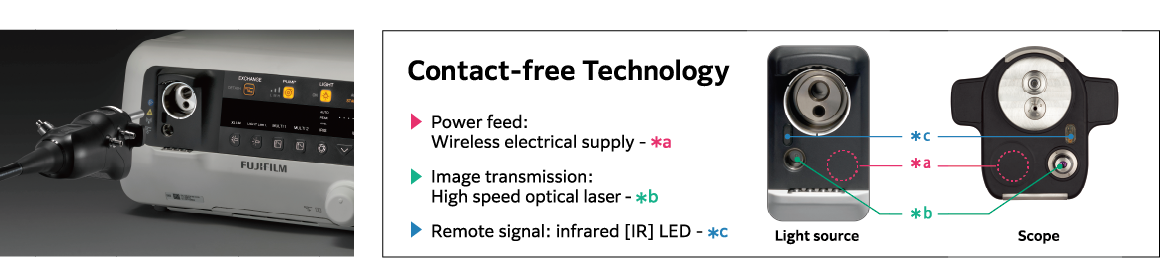

One-step connector to incorporate an integrated wireless power supply that provides high-speed transmission of data. The design helps to simplify the cleaning process and reduces the potential for accidental damage.

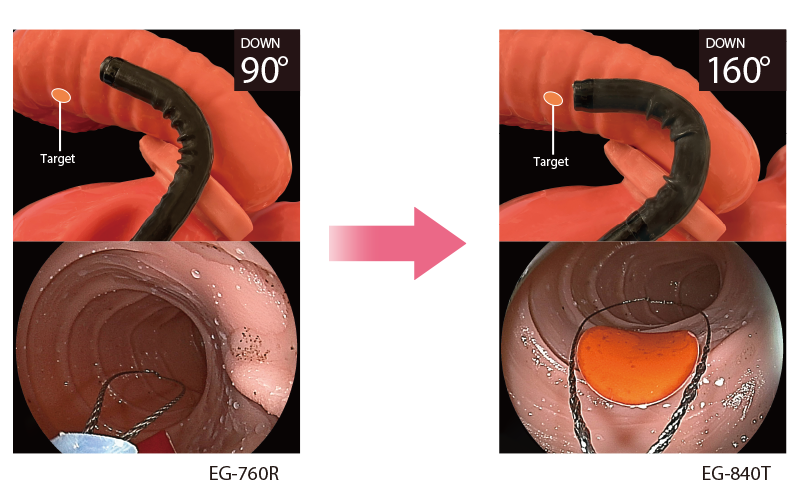

The down-angulation of EG-840T and EG-840TP increased to 160° from 90° while maintaining an up-angulation of 210° which can be found on all 700 series gastroscopes. It is expected to facilitate the observation and treatment of lesions and sites that have been difficult to approach in the past.

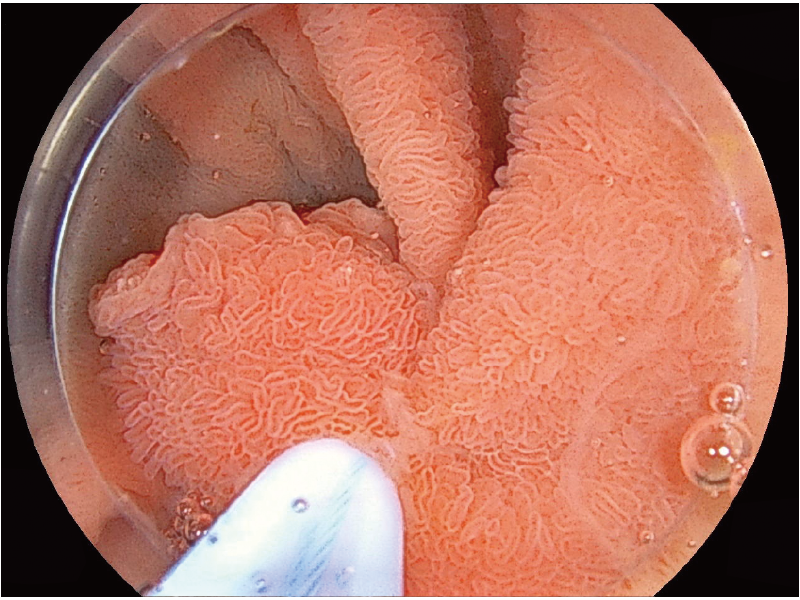

The 2mm close-up observation is expected to improve visibility during treatment.
*3
*3
White Light Imaging
BLI (Blue Light Imaging)
*3 The images are not strictly close observation at 2 mm

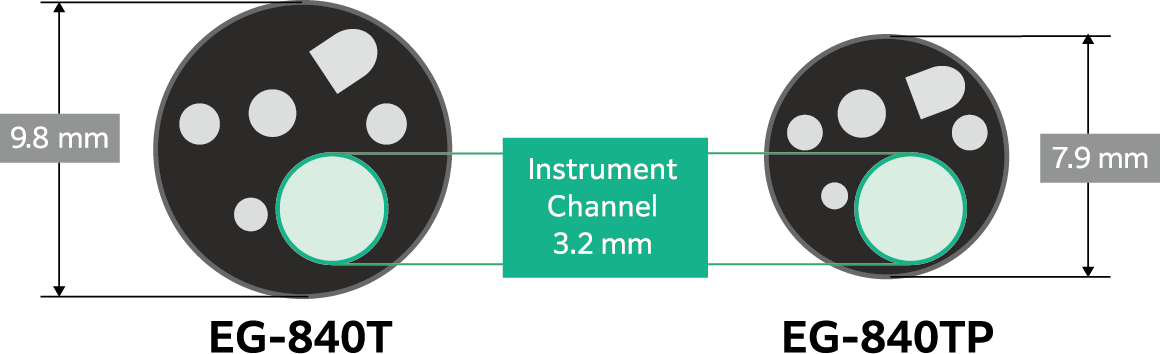

The EG-840TP has a slim insertion tube diameter of 7.9 mm and manages to incorporate an instrument channel of 3.2 mm, beyond a water jet function. This specification allows fine manipulations even in areas with narrow physical space. The EG-840T has the same instrument channel diameter of 3.2 mm but an insertion tube of 9.8 mm diameter. The insertion tube is stiffer compared of the EG-840TP's and therefore could be useful in areas with a larger space.
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP:210° / Down:120° / Right:100° / Left:100°
- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
8.9 mm
- Insertion tube diameter
8.9 mm
- Minimum instrument channel diameter
2.8 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP:210° / Down:90° / Right:100° / Left:100°
- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum instrument channel diameter
2.4 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP:210° / Down:160° / Right:100° / Left:100°
- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.8 mm
- Insertion tube diameter
9.8 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP:210° / Down:160° / Right:100° / Left:100°
- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
7.9 mm
- Insertion tube diameter
7.9 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
170°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP:180° / Down:180° / Right:160° / Left:160
- Working length
1,330 mm(M) / 1,690 mm(L)
- Total length
1,650 mm(M) / 2,010 mm(L)
- Distal end diameter
11.5 mm
- Insertion tube diameter
11.5 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
170°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP:180° / Down:180° / Right:160° / Left:160°
- Working length
1,330 mm(M) / 1,520 mm(I) / 1,690 mm(L)
- Total length
1,650 mm(M) / 1,840 mm(I) / 2,010 mm(L)
- Distal end diameter
12.8 mm
- Insertion tube diameter
12.8 mm
- Minimum instrument channel diameter
3.8 mm
- Product name: Video endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
