The content on this page is intended to healthcare professionals and equivalents.

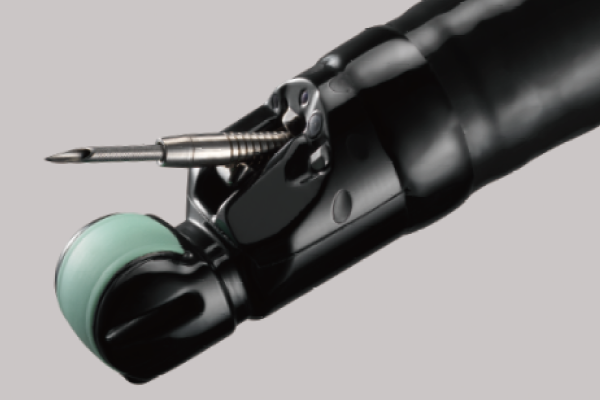

![[photo] Distal end of EG-740UT endoscope with functional parts](https://asset.fujifilm.com/www/mx/files/2025-10/715162ef0350cdd58841b3363d2ece2a/pic_ultrasonic-gastroscopes_01.png)

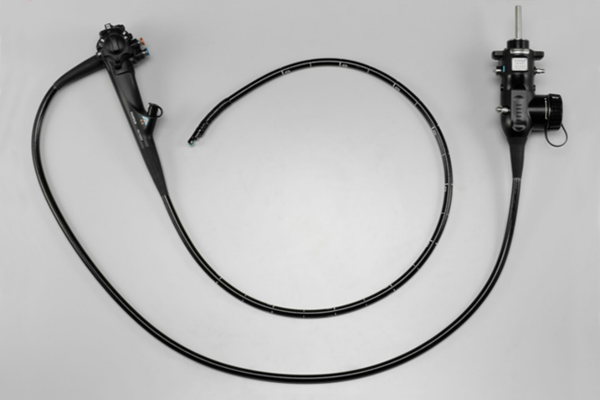

![[photo] EG-740UT endoscope insertion tube, attached to control portion, bent and wrapped into circle](https://asset.fujifilm.com/www/mx/files/2025-10/b0b35f020a2daaff8b4379bd6347898f/pic_ultrasonic-gastroscopes_02.png)
- Viewing direction
40° (Forward Oblique)
- Field of view
140°
- Observation range
3-100 mm
- Distal end diameter
14.5 mm
- Insertion tube diameter
12.6 mm
- Minimum diameter of instrument channel
4.0 mm
- Bending capability
UP 150° / DOWN 100°
RIGHT 100° / LEFT 100°- Working length
1,250 mm
- Total length
1,550 mm
- Scanning mode
Color Doppler, Power Doppler, Pulse Doppler, B-mode, M-mode
- Scanning method
Electronic convex scanning method
- Scanning angle
180° (Combination with SU-1)
- Frequency
5 MHz / 7.5 MHz / 10 MHz / 12 MHz
- Product : Ultrasonic Endoscope
- GMDN: 36951
- Generic Name: Flexible ultrasound gastroduodenoscope

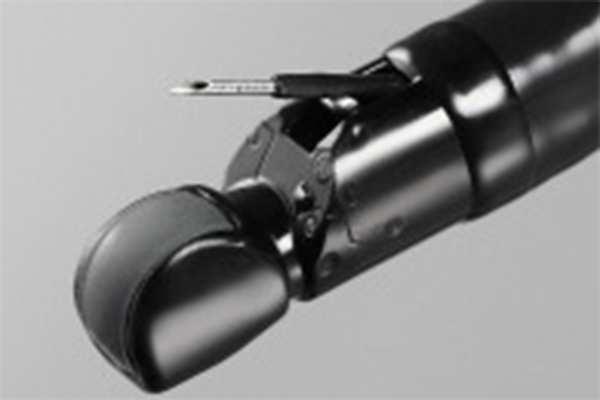

![[photo] Distal end of EG-580UT endoscope with functional parts](https://asset.fujifilm.com/www/mx/files/2025-10/b3c729ebd19ba6a385cde54e55307a08/pic_ultrasonic-gastroscopes_03.png)

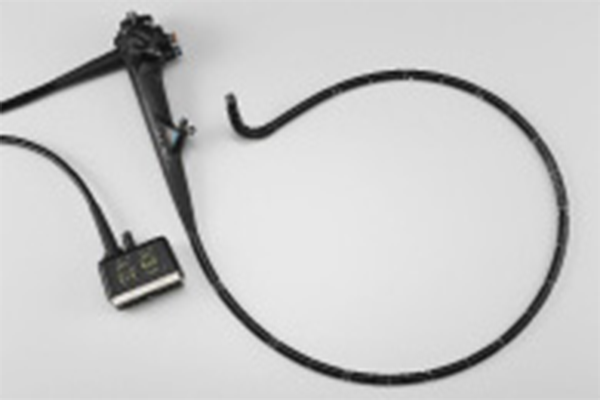

![[photo] EG-580UT endoscope insertion tube, attached to control portion, bent and wrapped into circle](https://asset.fujifilm.com/www/mx/files/2025-10/8a3b6ed40944eb7224434cd41b642072/pic_ultrasonic-gastroscopes_04.png)
- Viewing direction
40° (Forward Oblique)
- Field of view
140°
- Observation range
3-100 mm
- Distal end diameter
13.9 mm
- Insertion tube diameter
12.4 mm
- Minimum diameter of instrument channel
3.8 mm
- Bending capability
UP 150° / DOWN 150°
RIGHT 120° / LEFT 120°- Working length
1,250 mm
- Total length
1,550 mm
- Scanning mode
Color Doppler, Power Doppler, Pulse Doppler, B-mode, M-mode
- Scanning method
Electronic convex scanning method
- Scanning angle
150° (Combination with SU-1)
- Frequency
5 MHz / 7.5 MHz / 10 MHz / 12 MHz
- Product : Ultrasonic Endoscope
- GMDN: 36951
- Generic Name: Flexible ultrasound gastroduodenoscope

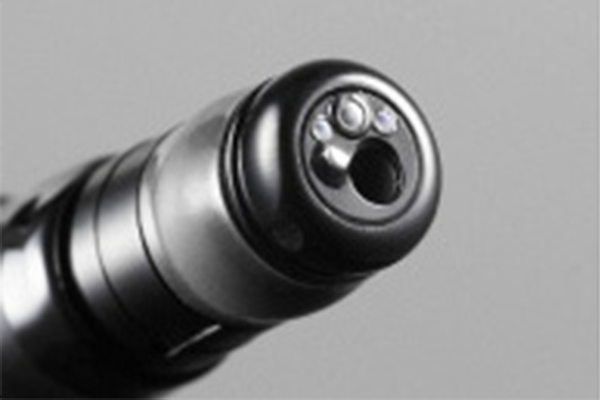

![[photo] Distal end of EG-580UR endoscope with functional parts](https://asset.fujifilm.com/www/mx/files/2025-10/ee20c2f550c59d9bce6dbadaa6f9a50d/pic_ultrasonic-gastroscopes_05.png)

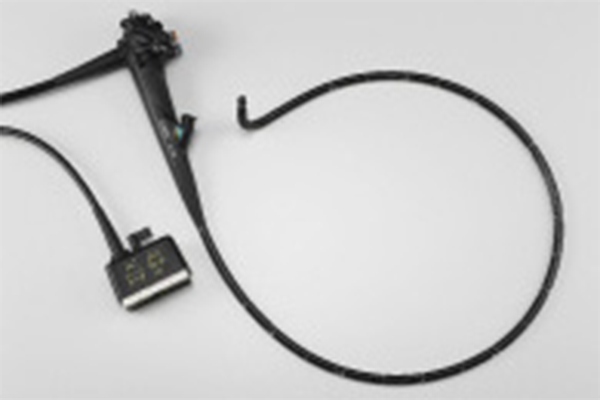

![[photo] EG-580UR endoscope insertion tube, attached to control portion, bent and wrapped into circle](https://asset.fujifilm.com/www/mx/files/2025-10/b9b6756d4a10bae716a69f94ec737eee/pic_ultrasonic-gastroscopes_06.png)
- Viewing direction
0°
- Field of view
140°
- Observation range
3-100 mm
- Distal end diameter
11.4 mm
- Insertion tube diameter
11.5 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 190° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,250 mm
- Total length
1,550 mm
- Scanning mode
Color Doppler, Power Doppler, Pulse Doppler, B-mode, M-mode
- Scanning method
Electronic radial scanning method
- Scanning angle
360° (Combination with SU-1)
- Frequency
5 MHz / 7.5 MHz / 10 MHz / 12 MHz
- Product : Ultrasonic Endoscope
- GMDN: 36951
- Generic Name: Flexible ultrasound gastroduodenoscope
