LB150 Series

NEW

Fujinon's world-class large binoculars provide powerful performance at night with outstanding resolution and light gathering ability.

[photo] Three flat, glass discs fanned out on top of each other in a straight line on a dark, flat surface

The large aperture objective lenses ensure excellent visibility at dusk or night. High-quality EBC multi-coating for high resolution and sharp image throughout the field of view.

[photo] Point-of-view from the front of a white sailboat looking out into the blue ocean and clear sky

In addition to their airtight, waterproof structure, these binoculars are corrosion resistant, making them durable enough to withstand temperatures ranging from -20℃ to +50℃.

Lineups

25 × 150 MT-SX

  • The large aperture 150mm objective lenses ensure excellent visibility at dusk or night.
  • High-quality EBC multi-coating for high resolution and sharp image throughout the field of view.
  • In addition to their airtight, waterproof structure, these binoculars are corrosion resistant, making them durable enough to withstand temperatures ranging from -20℃ to +50℃.
  • Fujinon recommends the use of dedicated mount and tripod.
[photo] 25 × 150 MT-SX binoculars

Specifications

Magnification

25

Objective diameter (mm)

150

Field of view (°)

2.7

Apparent field of view (°) *1

61

Field of view at 1000m (m)

47

Exit pupil

6

Twilight factor

36

Eye relief (mm)

18.6

Minimum Focus Distance (m) *2

125

Height (mm)

962

Width (mm)

365

Depth (mm)

525

Weight (g)
(w/o Battery)

18,500

Adustment range for interpupillary distance (mm)

60-70

Dioptric adjustment range (±mm)

−7 - +3

Focus type

IF

Water resistant*3

2m-5min

Battery

-

Operationg temperature

−20℃ - +50℃

25 × 150 ED-SX(made to order)

  • The large aperture 150mm objective lenses ensure excellent visibility at dusk or night.
  • High-quality EBC multi-coating for high resolution and sharp image throughout the field of view.
  • In addition to their airtight, waterproof structure, these binoculars are corrosion resistant, making them durable enough to withstand temperatures ranging from -20℃ to +50℃.
  • The 25x150ED-SX, 40x150ED-SX and 25x150EM-SX have special ED lenses to reduce color aberration for a clear picture even at high magnification.
  •  Fujinon recommends the use of dedicated mount and tripod.
[photo] 25 × 150 ED-SX binoculars (made to order)

Specifications

Magnification

25

Objective diameter (mm)

150

Field of view (°)

2.7

Apparent field of view (°) *1

61

Field of view at 1000m (m)

47

Exit pupil

6

Twilight factor

36

Eye relief (mm)

18.6

Minimum Focus Distance (m) *2

125

Height (mm)

962

Width (mm)

365

Depth (mm)

525

Weight (g)
(w/o Battery)

18,500

Adustment range for interpupillary distance (mm)

60-70

Dioptric adjustment range (±mm)

−7 - +3

Focus type

IF

Water resistant*3

2m-5min

Battery

-

Operationg temperature

−20℃ - +50℃

25 × 150 EM-SX(made to order)

  • The large aperture 150mm objective lenses ensure excellent visibility at dusk or night.
  • High-quality EBC multi-coating for high resolution and sharp image throughout the field of view.
  • In addition to their airtight, waterproof structure, these binoculars are corrosion resistant, making them durable enough to withstand temperatures ranging from -20℃ to +50℃.
  • The 25x150ED-SX, 40x150ED-SX and 25x150EM-SX have special ED lenses to reduce color aberration for a clear picture even at high magnification.
  • Fujinon recommends the use of dedicated mount and tripod.

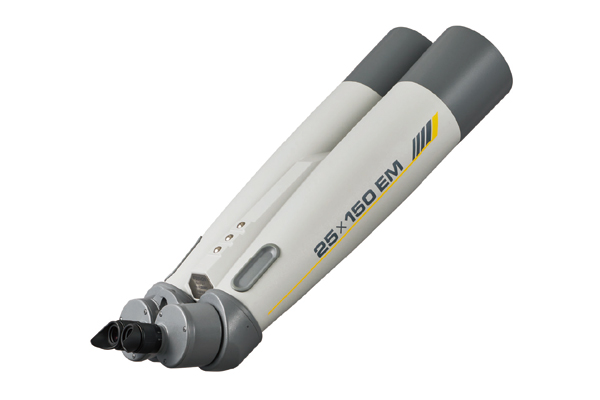

[photo] 25 × 150 EM-SX binoculars (made to order)

Specifications

Magnification

25

Objective diameter (mm)

150

Field of view (°)

2.7

Apparent field of view (°) *1

61

Field of view at 1000m (m)

47

Exit pupil

6

Twilight factor

36

Eye relief (mm)

18.6

Minimum Focus Distance (m) *2

125

Height (mm)

964

Width (mm)

365

Depth (mm)

545

Weight (g)
(w/o Battery)

19,500

Adustment range for interpupillary distance (mm)

60-70

Dioptric adjustment range (mm)

−7 - +3

Focus type

IF

Water resistant*3

2m-5min

Battery

-

Operationg temperature

−20℃ - +50℃

40 × 150 ED-SX(made to order)

  • The large aperture 150mm objective lenses ensure excellent visibility at dusk or night.
  • High-quality EBC multi-coating for high resolution and sharp image throughout the field of view.
  • In addition to their airtight, waterproof structure, these binoculars are corrosion resistant, making them durable enough to withstand temperatures ranging from -20℃ to +50℃.
  • The 25x150ED-SX, 40x150ED-SX and 25x150EM-SX have special ED lenses to reduce color aberration for a clear picture even at high magnification.
  • Fujinon recommends the use of dedicated mount and tripod.
[photo] 40 × 150 ED-SX binoculars (made to order)

Specifications

Magnification

40

Objective diameter (mm)

150

Field of view (°)

1.7

Apparent field of view (°) *1

61.4

Field of view at 1000m (m)

30

Exit pupil

3.8

Twilight factor

14.1

Eye relief (mm)

15

Minimum Focus Distance (m) *2

320

Height (mm)

946

Width (mm)

365

Depth (mm)

525

Weight (g)
(w/o Battery)

18,500

Adustment range for interpupillary distance (mm)

60-70

Dioptric adjustment range (±mm)

−7 - +3

Focus type

IF

Water resistant*3

2m-5min

Battery

-

Operationg temperature

−20℃ - +50℃

15 × 80 MT-SX

  • High-quality EBC multi-coating for high resolution and sharp image throughout the field of view.
  • In addition to their airtight, waterproof structure, these binoculars are corrosion resistant, making them durable enough to withstand temperatures ranging from -20℃ to +50℃.
  • Fujinon recommends the use of dedicated mount and tripod.
  • Bundled with a case.
[photo] 15 × 80 MT-SX binoculars

Specifications

Magnification

15

Objective diameter (mm)

80

Field of view (°)

4

Apparent field of view (°) *1

55.3

Field of view at 1000m (m)

70

Exit pupil

5.3

Twilight factor

28.4

Eye relief (mm)

15.7

Minimum Focus Distance (m) *2

45

Height (mm)

510

Width (mm)

225

Depth (mm)

455

Weight (g)
(w/o Battery)

7,060

Adustment range for interpupillary distance (mm)

58-72

Dioptric adjustment range (±mm)

−4 - +2

Focus type

IF

Water resistant*3

2m-5min

Battery

-

Operationg temperature

−20℃ - +50℃

  • *1 Apparent field of view based on ISO14132-1:2002
  • *2 MOD may differ depends on the viewer's sight in case of Indivisual focus.
  • *3 Do not mean it can be used in water.

Bundled items: Objective lens cap and winged eyecup.

  • * 15 x 80 MT-SX bundled with a case.
