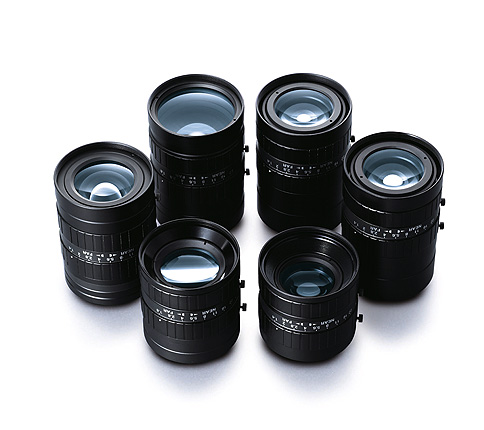

High resolution lenses
FUJINON CF-HA series is compatible with large 1" image sensor cameras to realize high resolution up to 1.5 megapixels (7.4 pixel pitch).
CF-HA series specification sheet
| Model | Compatible format sizes | Focal length (mm) |
|||||||
| 4/3 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | ||
| CF12.5HA-1 | － | － | ● | ● | ● | ● | ● | ● | 12.5 |
| CF16HA-1 | － | － | ● | ● | ● | ● | ● | ● | 16 |
| CF25HA-1 | － | － | ● | ● | ● | ● | ● | ● | 25 |
| CF35HA-1 | － | － | ● | ● | ● | ● | ● | ● | 35 |
| CF50HA-1 | － | － | ● | ● | ● | ● | ● | ● | 50 |
| CF75HA-1 | － | － | ● | ● | ● | ● | ● | ● | 75 |
● Compatible sensor size (std.): Ideal size to maximize the target resolution.
Main features

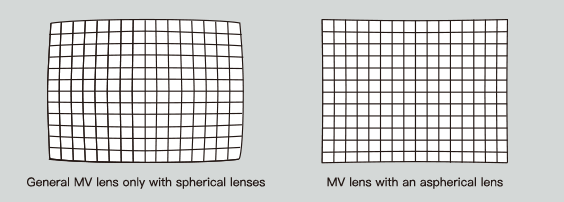

FUJINON CF-HA series thoroughly minimizes distortion which causes problems in applications requiring high accuracy such as dimension measurement.
- * Simulated image
High performance in close-up shooting
The rear focusing method*1 enables high performance even in close-up shooting.
- *1 CF12.5HA-1 and CF16HA-1
Low F-number
The low F-number up to F1.4 ensures a clear image even in low light situations.
Enough peripheral light amount
Enough light is captured even at the edges of the image, which contributes to stable inspection accuracy.
Lineup
| Focal length [mm] | 12.5 |
| Iris range (F. no) | F1.4-F22 |
| Angle of view | 53.1°x 41.2° (1") |
| Working Distanc*2 (mm) | ∞‐100 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Filter thread [mm] | M49 x 0.75 |
| Mount | C-mount |
| Weight (approx.) [g] | 290 |
| Sensor size (max.) | 1" |
| TV distortion [%] | 0.86 |
| Dimension [mm] | Φ51×68.5 |
| Focal length [mm] | 16 |
| Iris range (F. no) | F1.4-F22 |
| Angle of view | 42.6°x 32.8° (1") |
| Working Distance*2 (mm) | ∞‐100 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Filter thread [mm] | M49 x 0.75 |
| Mount | C-mount |
| Weight (approx.) [g] | 280 |
| Sensor size (max.) | 1" |
| TV distortion [%] | 0.79 |
| Dimension [mm] | Φ51×70.5 |
| Focal length [mm] | 25 |
| Iris range (F. no) | F1.4-F22 |
| Angle of view | 29.9°x 22.7 (1") |
| Working Distance*2 (mm) | ∞-100 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Filter thread [mm] | M49 x 0.75 |
| Mount | C-mount |
| Weight (approx.) [g] | 310 |
| Sensor size (max.) | 1" |
| TV distortion [%] | 0.36 |
| Dimension [mm] | Φ51×75.5 |
| Focal length [mm] | 35 |
| Iris range (F. no) | F1.4-F22 |
| Angle of view | 20.3°x 15.3° (1") |
| Working Distance*2 (mm) | ∞-200 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Filter thread [mm] | M49 x 0.75 |
| Mount | C-mount |
| Weight (approx.) [g] | 180 |
| Sensor size (max.) | 1" |
| TV distortion [%] | 0.18 |
| Dimension [mm] | Φ51×48.5 |
| Focal length [mm] | 50 |
| Iris range (F. no) | F1.8-F22 |
| Angle of view | 14.1°x 10.6° (1") |
| Working Distance*2 (mm) | ∞-400 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Filter thread [mm] | M49 x 0.75 |
| Mount | C-mount |
| Weight (approx.) [g] | 235 |
| Sensor size (max.) | 1" |
| TV distortion [%] | 0.20 |
| Dimension [mm] | Φ51×55.5 |
- * From front of lens barrel
| Focal length [mm] | 75 |
| Iris range (F. no) | F1.8-F22 |
| Angle of view | 9.8°x 7.3° (1") |
| Working Distance*2 (mm) | ∞-900 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Filter thread [mm] | M49 x 0.75 |
| Mount | C-mount |
| Weight (approx.) [g] | 300 |
| Sensor size (max.) | 1" |
| TV distortion [%] | 0.01 |
| Dimension [mm] | Φ51×76 |
