[photo] Eluxeo 7000 endoscope system

7000 System

NEW

Endoscope system with diagnosis and usability contains the light source which features high-intensity 4 LED lights.

This webpage content is intended for Healthcare Professionals only, not for general public.

For Better Diagnosis

[image] White Light, Blue Light Imaging, Linked Color Imaging modes

Multi-Light Technology

This technology enables creation of images suitable for intended purposes through image processing combined with accurate control of intensity ratio between multiple lights. 7000 system employs four types of high-intensity LEDs: Blue LED creating short wavelength light and Red/Green/Blue LEDs combined into white light. Multi-light technology performs signal processing for images obtained by white light and short wavelength light to produce LCI and BLI images.

Colon
[photo] Endoscope images of colon in White Light mode and Blue Light mode
Esophagus
[photo] Endoscope image of Esophagus in BLI mode

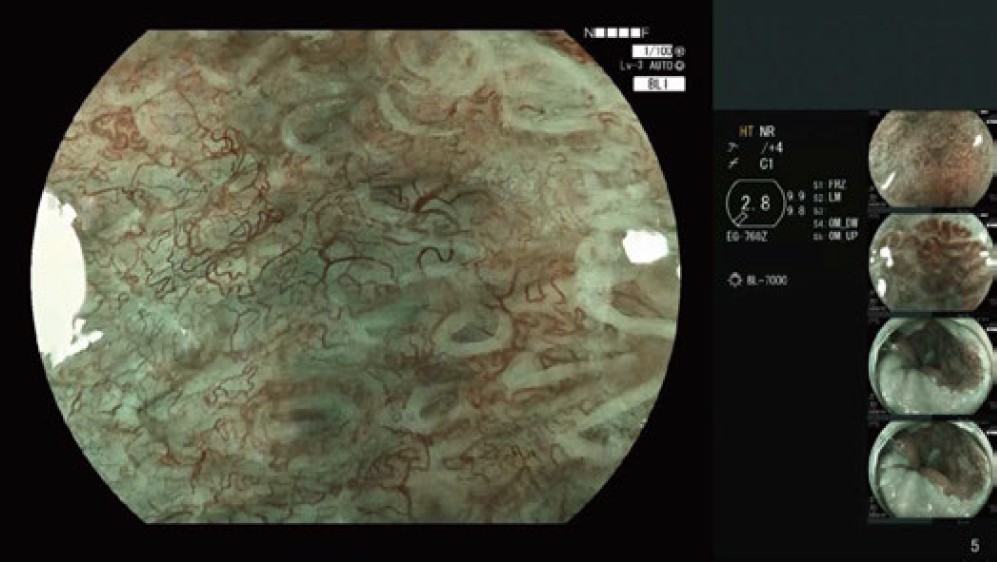

Colon
[photo] Endoscope image of colon in BLI mode

High contrast images suitable for observing microvascular and microsurface pattern are provided. Magnifying endoscopy is exellent with BLI.

Stomach
[photo] Endoscope images of stomach in White Light mode and LCI mode
Esophagus
[photo] Endoscope images of esophagus in White Light mode and LCI mode

LCI would be helpful for detection with surface pattern and vessels. Slight color difference is visualized with natural tone, using “Red” component.

White Light

Esophagus
[photo] Endoscope image of esophagus in White Light mode
Stomach
[photo] Endoscope image of stomach in White Light mode

Bright, sharp, and stereoscopic images are accomplished with similar color tones to Xenon light source. Mega-pixel CMOS enables high-definition and quite low-level noise compatible.

Observation modes can be switched by scope button.

[image] White Light mode can be switched to BLI-Bright mode and to LCI mode
[photo] Buttons on 7000 system control panel

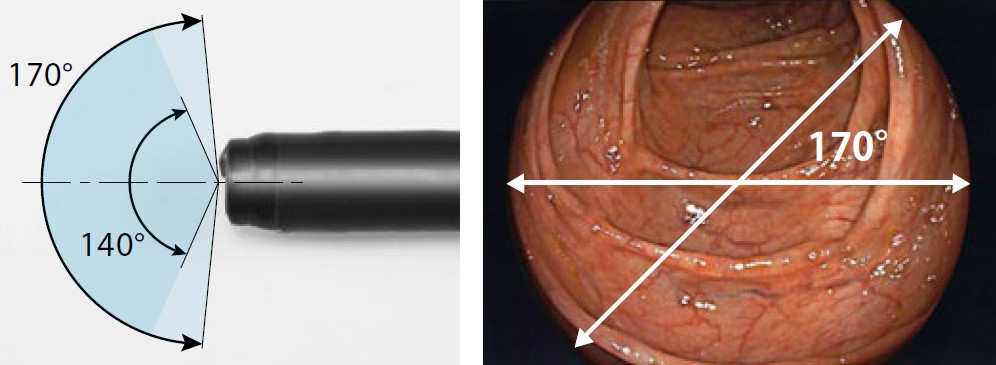

Wide 170°field of view

EC-760R-V/M, I, L, EC-760P-V/M, L and EC-760S-V/L

Megapixel CMOS + HDTV output

EG-760R, EG-760Z, EG-760CT, EC-760R-V/M, I, L, EC-760ZP-V/M, L, EC-760P-V/M, L, EC-760S-V/L and EC-760Z-V/M, L

Multi Zoom

EG-760Z, EC-760ZP-V/M, L and EC-760Z-V/M, L

Zoom function
[image] Multi-zoom magnification chart with magnification modes and zoom function

With Continuous mode, Step Zoom mode of “2 Step”, “3 Step” and “5 Step” are available. In this modes, images can be magnified in stages by simple press of button.

[photo] Gloved hand pressing zoom button on endoscope control portion
Magnification Images
[photo] Low, Middle, and Maximum magnification of endoscopic image of soft tissue

For Better Usability

Flexibility Adjustment Mechanism

EC-760R-V/M, I, L, EC-760ZP-V/M, L, EC-760P-V/M, L, EC-760S-V/L and EC-760Z-V/M, L

[photo] Flexibility adjustment ring on 7000 system, ranging from flexible (0) to rigid (3)

Index on flexibility adjustment ring

[image] Insertion tube going from rigid to flexible

The flexibility of insertion tube can be adjusted with adjustment ring.

Advanced Force Transmission

EC-760R-V/M, I, L, EC-760ZP-V/M, L, EC-760P-V/M, L, EC-740T/M, L, EC-760S-V/L and EC-760Z-V/M, L

The flexible portion is designed to transmit operator’s movements, pushing and rotating, to the distal end of endoscope.

[image] Flexible portion of insertion tube inside large intestine and passing sigmoid colon

Passing the sigmoid colon

[image] Deep insertion of insertion tube inside large intestine

In deep insertion

Adaptive Bending

EC-760R-V/M, I, L, EC-760ZP-V/M, L, EC-760P-V/M, L, EC-740T/M, L, EC-760S-V/L and EC-760Z-V/M, L

[image] Flexible portion of insertion tube bending easily inside colon

Bending easily

[image] Flexible portion of insertion tube bending easily inside colon

Returning to its straight shape easily

The end of flexible portion is soft, allowing the scope to bend easily. Flexible portion is elastic, and easy to return to its straight shape.

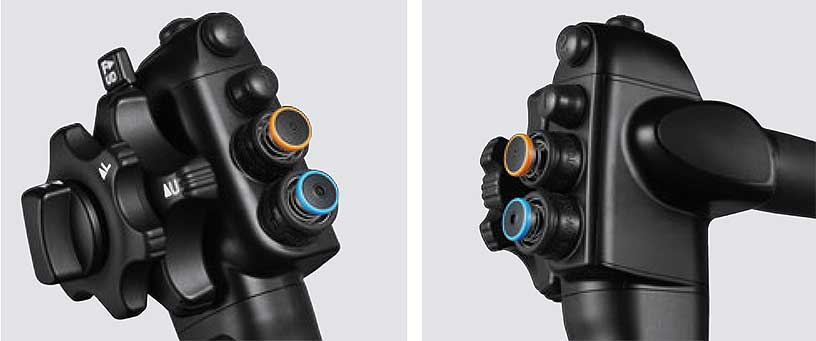

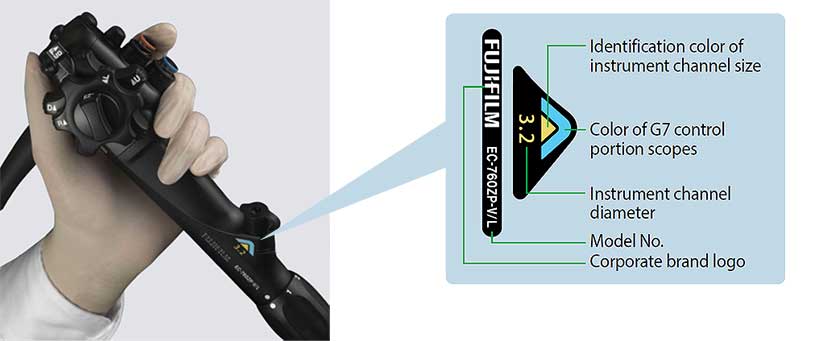

G7 control portion

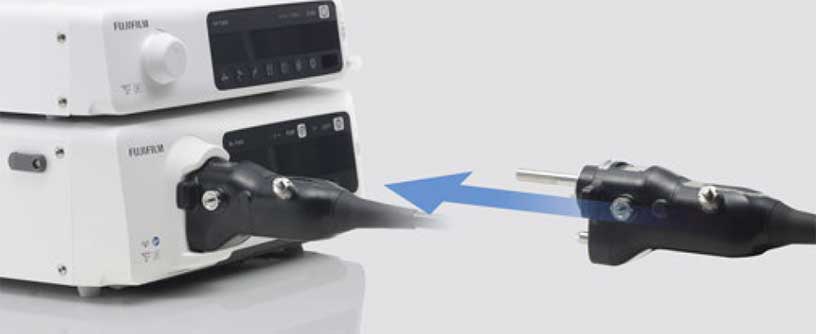

One Step Connector with Contact-free Technology

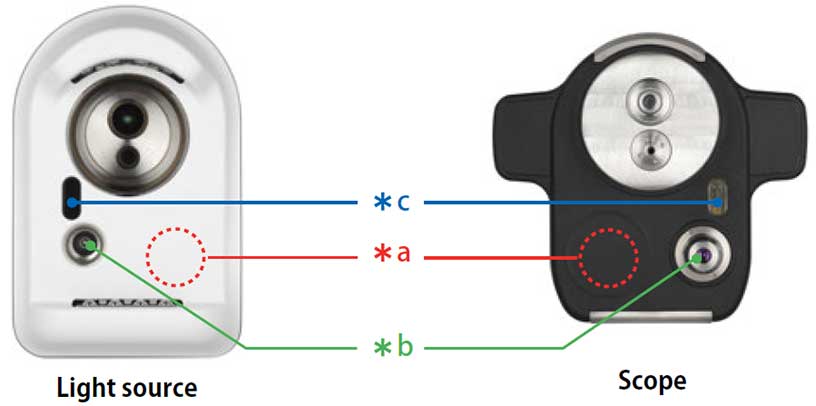

Contact-free Technology

Wide compatibility to conventional endoscope

Compatible with 700 series, 600 / 500 series endoscopes

[photo] 7000 system with 700 Series endoscope plugged into socket and 7000 system with Conventional 600/500 Series endoscope plugged into socket
  BLI BLI-bright LCI WLI FICE
700 Series
600 / 500 Series



600/500 endoscopes can be used with White light and FICE mode.

  • * FICE : Flexible spectral Imaging Color Enhancement

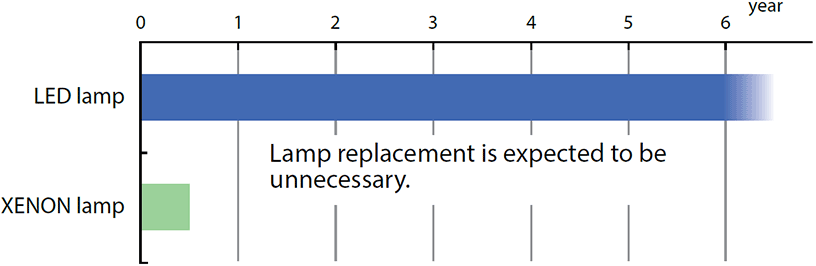

Low-energy, long-lasting and bright light source

For Various Needs

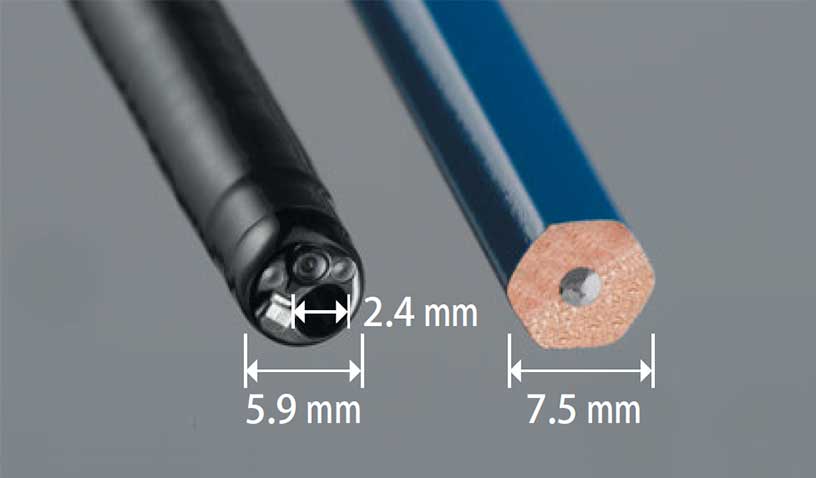

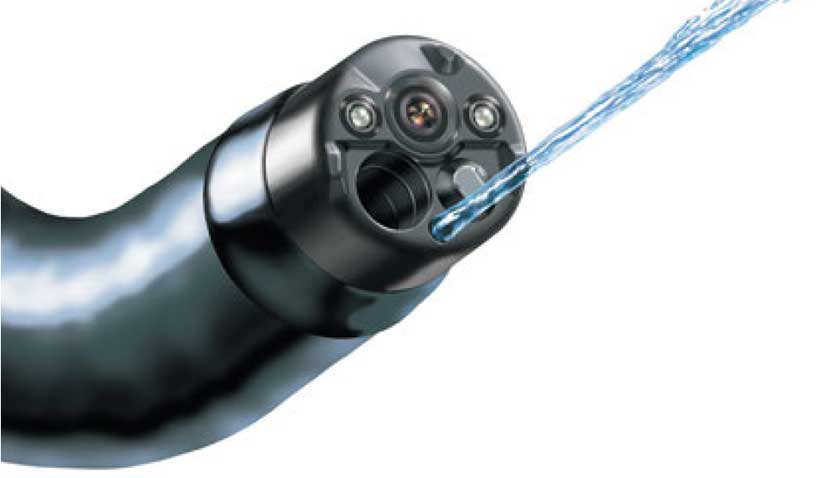

Small diameter scopes

Slim scopes offering various functions necessary for examinations, with a potential to alleviate patients’ discomfort

EG-740N

Upper G.I. tract scope

EC-760P-V/M, L

Lower G.I. tract scope

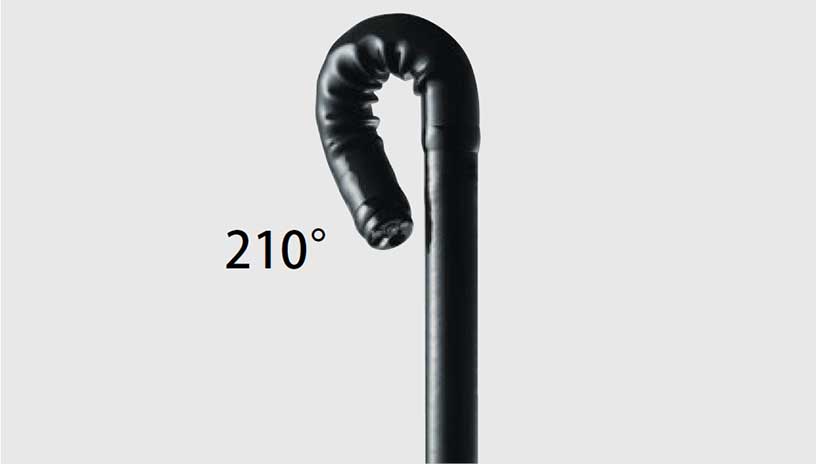

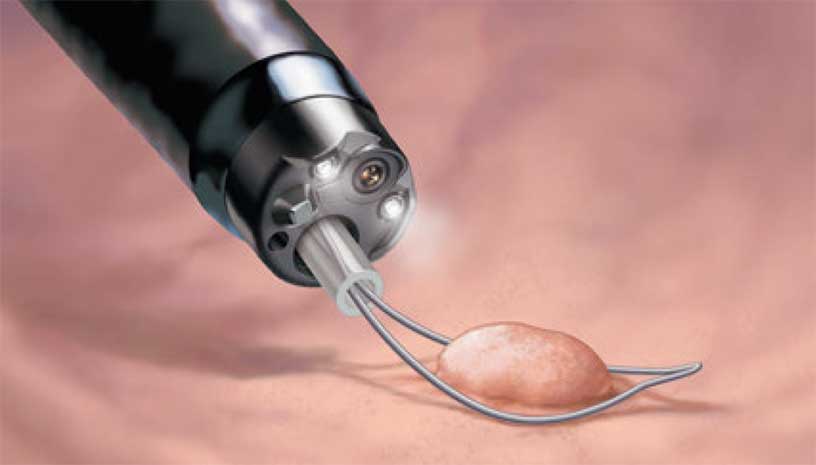

Scopes for treatment

Accommodating various treatments with wide movement range

EG-760CT

Upper G.I. tract scope for treatment

EC-740T/M, L

Lower G.I. tract scope for treatment
