- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100mm
- Distal end diameter
12.0mm
- Insertion tube diameter
12.0mm
- Minimum diameter of instrument channel
3.8mm

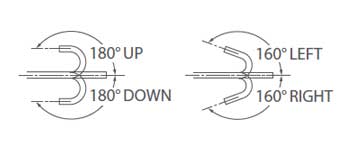

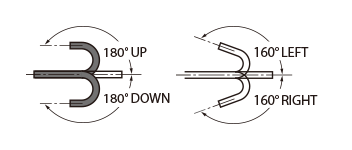

- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°- Working length
EC-600W/M
1,330mmEC-600W/I
1,520mmEC-600W/L
1,690mm- Total length
EC-600W/M
1,630mmEC-600W/I
1,820mmEC-600W/L
1,990mm- Water Jet
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100mm
Normal: 3-100mm
Closest: 1.5-2.5mm- Distal end diameter
12.8mm
- Insertion tube diameter
12.8mm
- Minimum diameter of instrument channel
3.8mm
- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160- Working length
EC-600ZW/M
1,330mmEC-600ZW/L
1,690mm- Total length
EC-600ZW/M
1,630mmEC-600ZW/L
1,990mm
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
9.8mm
- Insertion tube diameter
10.5mm
- Minimum diameter of instrument channel
3.2mm

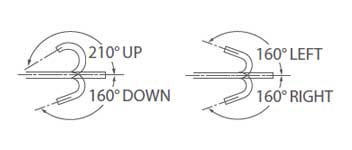

- Bending capability
UP 210° / DOWN 160°
RIGHT 160° / LEFT 160°- Working length
EC-580RD/M
1,330mmEC-580RD/L
1,690mm- Total length
EC-580RD/M
1,630mmEC-580RD/L
1,990mm- Water Jet
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Viewing direction
0°(Forward)
- Field of view
170°
- Observation range
2-100mm
- Distal end diameter

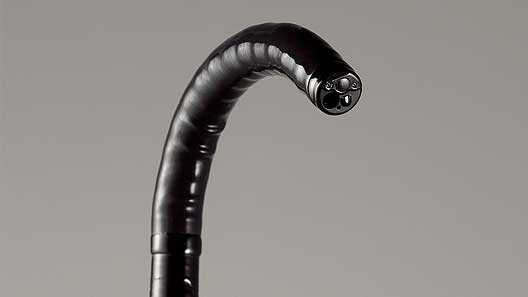

EC-760R-V
12.0mmEC-760P-V
11.1mmEC-760S-V
12.8mm- Insertion tube diameter
EC-760R-V
12.0mmEC-760P-V
11.5mmEC-760S-V
12.8mm- Minimum diameter of instrument channel

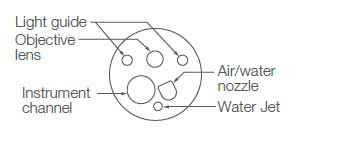

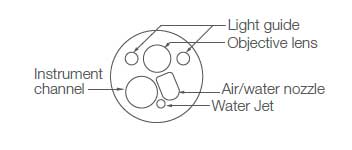

EC-760R-V
3.8mmEC-760P-V
3.2mmEC-760S-V

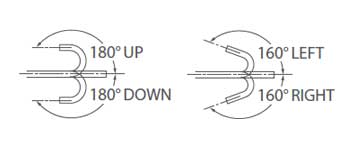

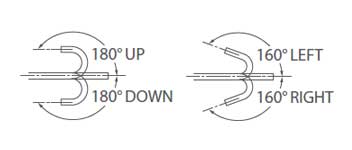

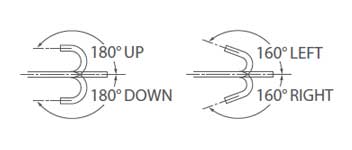

3.8mm- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°- Working length
EC-760R-V/M,I,L
1,330mm / 1,520mm / 1,690mmEC-760P-V/M,L
1,330mm / 1,690mmEC-760S-V/L
1,690mm- Total length
EC-760R-V/M,I,L
1,650mm / 1,840mm / 2,010mmEC-760P-V/M,L
1,650mm / 2,010mmEC-760S-V/L
2,010mm- Water Jet
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100mm
Normal: 3-100mm
Closest: 1.5-2.5mm- Distal end diameter

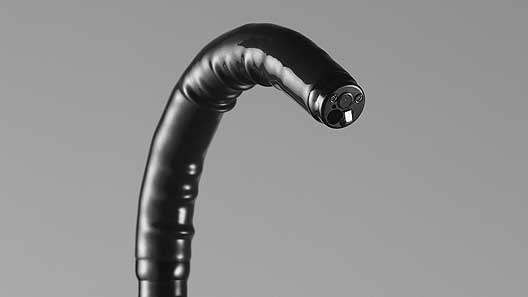

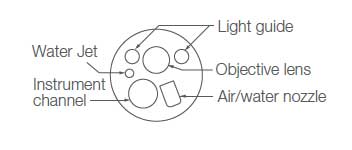

EC-760Z-V
12.8mmEC-760ZP-V
11.7mm- Insertion tube diameter
EC-760Z-V
12.8mmEC-760ZP-V
11.8mm- Minimum diameter of instrument channel
EC-760Z-V
3.8mmEC-760ZP-V
3.2mm- Bending capability

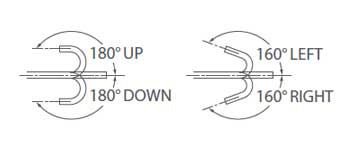

UP 180° / DOWN 180°
RIGHT 160° / LEFT 160- Working length
EC-760Z-V/M,L
1,330mm / 1,690mmEC-760ZP-V/M,L
1,330mm / 1,690mm- Total length
EC-760Z-V/M,L
1,650mm / 2,010mmEC-760ZP-V/M,L
1,650mm / 2,010mm- Water Jet
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable

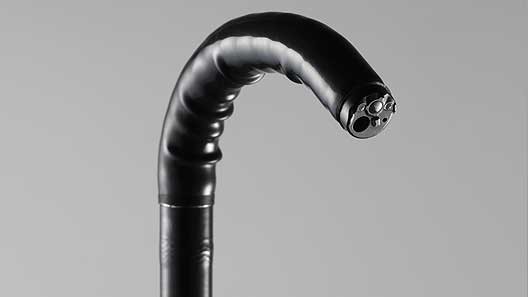

- Viewing direction
0° (Forward)
- Field of view
170°
- Observation range
2-100mm
- Distal end diameter
12.8mm
- Insertion tube diameter
12.8mm

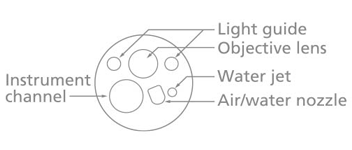

- Minimum diameter of instrument channel
3.8mm

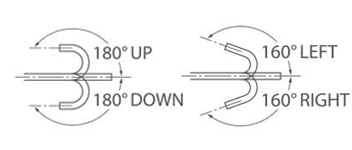

- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°- Working length
EC-720R/M
1,330mmEC-720R/I
1,520mmEC-720R/L
1,690mm- Total Length
EC-720R/M
1,630mmEC-720R/I
1,820mmEC-720R/L
1,990mm- Water Jet
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Viewing direction
0° (Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
12.8mm
- Insertion tube diameter
12.8mm
- Minimum diameter of instrument channel
3.8mm
- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°- Working Length
EC-530WM3
1,330mmEC-530WI3
1,520mmEC-530WL3
1,690mm- Total Length
EC-530WM3
1,630mmEC-530WI3
1,820mmEC-530WL3
1,990mm
