Small body, big flexibility
3-step easy measurement
Using the item code recorded on the slide, the item and lot number are automatically identified. After pressing the start key everything through the printing of the measurement data is fully automatic.
One pack panels (S-panels)
Set multiple required items at once
One pack panels are also available. There is no need to open individually packed slides in a panel. This improves work efficiency and reduces waste.
Measure directly from whole blood
Built-in centrifugal separation unit*1
Simply insert the whole blood in the dedicated IC cup and place the cup in the unit. Automatically execute everything from plasma extraction to analysis.
Can also measure serum and plasma separated by external centrifugation
This is possible when there is a need to reduce the amount of blood sampled or use the plasma sample in other tests.
Reduce waiting time
As soon as the pipetting procedure for the first sample is completed, the slides for the next sample can already be set and the test started. This minimizes waiting time for your patients.
NX600V processing cycle in minutes for 18 clinical parameters per patient sample
Improved design supports smooth workflow
User-friendly Fujifilm design
Set consumables for multiple samples at once
The layout is simpler than our previous models, and this makes it easier to set consumables.
Multiple tips can be set at once, which eliminates the need to set reference solution for each measurement. This reduces the frequency of consumable replacement.
Large 7-inch intuitive LCD touch panel
The simple and easy-to-use operation screen provides a swift transition speed of 0.5 seconds or less for stress-free operation. A rich variety of help screens are also provided. This enables easy operation while checking illustrated usage and maintenance procedures.
A rich variety of functions for flexible support
Only 10 μL of sample is required for each test. (CRP: 5μL/test, ISE: 50μL/test, dead volume is necessary using automatic measurement.) A very useful feature especially in small animals. If there is less sample, measurement can be done by manual pipetting.
128 tests can be processed per hour.
Automatic dilution function
Labor intensive operations like dispensing, mixing etc. are automated. The only user operation required is when selecting the dilution ratio.
The FUJI DRI-CHEM system uses dry type reagents which are very stable. As the reagents are stable, calibration is not necessary and it utilizes a standard curve for the measurements. Variability in the reagent lots are adjusted using the QC card.
Easy reagent lot information input by QC card
Information for every reagent lot that are needed for the measurement are easily input into the machine using the QC card.
Reduces biohazard risks

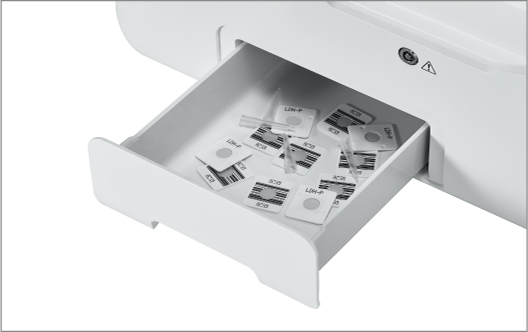

Used slides and tips fall automatically into a disposal box. Reduces the risk of contact with specimens.
Achieve high-precision testing with reliable technology
High-quality slides utilize coating technology cultivated in the field of photography.
FUJI DRI-CHEM SLIDE
Two types of slides are provided for different test items.
Colorimetric method slide
Enzymes, General chemistry, and Immunology
This multilayered slide is composed of dry chemical ingredients needed for the reaction and other functional materials. It quantifies enzymes and chemicals using a colorimetric method.
Potentiometric method slide
Each slide comes with an ion selective film electrode for each of Na, K, and Cl. Slides quantify electrolytes in the sample by a potentiometric method.
Centrifugal separation cup (IC cup)
Unique Fujifilm structure reduces risks
Inserting a syringe into the straw included with the cup and injecting the sample prevents sample scattering. Furthermore, an internal structure with a separation layer and groove reduces hemolysis and promotes the stable supply of good quality plasma.
Based on technology and experience developed over many years, Fujifilm DRI-CHEM provides conclusive test results
Fujifilm DRI-CHEM slides achieve an extremely high degree of precision thanks to a special filter layer that reliably filters out any substances that could interfere with the serum or plasma specimen. The high quality of Fujifilm reagents is demonstrated by a comparison with the standard measurement methods.
Realtime diagnosis canine CRP test for inflammation screening
NX700V can measure lipase activity for canine CRP with
the rest of the biochemistry test items.
NX600V can measure lipase activity for canines
Lipase activity, which is useful for the screening of pancreatitis, can also be easily measured. This contributes to quick screening of pancreatitis onsite.
Correlation of v-LIP with cPLI
Lipase activity distribution classified by PLI diagnostic categories
Citation:J.Vet.Med.Sci.73(11):1481-1483, 2011 Katsumi Ishioka
J-vet vol.291 2011.6 pp13-15, pp25-29
DRI-CHEM product lineup
providing total in-house diagnostic testing
Clinical chemistry analyzer
- High throughput 190 test/ hour (colorimetry and ISE combined)
- 5 sample rack
- Without centrifugal separation unit
Clinical chemistry analyzer
- Single sample rack
v-T4, vc-TSH, v-COR, v-BA, v-PRG, vf-SAA
