Pressure Distribution Mapping System

FPD-8010E

NEW

Easy to Read, Easy to Understand Prescale Pressure Analysis in numerical format is now available!

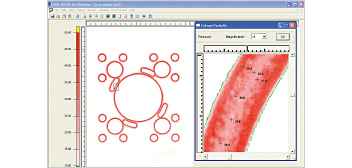

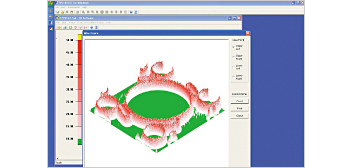

FPD-8010E provides a wide range of effective presentation and report functions utilizing FPD-8010E software and a scanner to digitize Prescale outputs to allow the user to produce multi-faceted measurement data such as pressure distribution and enlargement, cross-sectional distribution, and 3-D image display.
This serves to accelerate product development and improved yields based on detailed multi-faceted measurement data and analysis.

System Configuration

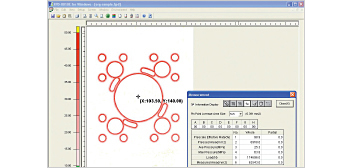

Total Weight Distribution

The upper and left segments of the total pressure are displayed on a bar graph.

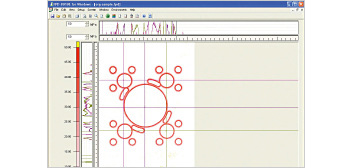

Histogram Analysis

Pressure on the circumference is displayed as a histogram.*2

Text Data Output

Pressure data is exported to a text file.*2

Pressure Distribution Animation

Step-by-step pressure values are displayed in animated format.

  • *1 The scope of for Ultra Extreme Low Pressure(5LW) that can be measured by pressure image analysis system FPD-8010E is 0.015MPa to 0.050MPa.
  • *2 Ultra Extreme Low Pressure(5LW) is not supported.
