FUJIFILM Prescale Mobile

Select the plus sign on the inspection menu to switch to the Add Inspection screen.

1. Set inspection content
   • See the reference manual for detailed information regarding settings.
2. Select OK to register an inspection
   • If the type of inspection is set to Superimposition, registration of a boundary sample is required.　　　　

1. Select boundary sample on the Add Inspection screen
2. Select Use Photo to register the boundary sample.

1. Enter the Room temperature/Humidity when pressure was applied to the Prescale used for inspection
2. Select Individual Inspection or Layering Inspection on the inspection menu screen, then tap on the name of the inspection to be performed
3. Capture Prescale

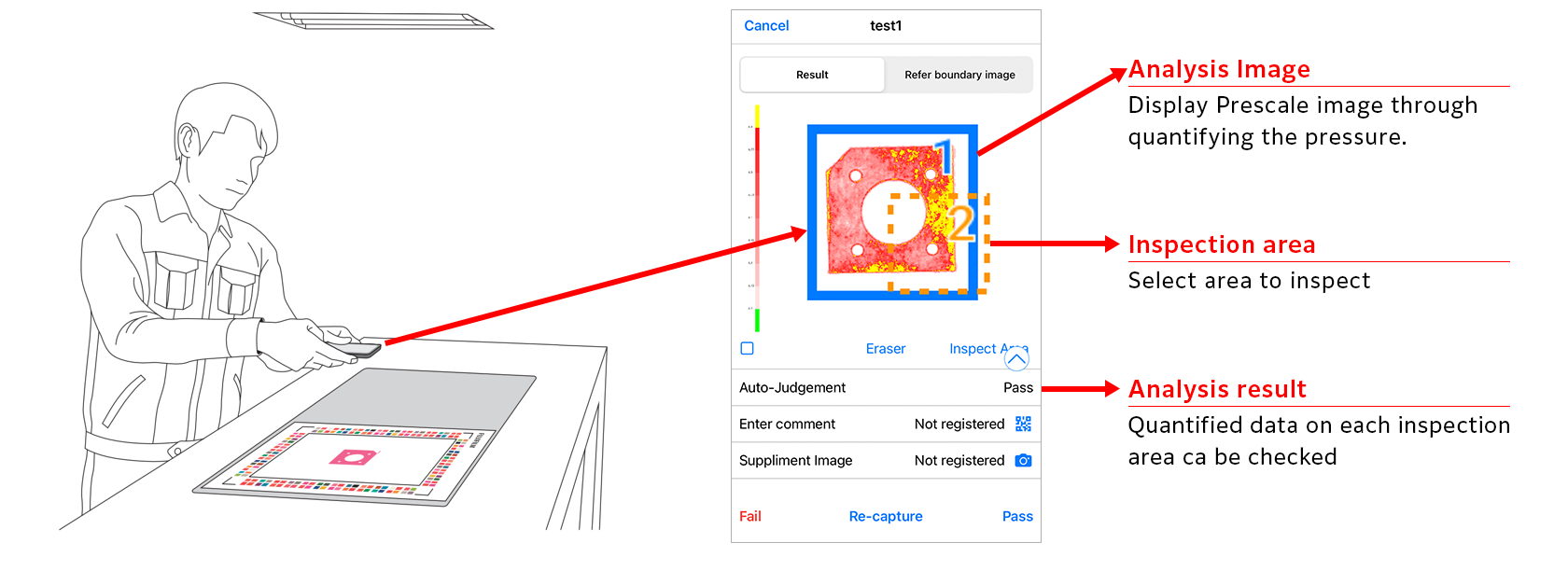

Data such as analysis images and pressure values are displayed.

1.  Select OK or No good on the analysis results.
2.  Select Yes on the confirmation screen, then register the judgment result on the confirmation screen.

1. Select History on the inspection menu screen
2. Select the inspection results to be checked

Inspection areas of the desired size can be specified up to six positions,and inspection information inside these areas can be displayed.

Sample and inspection images can be displayed side-by-side.
* This function can only be used with Individual Inspections.

The boundary samples and inspection images can be layered over each other to show differences in pressure. The color bar on the left indicates the degree of conformity between the pressure in the boundary sample and inspection images.
* This function can only be used with Superimposition inspection.

It is automatically judged based on the preset threshold value or threshold range.

Data can be stored, and past record can be referenced at any time.
