[photo] Fujifilm Projector FP-ZUH6000

Projector FP-ZUH6000 - Specifications

An ultra-short-throw projector delivering 4K high-resolution visuals and superior color accuracy to create an immersive viewing experience.

Contact Us Projection Simulator
Specifications
FP-ZUH6000
Downloads [PDF]
Main Specifications
Model name FP-ZUH6000
DLP® chip Size 0.65 in, 16:9 aspect ratio
Display method 1 Chip DLP®
Number of pixels 2,073,600 pixel (1920 x 1080)
Lens Type Folded two-axial rotatable lens
Shift Electrical: Vertical ±82%, Horizontal ±35%
Zoom Electrical: x1.0-x1.1
Throw ratio(TR)*1 0.34 (Wide)-0.37 (Telephoto)
Focal length f=5.0mm (Wide)-5.5mm (Telephoto)
F No. F2.3 (Wide)-F2.39 (Telephoto)
Keystone correction range Vertical ±5°/ Horizontal ±5°
Light source Laser diode
Brightness [ANSI lm*2] 6,000lm
Light source life*3 20,000 hours
Contrast ratio*4 12,000:1
Projected image size 70-300 inches
Maximum display resolution(WxH) 4K 3840 x 2160 (4K mode ON)
Terminals Video IN terminals HDMI®1

TypeA
HDMI®2.0 (Compatible with HDCP 2.2)
HDMI®2

TypeA
HDMI®2.0 (Compatible with HDCP 2.2)
HDBaseT™

RJ-45
For video/audio/connection control
Video OUT terminals HDMI® TypeA
HDMI® 2.0 (Compatible with HDCP 2.2)
Control IN/OUT terminals LAN

RJ-45
For network connection (10BASE-T/100Base-TX)
HDBaseT™ RJ-45
For projector connection control
RS-232C D-Sub 9Pin
For projector connection control
Audio OUT terminal AUDIO OUT M3.5mm stereo mini jack
Remote IN REMOTE M3.5mm stereo mini jack
for wired remote control
Others USB1

TypeA
DC 5V 1.5A (Max)
USB2 TypeB
for maintenance
Power supply AC 100-120V, AC 220-240V 50/60Hz
Power consumption Maximum 650W
Normal 560W
Eco 285W
Standby Approx.0.5W
Network standby Approx.8.0W
Dimensions 486mm (W) x 496mm (D) x 175mm (H) (excluding adjustable feet and protruding parts)
Weight Approx.17.5kg (38.6lb)
Noise level*5 Normal 36dB
Eco 34dB
Operation environment Operating temperature 0-40°C(32-104°F)
Accessories included Power cord 3.0m (9.8ft)
Lens cap
Remote control
Remote control battery (AAA type x2)
Basic manual
  • *1 The “throw ratio” is the throw distance divided by the screen width.
  • *2 The average value for this model at shipment, according to ANSI standards.
  • *3 The estimated time taken for brightness to drop by half. Varies with the operating environment and conditions of use.
  • *4  Assumes that dynamic black is on.
  • *5 Noise measurement follows ISO 7779.

Product specifications and appearance are subject to change without advance notice

  • * DLP Cinema and the DLP Cinema logo are trademarks or registered trademarks of Texas Instruments.
  • * The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
    registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
  • * HDBaseT and HDBaseT Alliance logo are trademarks of HDBaseT Alliance.
Interface Connectors
Description of the input terminal face of the Z-Projector
  1. HD BaseT
  2. LAN
  3. USB (DC5V/1.5A)
  4. AUDIO OUT
  5. RS-232C
  6. HDMI OUT
  7. HDMI IN 1/2
  8. Wired Remote IN
Dimension

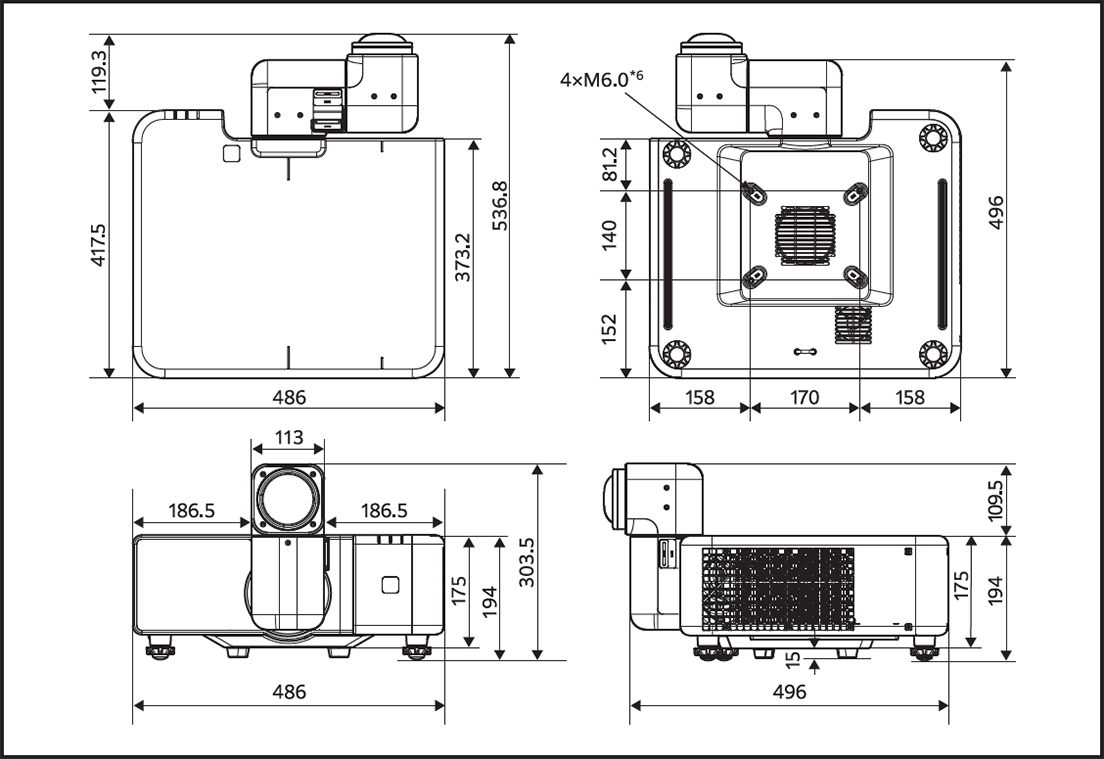

Outline Drawing
Detailed size description of each part of Z-Projector

*6 For ceiling mount installation

Projection Distance

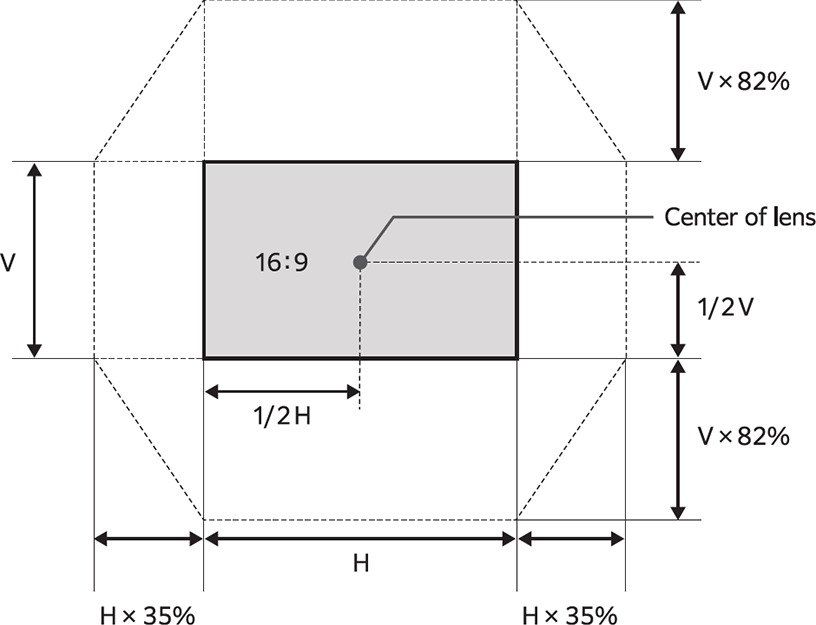

Lens Shift Range
Projection Distance
Description of the screen shift range from the center of the lens
Projection Distances
16:9 Screen Projection distance (cm) Lens shift (cm)
Size (inches) Width x Height (cm) Area (m2) Wide-Tele Lowest-Highest
70 155 × 87 1.3 52 － 57 -115 － 28
80 177 × 100 1.8 59 － 65 -131 － 32
100 221 × 125 2.8 75 － 82 -164 － 40
120 266 × 149 4.0 90 － 99 -197 － 48
150 332 × 187 6.2 113 － 124 -247 － 60
180 399 × 224 8.9 135 － 149 -296 － 72
200 443 × 249 11.0 151 － 166 -329 － 80
250 553 × 311 17.2 189 － 208 -411 － 100
300 664 × 374 24.8 227 － 250 -493 － 120
