Pressure measurement film Prescale for High Temperature

We are pleased to announce the addition of the following three new products to our Prescale for High Temperature lineup:

Prescale for High Temperature 100 LW
Prescale for High Temperature 200 LW
Prescale for High Temperature 200 LLLW

Product name / Model: Prescale for High Temperature 100/200
Recommended temperature of applied heat: Prescale for High Temperature 100: 35°C to 150°C（heat applied to both sides）
Prescale for High Temperature 200: 150°C to 220°C（heat applied to both sides)
Precision: ±10% or less (measured using a densitometer)

Line-up

Prescale for High Temperature is categorized into different types according to the temperature and pressure range [MPa]. Please select the type that best suits your inspection condition.

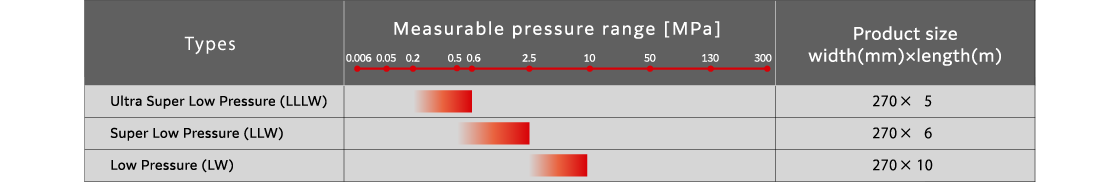

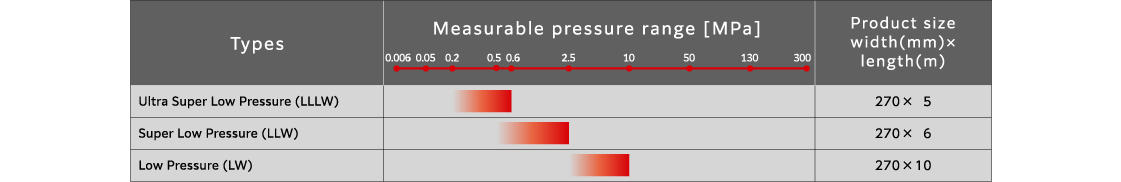

Prescale measurable pressure range table

How to calculate pressure value (MPa):

To calculate the pressure value (Mpa), you need the mass (kg) or newtons (N), as well as the surface area (mm² or cm²).

1 MPa = 1 N/mm² ≒ 10.2 kgf/cm²
e.g.) if 100 kg is applied on a 100mm²(1cm²) surface, the calculation is 100kgf/cm².

You can automatically check the pressure values from the options below.

Principle of Prescale for High Temperature

Unwanted coloring and base deformation during heat press have been suppressed.

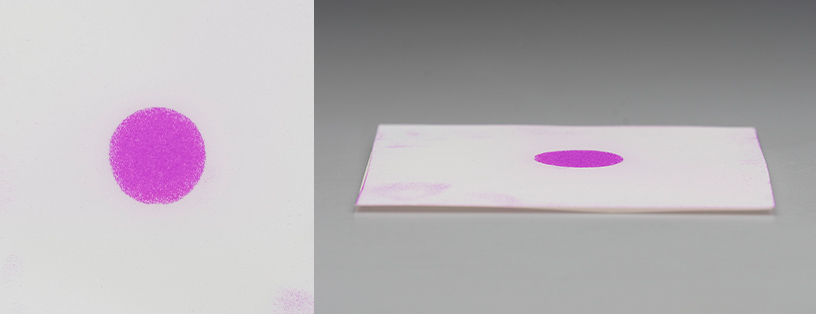

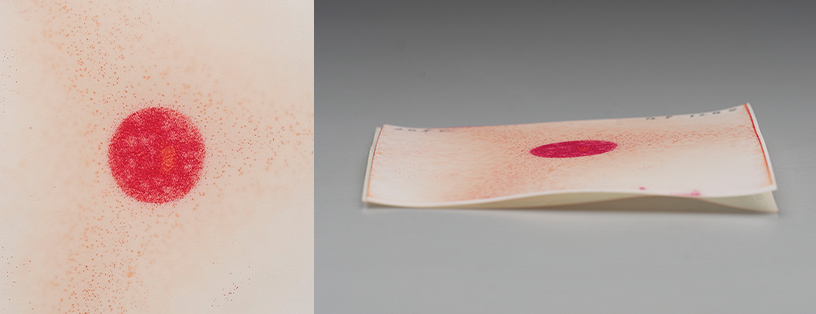

Heat-induced discoloration and base deformation when used Prescale (Left),Reduce heat-induced discoloration and base deformation by using Prescale for High Temperature 200 (Right)

① Modification of substrate to heat-resistant
② Modification of coating film
③ Adoption of heat-resistant microcapsule

Pressure chart

The pressure value can be confirmed visually by referring to a standard chart.

Example pressure chart for Medium Pressure (MW) Prescale

* This chart is for Medium Pressure (MW) Prescale and will differ from results for Prescale for High Temperature.

* Parts shown as dotted lines may exceed the allowable error range and should only be used as a reference.
* Curve A, B or C should be selected based on the applied heat.

How to use Prescale for High temperature

To quantify and digitize pressure data
