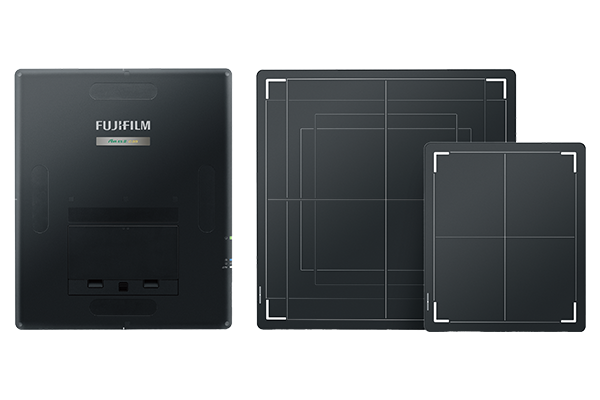

[photo] FDR D-EVO II C35/C43/G35/G43 DR Panel

FDR D-EVO II C35/C43/G35/G43

NEW

A rectangular large-sized DR panel full of multiple functions in a lightweight body.

The content on this page is intended to healthcare professionals and equivalents.

Smart Function - Pursuing ease of use through versatile functionality

[photo] LED status displays for different functions of machine

1. Improved insertion through shell design

The shell design, with its curved sides, allows for easier insertion into patient beds. The easy-to-grasp shape allows for easy pick up even when placed flat, improving task efficiency.

2. Five-colored side-center LEDs to improve distinguishability

Equipped with LEDs at the center of each of the four sides of the detector that makes it easy to check the center position during imaging. Select from five colors (blue, pink, orange, lime-yellow, and purple) that make it easier to distinguish devices when using multiple detectors. In sleep mode, the side-center LEDs switch to a gentle flashing pattern that allows you to see the state of the detector at a glance.

3. Easy-to-see LED status display

The back of the detector is equipped with an LED lamp that displays remaining battery status. This allows easy checks of remaining battery, and eliminates worries when using the detector.

[photo] LED battery status display

4. Maximum 36 hours of standby time with the new sleep function

The sleep mode provides a maximum 7.5 hours of standby time, whereas the newly added extra sleep mode provides up to 36 hours of standby time.In sleep mode, the center LED on the side of the detector flashes slowly to indicate the detector status at a glance.

[image] Bar graph for sleep mode of conventional device compared to FDR D-EVO II

5. Works together with the console to display the detector status display the detector status connection

The docking stand works together with the console to display the detector's “Ready” status and identify color using the LEDs. This makes it easy to check the current state of the detector even from far away.

6. "SmartSwitch" Technology

Smart Protection - Combines waterproofing, and durability for additional peace of mind even in the tough medical environments.

IPX6 waterproofing

Structured to prevent the infiltration of liquids, the device conforms to IPX6 and can withstand jets from any direction*1. There is no need to worry that fluids such as blood or vomit could enter the device.

[photo] Water sprayed on upright standing device

A frame structure that increases durability — 310kg load capacity

The innovative SRM*2 frame realizes a lightweight design combined with a 310kg load capacity on all surfaces by reinforcing the frame internally with ribs. This also improves the flex resistance of the display detector.

[photo] Internal SRM frame
  • *1 Because of product characteristics, these effects cannot always be guaranteed into the future.
  • *2 Shell-shape with rib magnesium-alloy

Smart Mobility: Superior mobility with lightweight body allows use in a variety of medical settings.

lightweight body

Designed to be lightweight, weighing only 2.5 kg*2 (G35 size with battery) through the magnesium-alloy shell-type frame (SRM*3 frame). Can easily be placed behind a patient

Suitable for various location use with an expanded spectrum

Supports 2.4GHz and 5GHz (W52 / 53 / 56 / 58)*4 spectrum.

Allows detector-only image storage

The detector itself can store up to 100 images in internal memory. This eliminates the work of carrying around multiple CR cassettes found in conventional systems. Furthermore, it allows you to perform rapid imaging, such as at night or during an emergency.

[image] Store up to 100 images on internal memory of FDR D-EVO II
  • *2 G43:3.1kg, C35:2.6kg, C43:3.2kg, with battery
  • *3 Shell-shape with rib magnesium-alloy
  • *4 It depends on the regulation of each country which the wireless band is allowed to be used.

Products Name : FDR D-EVO II(Model name : DR-ID 1200)
