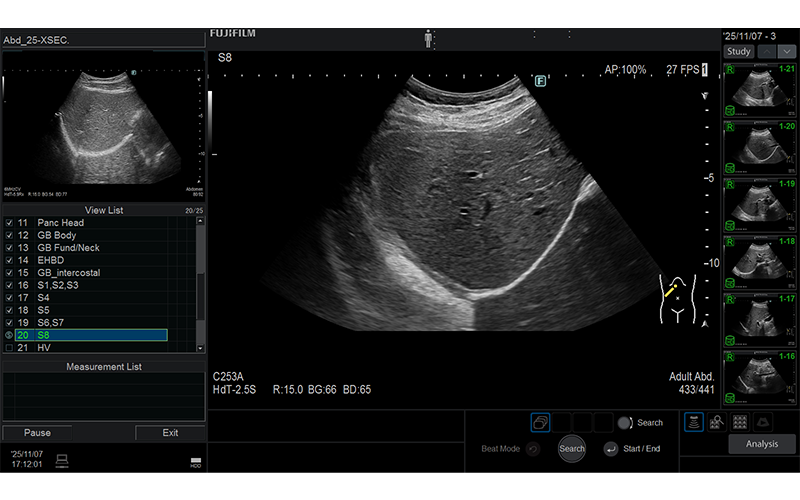

Examinations can be conducted following examination procedures and imaging conditions tailored to specific applications. Button operations can be significantly reduced to support streamlined examinations. Additionally, a reference image can be displayed using Guide View function.

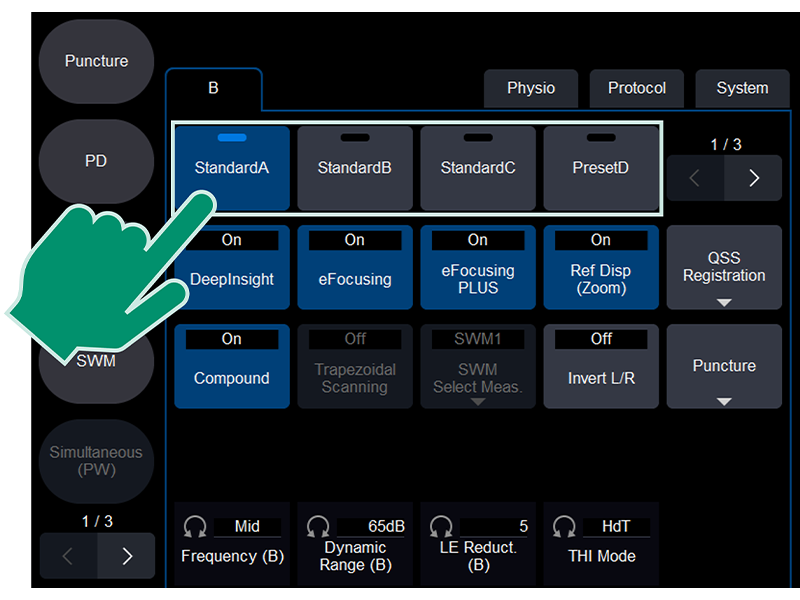

This feature enables to adjust parameters related to image tuning such as gain, frequency and flow velocity range, and save up to four different patterns in a single preset. With one-touch operation, users can easily switch between these settings, enabling observation with appropriate image quality tailored to the target area, thereby examination efficiency is expected to be improved.
Supports the automated measurements which are effective for cardiovascular examinations using AI technology*2. Users can perform examinations smoothly and efficiently.
Supports automatic endocardial tracing*3 for apical four-chamber and two-chamber views. When measuring EF (Ejection Fraction) using the biplane disk summation method, GLS (Global Longitudinal Strain) can also be calculated simultaneously.
Enables automatic positioning*3 of the sample gate in Doppler measurements. When switching to PW Doppler mode during real-time imaging, the sample gate is automatically set at the left ventricular inflow tract.

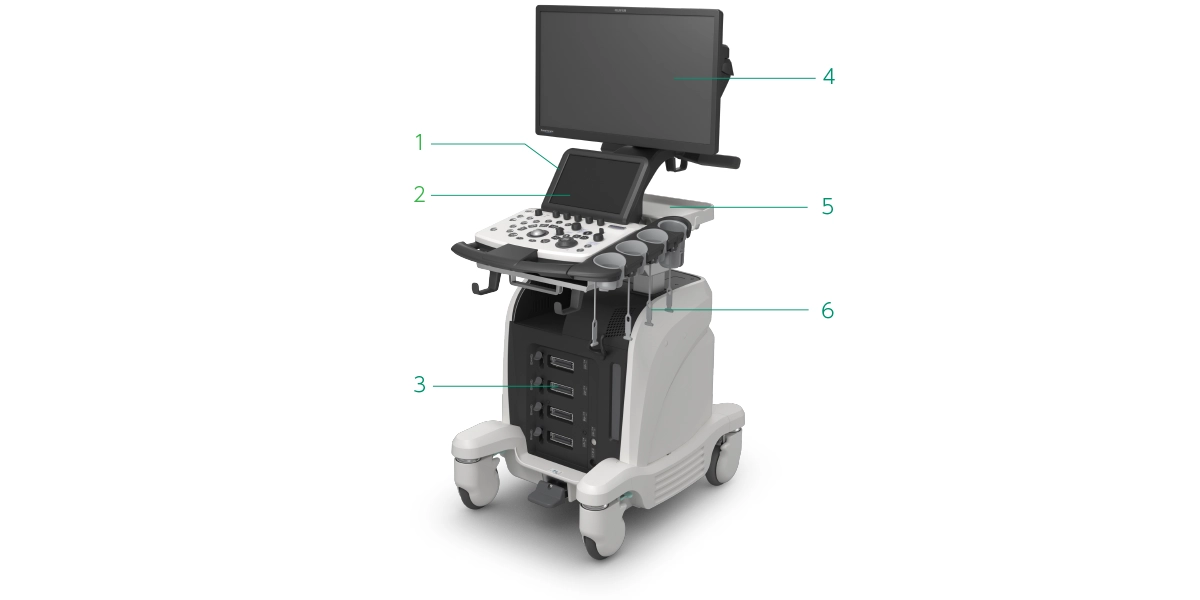

1：USB Ports
2：10.1 inch Touch Panel
3：4 Active Probe Ports
4：23.8-inch LCD monitor
5：Storage Tray
6：Cable Assistant Hook
Dimensions：530mm±10%（W）× 742mm±10%（D）× 1250-1670mm（H）（When the monitor arm is folded）
Weight：85kg±10% （main unit only）
Power Requirement：Max. 750VA （with options connected）
Battery compatible*1
- *1 Option
- *2 The technology was developed and designed using machine learning, one of Fujifilm’s fundamental AI technologies. The performance and accuracy of the system does not automatically change after activation.
- *3 The results of automated measurement/function need the confirmation of an examiner. The results can be modified manually as needed.
