FUJIFILM Prescale Mobile

Pressure Image Analysis App

FUJIFILM Prescale Mobile

The app that enables any user to quantify pressure and other analysis results with ease.

FUJIFILM Web Seminar
Digitalization of pressure measurement for production/equipment analysis

Date: September 12th, 2024
Time: 10:00 - 11:30 CET
Method: Zoom
Language: English
Fee: Free

Click here for registration of the Web seminar

*The link to the seminar will be sent few days prior to the seminar date

Content of the Web seminar

  • Introduction of Prescale & FUJIFILM Prescale Mobile including demonstration of the analysis app
  • Explanation on functions and features of the analysis app
  • Application examples

Optimize your production and pressure analysis with the solution provided by FUJIFILM!

FUJIFILM Prescale Mobile has been selected for an international design award!

(Published 2023/12/4)

Reddot winner 2023 logo

Red Dot Award:
Brands & Communication Design 2023

IDEA 2023 Finalist logo

IDEA 2023 Finalist

GOOD DESIGN AWARD 2023 logo

Good Design Award 2023

Judges Evaluation : As the aging of skilled workers and the shortage of skilled workers will become increasingly important issues in the future, this service utilizes a pressure measurement film that applies the film technology that the company has cultivated over many years, and allows for comparison and automatic measurement on a smartphone app. It provides support functions such as judgment and allows anyone to perform specialized inspections using a simple user interface, and can be said to be a good example of using DX to inherit and systemize the skills of individual craftsmen.

FUJIFILM Prescale Mobile Product Overview Video

The app that enables any user to quantify pressure and other analysis results with ease.

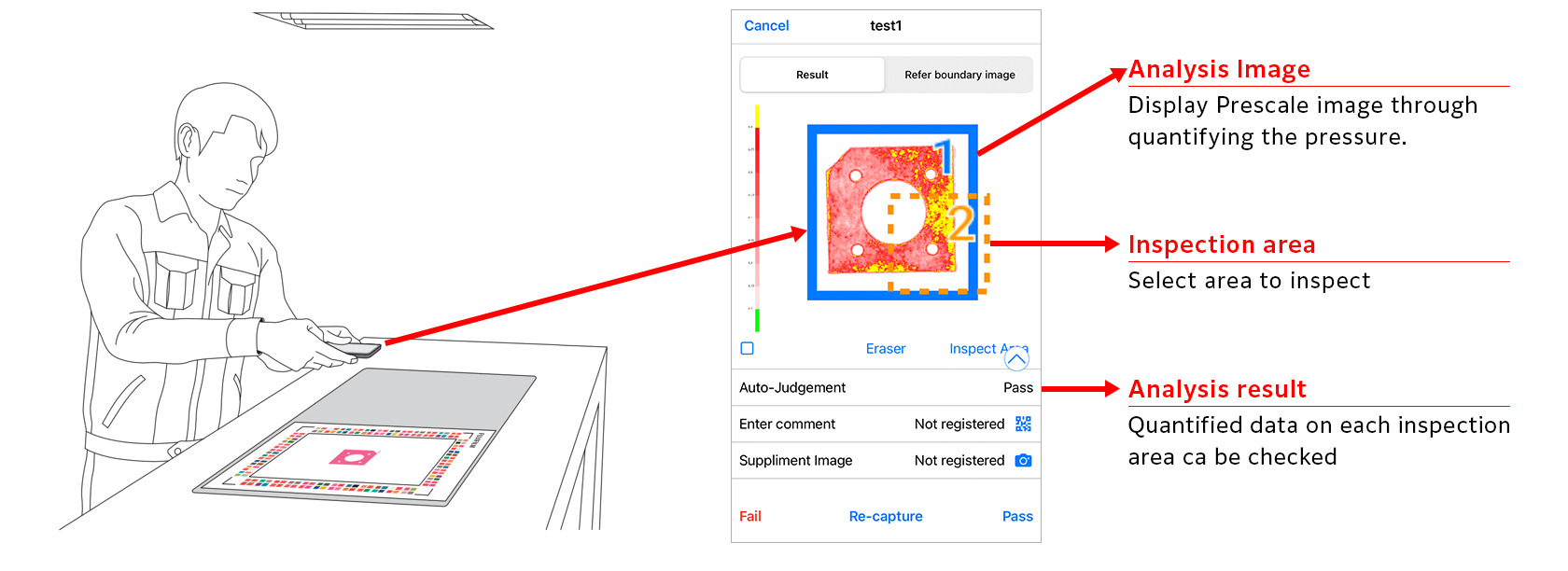

Prescale Mobile is a dedicated app that enables easy quantification of pressure by capturing the colored Prescale with mobile device. You can also register and inspection images against your own boundary sample.

  • Easily quantitative inspection

  • Improve inspection quality

  • Improve traceability

Inspection Workflow

Functions

Supported measurements

Item Unit Explanation
Pressure efficiency The percentage of the colored area within the recommended pressure range for the applicable Prescale
Pressured area mm2 The area over which color is produced
Average pressure MPa The average pressure in the area over which color is produced
Maximum pressure MPa The maximum pressure in the area over which color is produced
Minimum pressure MPa The minimum pressure in the area over which color is produced
Weight N The weight on the area over which color is produced (calculated based on the product of the pressured area and the average pressure)
Measured surface area mm2 The area of the specified area and the area to be processed
Uniformity (pressure) An index indicating the uniformity of pressure across the area over which color is produced
Uniformity (density) An index indicating the uniformity of color density across the area over which color is produced
