United Arab Emirates

STABISCOPE Series

NEW

Lineups

STABISCOPE S1240

  • The gyro effect created by the flywheel absorbs the vibration up to ±5° like that of moving vehicles, helicopters and boats and maintains a steady view.

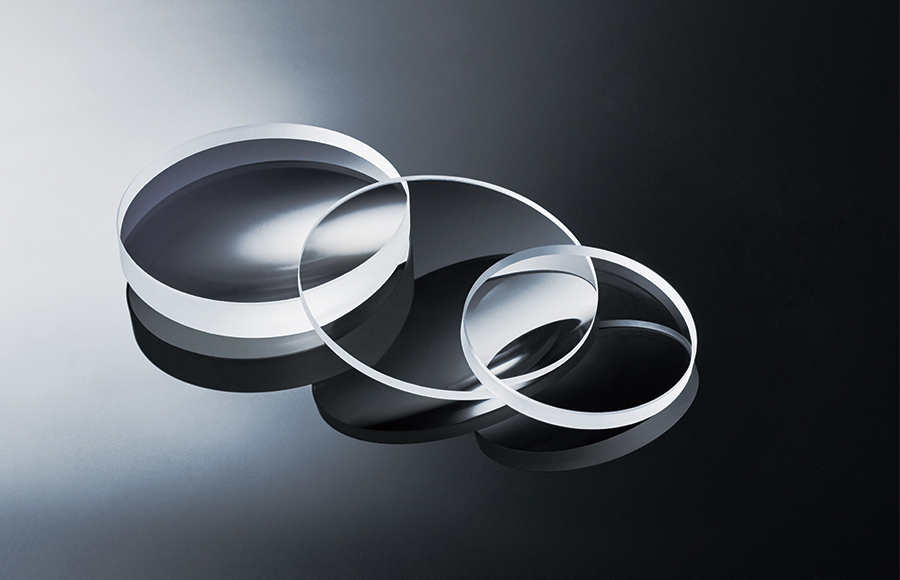

  • All lenses and the prisms have a high-quality EBC multi-coating, increasing light permeability for bright, natural color reproduction.
  • Strong and corrosion resistant for use in harsh conditions from -20℃ to +50℃.
  • Airtight waterproof structure is filled with dry nitrogen gas to prevent fogging inside.
  • Can be used upside down, allowing the binoculars to be held in either hand.
[photo] STABISCOPE S1240 binoculars

Specifications

Magnification

12

Objective diameter (mm)

40

Field of view (°)

4.7

Apparent field of view (°) *1

52.4

Field of view at 1000m (m)

82

Exit pupil

3.3

Relative Brightness

11.1

Eye relief
(mm)

17

Minimum Focus Distance (m) *2

28.8

Height (mm)

210

Width (mm)

200

Depth (mm)

90

Weight (g)
(w/o Battery)

1,800

Adustment range for interpupillary distance (mm)

59-71

Dioptric adjustment range (±mm)

±5

Focus type

IF

Water resistant*3

2m-5min

Battery

AA×4 or 2CR5×1

Operationg temperature

−20℃ - +50℃

STABISCOPE S1640

  • The gyro effect created by the flywheel absorbs the vibration up to ±5° like that of moving vehicles, helicopters and boats and maintains a steady view.
  • All lenses and the prisms have a high-quality EBC multi-coating, increasing light permeability for bright, natural color reproduction.
  • Strong and corrosion resistant for use in harsh conditions from -20℃ to +50℃.
  • Airtight waterproof structure is filled with dry nitrogen gas to prevent fogging inside.
  • Can be used upside down, allowing the binoculars to be held in either hand.
[photo] STABISCOPE S1640 binoculars

Specifications

Magnification

16

Objective diameter (mm)

40

Field of view (°)

3.4

Apparent field of view (°) *1

50.8

Field of view at 1000m (m)

59

Exit pupil

2.5

Relative Brightness

6.3

Eye relief (mm)

12

Minimum Focus Distance (m) *2

51.2

Height (mm)

200

Width (mm)

200

Depth (mm)

90

Weight (g)
(w/o Battery)

1,800

Adustment range for interpupillary distance (mm)

59-71

Dioptric adjustment range (±mm)

±5

Focus type

IF

Water resistant*3

2m-5min

Battery

AA×4 or 2CR5×1

Operationg temperature

−20℃ - +50℃

  • *1 Apparent field of view based on ISO14132-1:2002
  • *2 MOD may differ depends on the viewer's sight in case of Indivisual focus.
  • *3 Do not mean it can be used in water.

Bundled items: Neck strap, Wristband, DC regulator, input and output cords (for DC regulator), and 4 AA batteries.
