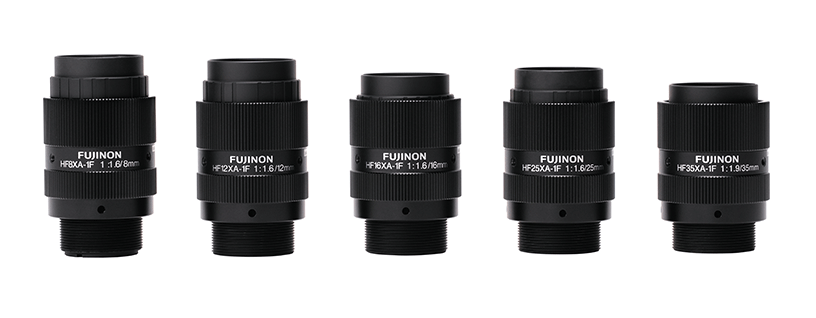

[photo] HF-XA-1F Series lenses standing upright and grouped together in a circle

HF-XA-1F Series

NEW

 HF-XA-1F Series

Compatible with 2/3" to 1/1.2" (max.)
large image sensor cameras

FUJINON HF-XA-1F series is designed for "4DHR" and compatible with IMX250 high performance CMOS image sensor (2/3", 5 megapixels, 3.45µm pixel pitch).

HF-XA-1F series specification sheet

Model Compatible format sizes Focal length
(mm)
4/3 1.1 1 1/1.2 2/3 1/1.8 1/2 1/3
HF8XA-1F 8
HF12XA-1F 12
HF16XA-1F 16
HF25XA-1F 25
HF35XA-1F 35

● Compatible sensor size (std.): Ideal size to maximize the target resolution.

○ Compatible sensor size (max.): Adaptable sensor size varies depending on the model. Select a lens after checking the peripheral light amount and resolution.

Minimizing degradation of resolution even when the shooting distance or aperture is changed

[photo] 4D lens versus general machine vision camera - zoomed in snippets of text chart with highly consistent image sharpness even along the edges compared to resolution degradation

General machine vision camera lenses exhibit problematic degradation of resolution when the shooting distance or aperture is changed. FUJINON HF-XA-1F features high performance "4D HR" to minimize such degradation.
It maintains a highly consistent image sharpness from the center to the edges, while mitigating degradation of resolution caused by changes in the shooting distance or aperture. This enables consistent delivery of high-resolution images under a wide variety of installation and shooting conditions.

New Anti-shock & vibration desigin

Our unique mechanical design realizes anti-shock and vibration performance compatible with various installation environments.

Iris parts having different F.no. are included with package. These parts can enable us adjust the F.no. depending on the situation of the installation and the user's application. Pleae kindly refer the below movie for checking how to replace the iris parts & attach to the camera.

【Compliant with IEC60068-2-6】

  • Vibration frequency of 10-60Hz (amplitude of 0.75mm), 60-500Hz (acceleration of 100m/S2)
  • Sweep frequency of 50 cycles

HF8XA-1F

Focal length [mm] 8
Iris range (F. no) F1.6, F4, F8 (Optional)
Angle of view(2/3") 58.4°×44.6°
Working Distance*1[mm] ∞‐100
Operation of focus FIX
Operation of iris FIX
Filter thread [mm] M25.5 x 0.5
Mount C-mount
Weight (approx.) [g] 97
Sensor size(std.)*2 2/3"(3.45μm)
Sensor size (max.)*3 2/3"(3.45μm)
TV distortion [%] -1.99
Dimension [mm] Φ34×60.2

HF12XA-1F

Focal length [mm] 12
Iris range (F. no) F1.6, F4, F8 (Optional)
Angle of view(2/3") 40.1°×30.3°
Working Distance*1[mm] ∞‐100
Operation of focus FIX
Operation of iris FIX
Filter thread [mm] M25.5 x 0.5
Mount C-mount
Weight (approx.) [g] 99
Sensor size(std.)*2 2/3"(3.45μm)
Sensor size (max.)*3 1/1.2"(4.5μm)
TV distortion [%] -1.26
Dimension [mm] Φ34×58.7

HF16XA-1F

Focal length [mm] 16
Iris range (F. no) F1.6, F4, F8 (Optional)
Angle of view(2/3") 31.4°×23.7°
Working Distance*1[mm] ∞-100
Operation of focus FIX
Operation of iris FIX
Filter thread [mm] M25.5 x 0.5
Mount C-mount
Weight (approx.) [g] 94
Sensor size(std.)*2 2/3"(3.45μm)
Sensor size (max.)*3 1/1.2"(4.5μm)
TV distortion [%] -0.60
Dimension [mm] Φ34×54.0

HF25XA-1F

Focal length [mm] 25
Iris range (F. no) F1.6, F4.6, F9.2 (Optional)
Angle of view(2/3") 20.0°×15.0°
Working Distance*1[mm] ∞-100
Operation of focus FIX
Operation of iris FIX
Filter thread [mm] M25.5 x 0.5
Mount C-mount
Weight (approx.) [g] 87
Sensor size(std.)*2 2/3"(3.45μm)
Sensor size (max.)*3 1/1.2"(4.5μm)
TV distortion [%] -0.07
Dimension [mm] Φ34×55.4

HF35XA-1F

Focal length [mm] 35
Iris range (F. no) F1.9, F5.2, F10.4 (Optional)
Angle of view(2/3") 14.2°×10.7°
Working Distance*1[mm] ∞‐200
Operation of focus FIX
Operation of iris FIX
Filter thread [mm] M25.5 x 0.5
Mount C-mount
Weight (approx.) [g] 75
Sensor size(std.)*2 2/3"(3.45μm)
Sensor size (max.)*3 1/1.2"(4.5μm)
TV distortion [%] 0.10
Dimension [mm] Φ34×50.3
  • *1 From front of lens barrel
  • *2 Sensor size(std.): Ideal size to maximize the target resolution
  • *3 Sensor size(max.): Adaptable sensor size varies depending on the model. Select a lens after checking the peripheral light amount and resolution.
