Frontier DX400/DX400W : Specifications

Main Specifications

Print modes: Standard mode / High Quality mode / Draft mode
Print size: 89 x 50 mm - 210 x 1,000 mm
Print speed: 9.4 sec / sheet (4" x 6", Standard mode)
Print resolution: 720 x 360 dpi / Draft mode
720 x 720 dpi / Standard mode
1,440 x 720 dpi / High Quality mode
Paper loading: 1 roll
Paper types: Glossy / Luster
Ink Supply Units: 6 colors (C, M, Y, K, SB, P) of dye-based ink (250 ml volume per color)

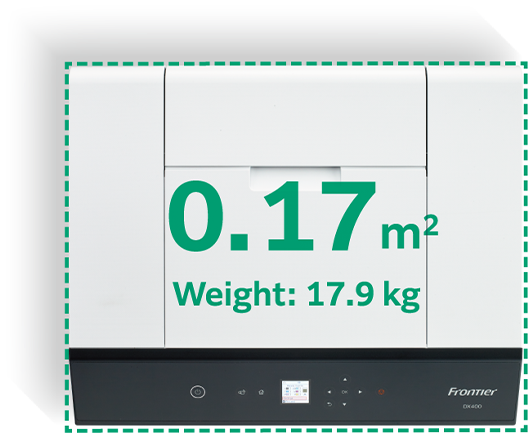

Footprint: 0.17 m²
Power supply: AC100V - 120V (50 / 60Hz)
AC220V - 240V (50 / 60Hz)
Power Consumption: 80 W
Size (W x D x H): 460 x 374 x 340 mm
Weight: 17.9 kg (not including paper, ink supply unit)

* Specifications are subject to change without notice.

Dimensions

DX400/DX400W

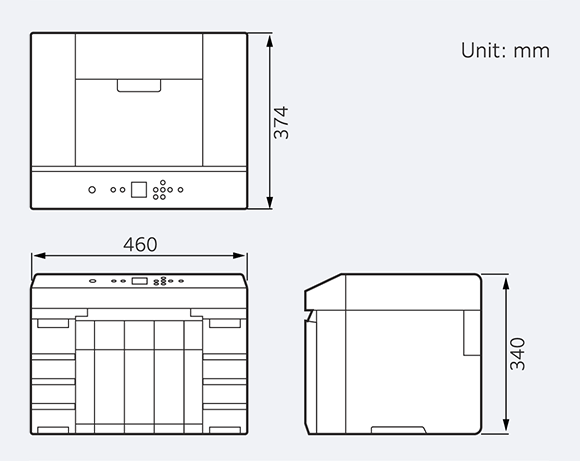

External view

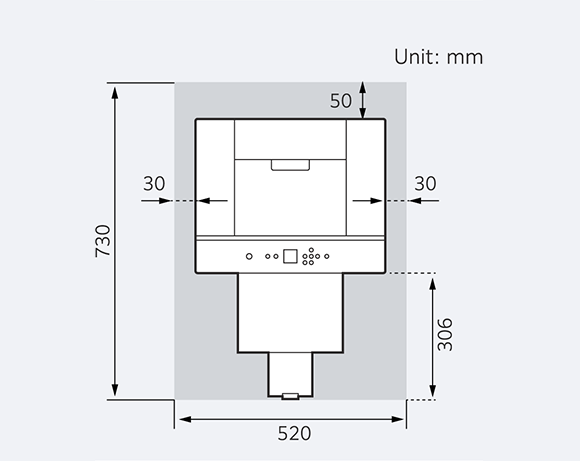

Installation size

DX400/DX400W
(with sheet feeder)

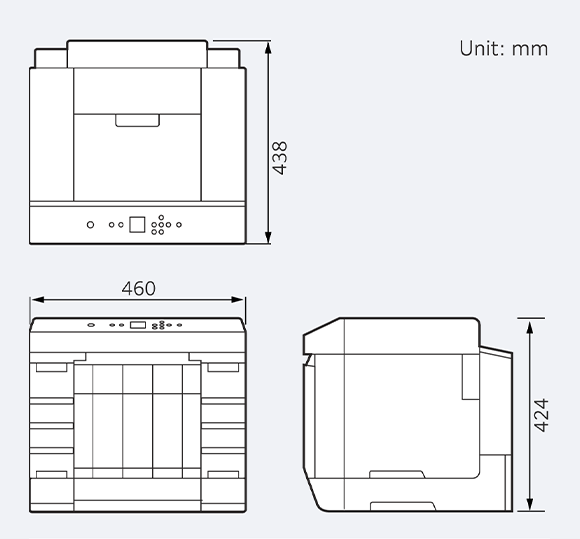

External view

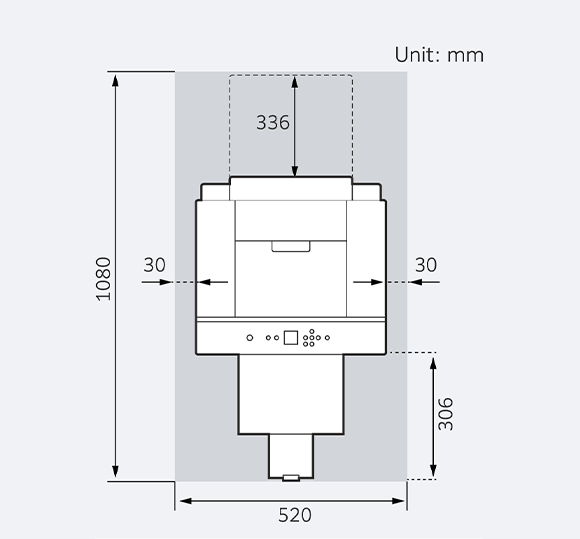

Installation size

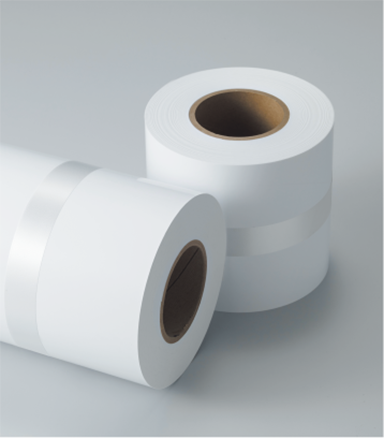

Consumables Special Paper for High Quality Prints
FUJIFILM Quality Dry Photo Paper

Roll

Sheet

Single-sided	Size	Surface		gsm
	Size	Glossy	Luster	gsm
	127 × 178 mm	〇	〇	250
	203 × 254 mm	〇	〇	250
Double-sided	102 × 152 mm	－	〇	190
	127 × 178 mm	－	〇	190
	203 × 254 mm	－	〇	190
	210 × 297 mm	－	〇	190
	102 × 152 mm	－	〇	225
	127 × 178 mm	－	〇	225
	203 × 254 mm	－	〇	225
	210 × 297 mm	－	〇	225
