Digital Minilab
Frontier LP 5000R
NEWCompact, High Quality Digital Minilab delivering 800 4R prints per hour and up to 8” print width.
Main Specifications
Processing capacity | Print sizes | Paper Widths | LP 5000R |
---|---|---|---|
3 R | 127 mm (5”) | Approx. 900 prints/hr | |
4 R | 152 mm (6”) | Approx. 800 prints/hr | |
8 R | 203 mm (8") | Approx. 300 prints/hr | |
Print sizes | 82.5 mm (3.2") X 117 mm (4.6") , 89 mm (3.5") X 127 mm (5") - 203 mm (8") X 305 mm (12") , A4 | ||
Processing chemicals | Chemical system CP-49E | ||
Footprint space | Approx. 0.84 m2 (included optional unit ) |
Laser Printer /Paper Processor
-
Type
-
Floor-type, normal light operation (laser printer, processor, cutter and sorter in one unit)
-
Exposure system
-
Scanning exposure system using RGB lasers
-
Paper magazines
-
Two switchable paper magazines (standard accessory)
-
Paper
-
FUJICOLOR paper (silver-halide)
-
Paper widths
-
89 mm (3.5") , 102 mm (4") , 117 mm (4.6") , 127 mm (5") , 152 mm (6") , 203 mm (8") , 210 mm (8.3")
-
Back printing
-
Single 40/80-character lines in backside print of information
-
Printer sorter
-
SU700AR, sorting capacity: 7 orders of C/H/P-mixed format prints
-
Printer condition setup
-
Semi-automatic calibration by built-in calibrator
-
Processing time
-
Dry-to-dry: 1min. 27 sec
-
Power requirements
-
AC 200-240 V (50/60 Hz) Single-phase 16 A, approx. 3.4 KVA
-
Dimensions
-
(with sorter) 1,385 (W) X 685 (D) X ,495 (H) mm
-
Weights
-
(with sorter) Approx. 345 kg (400 kg during actual operation)
- * Performance varies depending on processing capabilities of the Imaging Controller.
- * Specifications are subject to change without notice.
- * All brand names or trademarks are property of their respective owners.

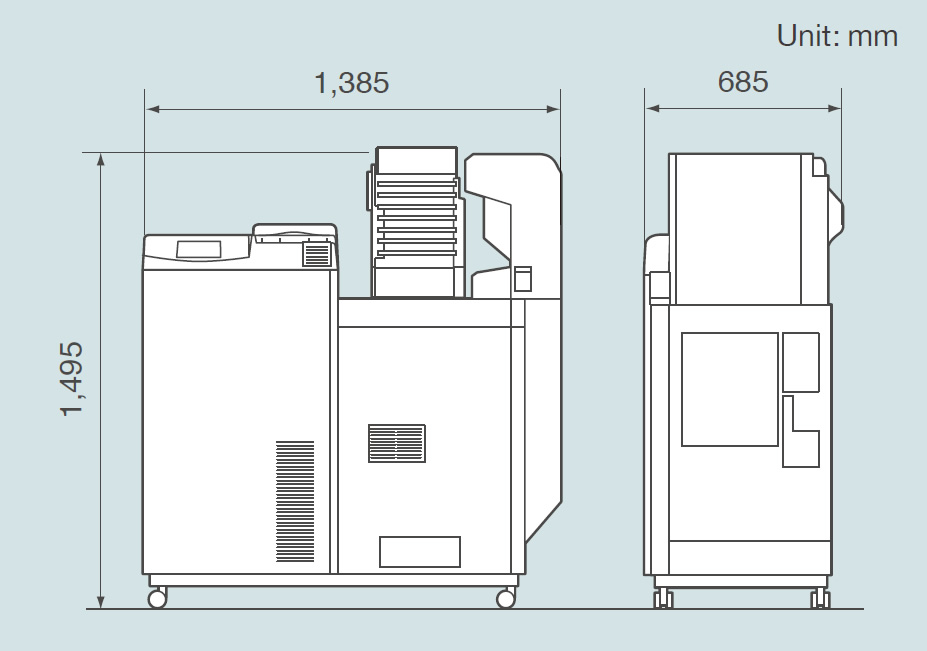

Dimensions
