Designed to reach more peripheral areas of the lung

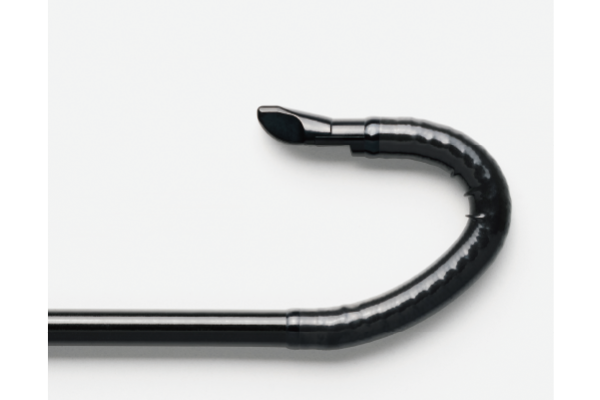

180 degree up angulation supports better EBUS observation without balloon.

EB-710US

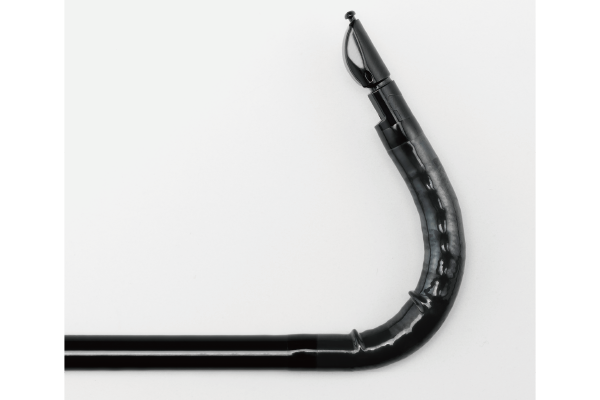

EB-530US

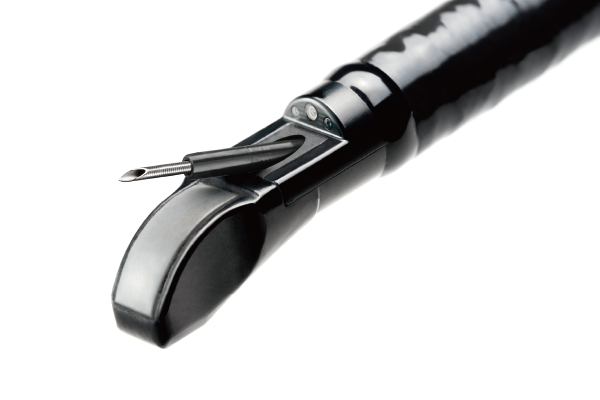

Instrument channel outlet in endoscopic view

The CMOS image sensor is located on the proximal side of the instrument channel outlet and devices can be seen in endoscopic view, which support clinical diagnosis

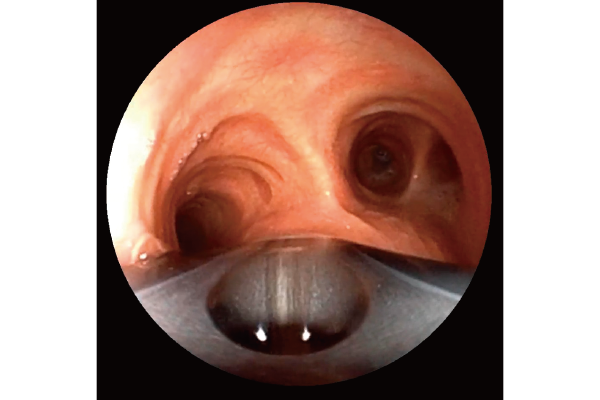

Endscopic image with VP-7000 and BL-7000

The High performance ultrasound transducer

Improved resolution and penetration provide a clear ultrasound image.

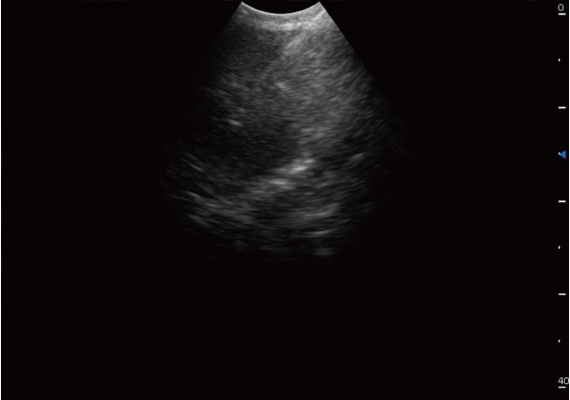

EB-530US

Ultrasound image with SU-1

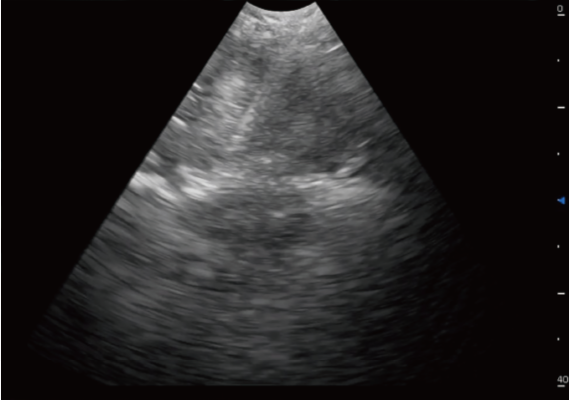

EB-710US

Ultrasound image with SU-1

Sterilization

Compatible with low temperature plasma sterilisation*.

* STERRAD® Systems provided by Advanced Sterilization Products, Inc.

Compatible system

Processor EP-8000	Product name： Processor GMDN： 34540 Generic name： Endoscopic video image processing/light source system
Processor VP-7000	Product name： Processor GMDN： 18034 Generic name： Endoscopic video image processing unit
Light Source BL-7000	Product name： Light source GMDN： 35158 Generic name： Endoscopic light source unit, line-powered
Processor EP-6000	Product name： Processor GMDN： 34540 Generic name： Endoscopic video image processing/light source system
Ultrasonic Processor SU-1	Product name： Ultrasonic Processor GMDN： 40761 Generic Name： General-purpose ultrasound imaging system

Specification

Field of view: 120°
Viewing direction: 10° （Forward Oblique）*
Observation range: 2-50 mm
Distal end diameter: 6.4 mm
Insertion tube diameter: 5.9 mm
Minimum diameter of instrument channel: 2.2 mm
Bending capability: UP 180° ／ DOWN 90°
Working length: 610 mm
Total length: 890 mm

* This means the same as “oblique view”.
