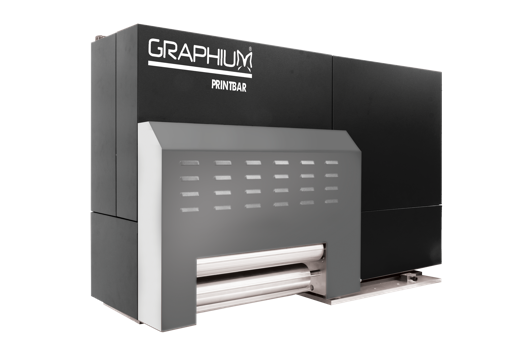

Graphium Printbar – UV Inkjet Imprinting System

Embellishments provide the added value that bring labels to life. With a Graphium Printbar, you gain a digital embellishment capability that will boost print margins and provide a competitive edge for brand conscious designs.

The Graphium Printbar is a complete high-precision solution for adding single pass UV digital inkjet to your continuous feed press. Designed to sit on roll-to-roll presses, it presents the benefits of digital printing easily and economically. Use Graphium Printbar for a number of applications including: Digital White ink for Rotary Screen replacement, Digital black ink for variable data imprinting, or digital varnish for label embellishment.

Features

  • Digital White Imprinting for Rotary Screen replacement
  • Digital Black Imprinting for added value variable data
  • Digital varnish for label embellishment
  • Integrate with new or existing flexo presses
  • Workflow integration options
  • No click charge
  • Variable data capable
  • Low cost in use model

Specifications

Speed

Up to 75m m/min (246 f/min)

Print width

330mm (13”) or 410mm (16”)

DPI/Print quality

360 dpi up to 720 dpi, 8 grey levels - 6pl or 12pl min drop, application dependent

Ink/color

Single or double hit of one fluid

Print heads

Xaar 1003

Approved fluids

UV curable white, black, adhesives, varnish, spot colors & more

Substrates Type
Minimum thickness
Maximum thickness

Optimized for coated/uncoated paper, supported/unsupported film (PP, PE, PET) and foil
40μm
400μm

Ink supply system

Recirculating system

HMI/DFE

TIFF catcher DFE workflow and jobs database. Suitable for integration to wide variety of digital workflow systems including Esko Automation engine and Graphium Label Workflow

Dynamic sync technology

Provides synchronization to analogue with dynamic adjustment of digital image size to ensure fit to analogue repeat length

Samba Printbar Systems for variable data imprinting

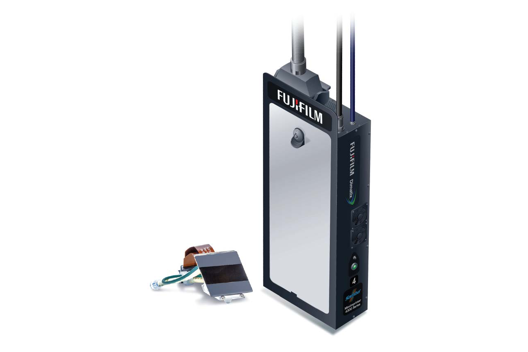

Fujifilm introduces the Samba PS4300, a printbar system designed to bring the capabilities of high resolution and speed to your development and production environments. The system utilizes the ultra-reliable Samba Printhead for outputs of 1,200 dpi up to 1,000 feet per minute (fpm). The Samba PS4300 is designed to fit into your existing manufacturing process or be used as an application/process development tool. This complete system is available with 1, 2, 3 or 4 printbars for your specific application.

Features

  • High speed offset quality variable data imprinting
  • Complete solution with printbar, controller, and software
  • Integrates easily onto web offset presses, mailing tables, and more
  • Faster time to print
  • Minimal ink waste
  • Improved reliability
  • Limited downtime and maintenance costs

Samba PS4300

Printbars

Up to 4 discrete printbars

Line speed

up to 1000 fpm [300 m/min]*

Print width per printbar

1.6 in. [40 mm]

Fluid Parameters

Compatible jetting fluids

Fujifilm UV, LED, and Aqueous Inkjet Fluids

Maintenance

Manual maintenance

Curing / Drying

Optional

Fluid Delivery

Recirculating heated ink system

Print parameters
Input image file format

Most graphic files [TIFF, JPEG, PDF, EPS, AI, PSP, BMP]

Cross process resolution

1200 dpi

Process resolution

1200, 600, 300 dpi

Smallest font

2 pt*

Nominal drop size

3 pl or 5 pl

Control Parameters

Image alignment

Encoder/trigger inputs

Control system

Windows® 7 Graphical User Interface

Interfaces

GUI or remote application over IP

Variable data

Yes

Physical Parameters

Printbar dimensions

Height = 22.875 in. [58.10 cm], depth = 3.625 in. [9.2 cm], width 7.50 in. [19.05 cm]

Power

Universal 110-240 single phase VAC 50/60 Hz 10 amps
