The world's first electronic gyro stabilizing system for binoculars
The erect prism in the gimbal system is constantly stabilized when the electronic gyro sensor detects vibration, providing vibration correction at a wider range of angles than any other system.
Highly waterproof and user-friendly
Waterproof and user-friendly design, making these binoculars the perfect companion in a wide range of settings that include marine sports, safaris, professional fishing, and sailing.

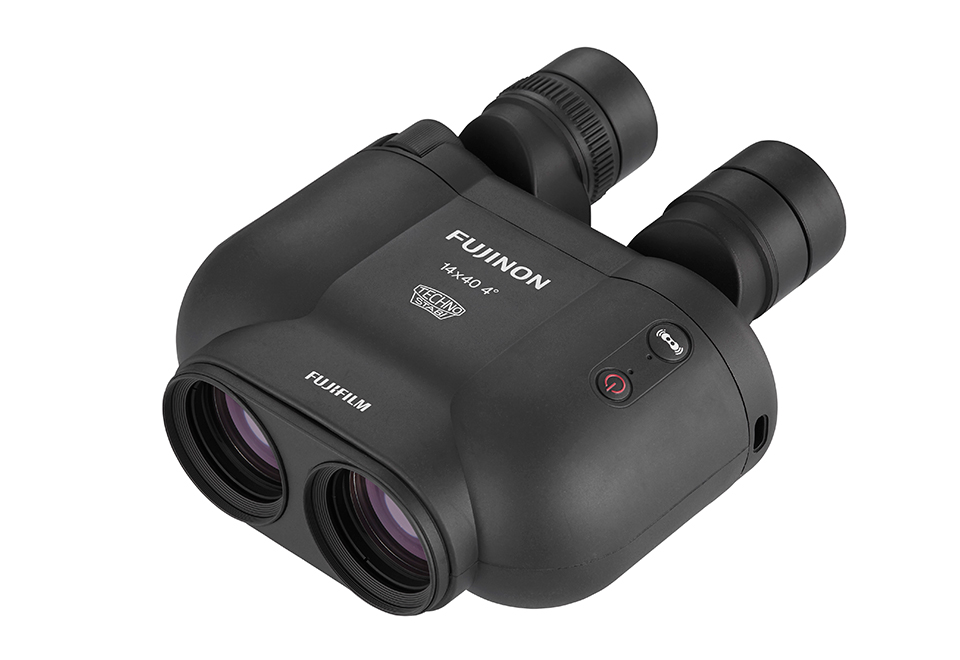

TS-X 1440
- Class-Leading image stabilization* at ±6° Provides a stress-free experience in cars, boats, and other bumpy transportation.
- The latest image stabilization system works at high magnification levels, making it easy to adjust the focus without losing sight of your target.
- Enables a steady image at 14x magnification without a tripod - impossible in binoculars without vibration correction.
- Waterproof and user-friendly design, making these binoculars the perfect companion in a wide range of settings that include marine sports, safaris, professional fishing, and sailing.
- *According to September 2019 research conducted by Fujifilm on vibration-correcting binoculars.
Specifications
-
Magnification
-
14
-
Objective diameter (mm)
-
40
-
Field of view (°)
-
4
-
Apparent field of view (°) *1
-
52.1
-
Field of view at 1000m (m)
-
70
-
Exit pupil
-
2.9
-
Twilight factor
-
8.2
-
Eye relief (mm)
-
13
-
Minimum Focus Distance (m) *2
-
5
-
Height (mm)
-
187
-
Width (mm)
-
165
-
Depth (mm)
-
81
-
Weight (g)
(w/o Battery) -
1,300
-
Adustment range for interpupillary distance (mm)
-
60-70
-
Dioptric adjustment range (±mm)
-
±2
-
Focus type
-
CF
-
Water resistant*3
-
1m-5min
-
Battery
-
AA×4 or Ni-MH×4
-
Operationg temperature
-
−10℃ - +50℃
Bundled item: Lens cap, eyepiece caps, case, strap and 4 AA alkaline batteries.
TS12×28
- Compact and lightweight with a stabilization correction of ±3 degrees.
- Ideal in a variety of settings, including concerts, theme parks, and bird-watching.
- Stabilization activates with a shift switch, providing effortless control during prolonged use.
- Provides sharp image at a high magnification without the use of a tripod.
Specifications
-
Magnification
-
12
-
Objective diameter (mm)
-
28
-
Field of view (°)
-
4.2
-
Apparent field of view (°) *1
-
47.5
-
Field of view at 1000m (m)
-
73
-
Exit pupil
-
2.3
-
Twilight factor
-
5.4
-
Eye relief (mm)
-
16.5
-
Minimum Focus Distance (m) *2
-
3.5
-
Height (mm)
-
148
-
Width (mm)
-
109
-
Depth (mm)
-
74
-
Weight (g)
(w/o Battery) -
485
-
Adustment range for interpupillary distance (mm)
-
56-70
-
Dioptric adjustment range (±mm)
-
±2
-
Focus type
-
CF
-
Water resistant*3
-
-
-
Battery
-
CR2×1
-
Operationg temperature
-
−10℃ - +50℃
TS16×28
- Compact and lightweight with a stabilization correction of ±3 degrees.
- Ideal in a variety of settings, including concerts, theme parks, and bird-watching.
- Stabilization activates with a shift switch, providing effortless control during prolonged use.
- Provides sharp image at a high magnification without the use of a tripod.
-
Magnification
-
16
-
Objective diameter (mm)
-
28
-
Field of view (°)
-
4
-
Apparent field of view (°) *1
-
58.4
-
Field of view at 1000m (m)
-
70
-
Exit pupil
-
1.8
-
Twilight factor
-
3.1
-
Eye relief (mm)
-
16
-
Minimum Focus Distance (m) *2
-
3.5
-
Height (mm)
-
148
-
Width (mm)
-
120
-
Depth (mm)
-
74
-
Weight (g)
(w/o Battery) -
560
-
Adustment range for interpupillary distance (mm)
-
56-70
-
Dioptric adjustment range (±mm)
-
±2
-
Focus type
-
CF
-
Water resistant*3
-
-
-
Battery
-
CR2×1
-
Operationg temperature
-
−10℃ - +50℃
Bundled item: Eyepiece cap, soft-case, neckstrap and CR2 lithium battery.
- *1 Apparent field of view based on ISO14132-1:2002
- *2 MOD may differ depends on the viewer's sight in case of Indivisual focus.
- *3 Do not mean it can be used in water.
