Achieved high image quality by incorporating an HD image CMOS sensor
High-quality endoscopic images are displayed large on the monitor to support smooth insertion, observation, and treatment.
EB-580T with VP-7000 and BL-7000
EB-840T with VP-7000 and BL-7000

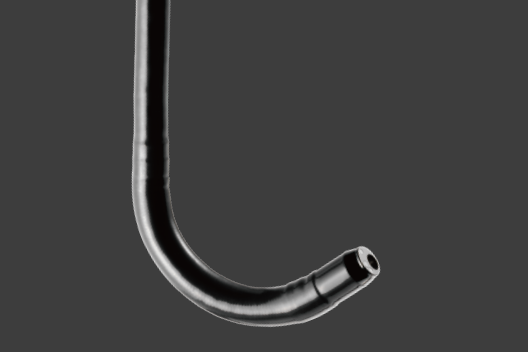

Maintaining the previous suction performance, the tip diameter was slimmed to improve bronchi insertion.
Matching the shapes of the index and rotation ring bumps helps identify the rotation center.
Control portion equipped with a wider grip, suction valve, and 4 switches.
It can be connected to the light source or processor in a single step without the need for additional cables.
Increased contrast in the red colour spectrum enhances the visibility of mucosal changes.
The manipulation of light wavelengths results in improved contrast imaging.
Compatible with low temperature plasma sterilisation*.
- * STERRAD® Systems provided by Advanced Sterilization Products, Inc.
| Processor EP-8000 | Product name： Processor GMDN： 34540 Generic name： Endoscopic video image processing/light source system |
|---|---|
| Processor VP-7000 | Product name： Processor GMDN： 18034 Generic name： Endoscopic video image processing unit |
| Light Source BL-7000 | Product name： Light source GMDN： 35158 Generic name： Endoscopic light source unit, line-powered |
| Processor EP-6000 | Product name： Processor GMDN： 34540 Generic name： Endoscopic video image processing/light source system |
- Field of view
120°
- Observation range
2-100mm
- Distal end diameter
4.8mm
- Insertion tube diameter
5.1mm
- Minimum diameter of instrument channel
2.2mm
- Bending capability
UP 210° ／ DOWN 130°
- Working length
600mm
- Total length
880mm
- Sterilization
STERRAD ／ EOG
- Product： Video endoscope
- GMDN： 17662
- Generic name： Flexible video bronchoscope, reusable
