Made of chemically stable polypropylene.
-
Applicable elements: M type cartridge (AS568 222 O-ring type, SOE: Single Open End)
-
Cartridge length: Single

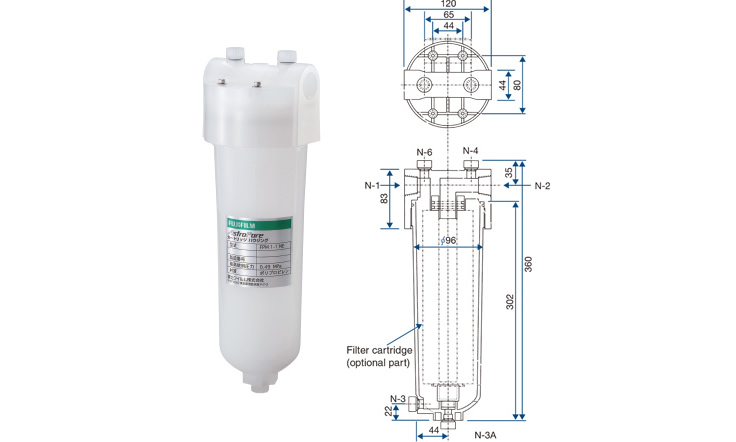

Appearance photo / Outline drawing
- Rough dimensions
As stated above
- Bore diameter
- N-1 Inlet
- Rc3/4 (20A)
- N-2 Outlet
- Rc3/4 (20A)
- N-3 Drain
- Rc1/4 (8A)
- N-4 Primary vent
- Rc1/4 (8A)
- N-6 Secondary vent
- Rc1/4 (8A)
- N-3A Drain
- Rc1/4 (8A)
- Withstand pressure
0.49MPa
- Maximum working temperature
60℃
- Material
Main body: Polypropylene
O-ring: EPDM
- * For details on the methods of use, refer to the instruction manual included with the product.
- * The housing may be built to order in terms of shape and size. For details, contact your sales agent.
- * Specifications are subject to change for improvement purposes without prior notice.
