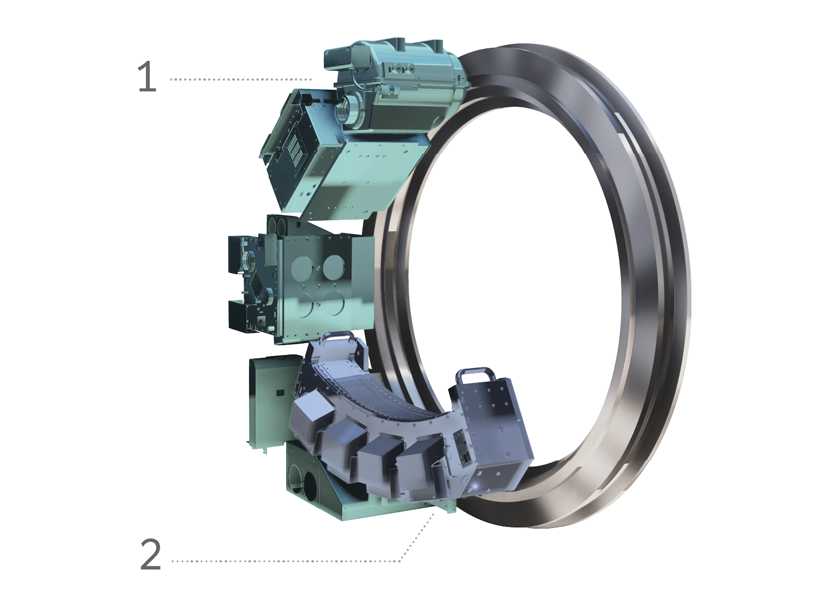

1.Highly efficient X-ray generation system
The high-efficiency generator and 6 MHU X-ray tube equipment provide a high power output of 60 kW (up to 670 mA) with a 75 kVA power supply capacity. It also supports flexible setting of shooting conditions when shooting with low tube voltage.
2. Full Digital HV Detector
The optical system has been redesigned and the detector has been redesigned. The new detector uses MaxiLight technology to help improve image quality.
MaxiLight technology eliminates the need for analog wiring between boards, and the full digital HV detector reduces electrical noise.

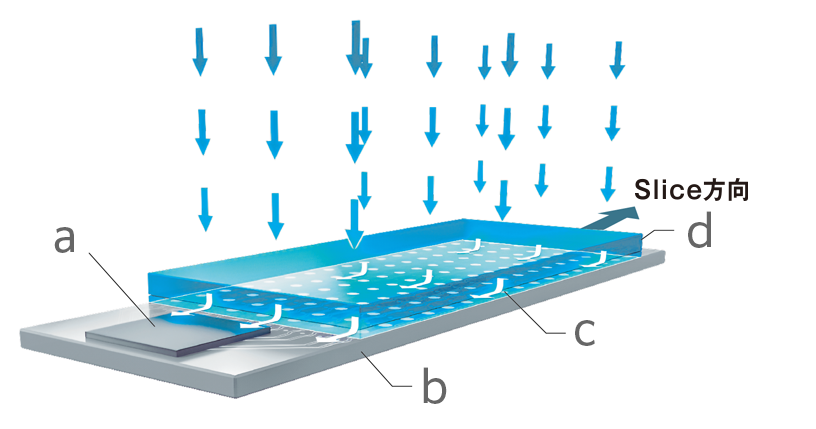

a. AD conversion circuit
b. Sensor board
c. Photodiode
d. Scintillator
