Item |
Unit |
Performance |
Remarks |
|
|---|---|---|---|---|
|
Pore size |
µm |
0.03 |
||
|
Size |
Length |
mm |
- |
*1 |
|
Outer diameter |
mm |
70 |
|
|
|
Maximum |
25℃ |
MPa |
0.54 (Positive pressure) |
|
|
25℃ |
MPa |
0.34 (Negative pressure) |
|
|
|
Heat resistance |
MAX℃ |
90 |
*2 |
|
|
PH area to be used |
|
1 - 14 |
*3 |
|
- *1 Refer to the “Dimensions of the cartridge.”
- *2 Continuous operating temperature
- *3 In the case of using the cartridge for chemical fluid filtration, prior evaluation should be carried out under the planned conditions of use.
|
Shape |
Length |
Overall length |
|---|---|---|
|
M type |
S (Single) |
264 |
|
D (Double) |
512 |
|
|
T (Triple) |
761 |
|
|
MP type |
S (Single) |
313 |
|
D (Double) |
561 |
|
|
T (Triple) |
810 |
|
|
P type |
S (Single) |
319 |
|
D (Double) |
568 |
|
|
T (Triple) |
816 |
|
|
PM type |
S (Single) |
264 |
|
D (Double) |
512 |
|
|
T (Triple) |
761 |
The following data have been obtained by checking the filtration performance after 24-hour immersion testing at normal temperature. Please check the chemical compatibility under your conditions before use.
Ο - Compatible, × - Incompatible
|
Classification |
Chemical name |
Compatibility |
|---|---|---|
|
Hydrocarbon |
Benzene |
× |
|
Halogenated Hydrocarbon |
Trichloroethylene |
× |
|
Ether |
Ethyl ether |
× |
|
Glycol |
Propylene glycol |
Ο |
|
Alcohol |
Methanol |
Ο |
|
Ethanol |
Ο |
|
|
lsopropanol |
Ο |
|
|
Benzyl alcohol |
× |
|
|
Ketone |
Acetone |
× |
|
Ester |
Ethyl acetate |
× |
|
Others |
Nitric acid (6 mol/L) |
Ο |
|
Sulfuric acid (3 mol/L) |
Ο |
|
|
Hydrochloric acid (6 mol/L) |
Ο |
|
|
Sodium hydroxide (6 mol/L) |
Ο |
|
|
Aqueous ammonia (1 mol/L) |
Ο |

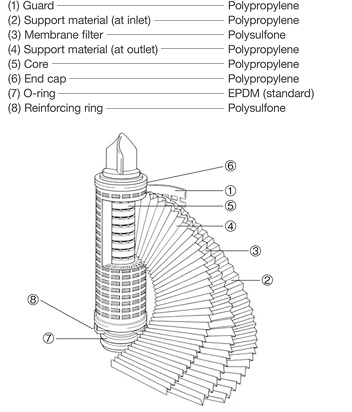

The cartridge contains a PSE membrane that is pleated and integrally molded by thermal fusion bonding with a polypropylene support material. (Example: P type)
