The content on this page is intended to healthcare professionals and equivalents.

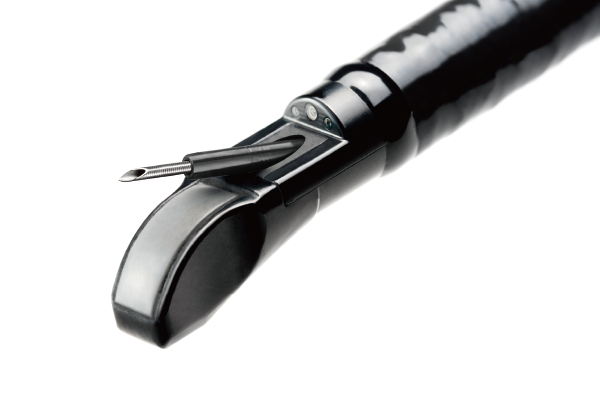

![[photo] Distal end of EB-710US endoscope with functional parts](https://asset.fujifilm.com/www/ie/files/2026-04/2ce38c99ac7875c85141f900f0da9876/pic_bronchoscopes_eb710us.png)
- Viewing direction
10° （Forward Oblique）*
- Field of view
120°
- Observation range
2-50 mm
- Distal end diameter
6.4 mm
- Insertion tube diameter
5.9 mm
- Minimum diameter of instrument channel
2.2 mm
- Bending capability
UP 180° ／ DOWN 90°
- Working length
610 mm
- Total length
890 mm
- * This means the same as “oblique view”.
![[photo] Distal end of EB-530US endoscope with functional parts](https://asset.fujifilm.com/www/ie/files/2025-03/b2be9c87a6a544df3ca56a279f7ae0a1/pic_ultrasonic-bronchoscopes_01.png)

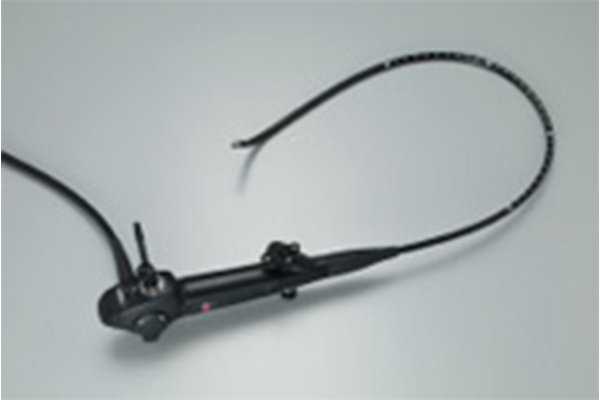

![[photo] EB-530US endoscope insertion tube, attached to control portion, bent and wrapped into circle](https://asset.fujifilm.com/www/ie/files/2025-03/10ccaf2c37fbafd801c4a06a7faead65/pic_ultrasonic-bronchoscopes_02.png)
- Viewing direction
10° （Forward Oblique）
- Field of view
120°
- Observation range
3-100 mm
- Distal end diameter
6.7 mm
- Insertion tube diameter
6.3 mm
- Minimum diameter of instrument channel
2.0 mm
- Bending capability
UP 130° ／ DOWN 90°
- Working length
610 mm
- Total length
880 mm
- Scanning mode
Color Doppler, Power Doppler, Pulse Wave, B-mode, M-mode
- Scanning method
Electronic convex scanning method
- Scanning angle
65° （Combination with SU-1）
- Frequency
5 MHz ／ 7.5 MHz ／ 10 MHz ／ 12 MHz
- Product： Ultrasonic Endoscope
- GMDN： 44921
- Generic Name： Flexible ultrasound bronchoscope
