Technical Data & Line up
LTO Generation | LTO CL | LTO-5/5 WORM | LTO-6/6 WORM | LTO-7/7 WORM | LTO-8/8 WORM | LTO9/9 WORM | LTO-10/10 WORM |
---|---|---|---|---|---|---|---|
Basic Specifications | |||||||
Native Capacity (Compressed) | - | 1.5TB (3.0TB) | 2.5TB (6.25TB) | 6TB (15TB) | 12TB (30TB) | 18TB (45TB) | 30TB (75TB) |
Max.Transfer Rate*1 (Compressed) | - | 140MB/sec. (Up to 280MB/sec.) | 160MB/sec. (Up to 400MB/sec.) | 300MB/sec. (Up to 750MB/sec.) | 360MB/sec. (Up to 750MB/sec.) | 400MB/sec. (Up to 1,000MB/sec.) | |
Servo Band | - | Timing-based servo | |||||
Cartridge Memory | 32,786bits (4,096bytes); Internal EEPROM | 65,280bits (8,160bytes); Internal EEPROM | 130,816bits(16,352bytes); Internal EEPROM | 261,888bits (32,736bytes); Internal EEPROM | |||
Physical Characteristics | |||||||
Tape Width | - | 12.65mm | |||||
Tape Thickness | 8.9μm | 6.4μm | 6.1μm | 5.6μm | 5.2μm | ||
Tape Length | 319m | 846m | 960m | 1,035m | |||
Cartridge Dimensions (L x W x H) | 102 x 105.4 x 21.5 mm | ||||||
Recommended Operation Environment | |||||||
Temperature | 10~45℃ | 15~25℃ | |||||
Humidity | 10~80%RH | 20~50%RH | |||||
Max Wet Bulb Temperature / Max Dew Point Temperature | 26℃ (Max Wet Bulb Temperature) | 22℃ (Max Dew Point Temperature) | |||||
Recommended Storage Environment | |||||||
Temperature | 16~35℃(Short Term)/16~25℃(Long Term) | 15~25℃ | |||||
Humidity | 20~80%RH(Short Term)/20~50%RH(Long Term) | 20~50%RH | |||||
Max Wet Bulb Temperature / Max Dew Point Temperature | 26℃ (Max Wet Bulb Temperature) | 22℃ (Max Dew Point Temperature) | |||||
Allowable Operation Environment | |||||||
Temperature | 10~45℃ | 15~35℃ | |||||
Humidity | 10~80%RH | 20~80%RH | |||||
Max Wet Bulb Temperature / Max Dew Point Temperature | 26℃ (Max Wet Bulb Temperature) | 22℃ (Max Dew Point Temperature) | |||||
Allowable Storage Environment | |||||||
Temperature | 16~35℃(Short Term)/16~25℃(Long Term) | 15~35℃ | |||||
Humidity | 20~80%RH(Short Term)/20~50%RH(Long Term) | 20~80%RH | |||||
Max Wet Bulb Temperature / Max Dew Point Temperature | 26℃ (Max Wet Bulb Temperature) | 22℃ (Max Dew Point Temperature) |
- *1 Depends on the drive interface.
- * The Universal Cleaning Cartridges (LTO CL) are designed for use in all LTO Ultrium 1 through 10 drives.
Specific revisions of firmware may be required for proper operation. - * WORM:WORM(Write Once Read Many)is data cartridge in which information, once written, cannot be modified.
It is a cost-effective storage capability which ensures data is not overwritten, and to help address compliance regulations.
Part Number / JAN Code
DATA | LTO-5 | LTO-6 | LTO-7 | LTO-8 | LTO-9 | LTO-10 |
---|---|---|---|---|---|---|
Part Number | LTO FB UL-5 1.5T J | LTO FB UL-6 2.5T J | LTO FB UL-7 6.0T J | LTO FB UL-8 12.0T J | LTO FB UL-9 18.0T | LTO FB UL-10 30.0T |
JAN Code | 4547410 119169 | 4547410 237061 | 4547410 316971 | 4547410 364828 | 4547410 441239 | 4547410 556902 |
WORM | LTO-5 WORM | LTO-6 WORM | LTO-7 WORM | LTO-8 WORM | LTO-9 WORM | LTO-10 WORM |
---|---|---|---|---|---|---|
Part Number | LTO FB UL-5WORM 1.5T J | LTO FB UL-6WORM 2.5T J | LTO FB UL-7WORM 6.0T J | LTO FB UL-8WORM 12.0T J | LTO FB UL-9WORM 18.0T | LTO FB UL-10WORM 30.0T |
JAN Code | 4547410 119183 | 4547410 237078 | 4547410 316995 | 4547410 364835 | 4547410 441246 | 4547410 556919 |
- The Cleaning Cartridge is universally usable for all LTO-5/6/7/8/9/10 drives. (Someexceptions may apply.)
- The WORM type (Write Once Read Many) is a data cartridge that can be recorded onlyonce. It is ideal for securely storing data, as it prevents alterations or accidental deletion ofrecorded data.
Media / Drive compatibility
〇:Read/write △:Read only(no writing) ×:No read/write
Media/Drive | LTO-10 Drive | LTO-9 Drive | LTO-8 Drive | LTO-7 Drive | LTO-6 Drive | LTO-5 Drive |
---|---|---|---|---|---|---|
LTO-10 | 〇 | × | × | × | × | × |
LTO-9 | × | 〇 | × | × | × | × |
LTO-8 | × | 〇 | 〇 | × | × | × |
LTO-7 | × | × | 〇 | 〇 | × | × |
LTO-6 | × | × | × | 〇 | 〇 | × |
LTO-5 | × | × | × | △ | 〇 | 〇 |
Eco Pack
Eco-Pack: Smarter, Greener, Better Packaging
Streamline your operations with Eco-Pack, the sustainable packaging solution that eliminates unnecessary materials while boosting efficiency.

- Save Time: Cut unboxing time by 85%*2.
- Reduce Waste: Shrink waste volume to one-third of standard products.
- Greener: Lower CO2 emissions by 85%.
- Save Space: Free up 30% more storage*3.
- Package Unit: Sold in units of 20 cartridges.
- *2 Figures obtained by comparing packaging material opening times.
- *3 Compared to our standard products.
Library Pack

The library pack protects the cartridges against impact if dropped and provides also added protection against dust and humidity.
It's a good and safe storage and archival solution offering easy and quick unpacking, carrying and piling.
Data Tape Pro Case
The DATA TAPE COURIER PROFESSIONAL CASE, a new media container made of industrial-strength, lightweight, high-density polyethylene. The case features heavy-duty lockable compression clasps and soft interior contact points that create a durable seal. It can be used to transport data cartridges from one location to another or to off-site storage, in fulfillment of your company's commercial, proprietary and regulatory requirements. The DATA TAPE COURIER PROFESSIONAL CASE is certified and approved by FUJIFILM to protect LTO cartridges and enterprise cartridges.
Product Lineup
PRO CASE WITH LTO TRAY

Holds 18 LTO cartridges in their plastic cases
PRO CASE WITH SOFT LTO TRAY

Holds 14 LTO cartridges without their plastic cases
PRO CASE WITH ENTERPRISE TRAY

Holds 20 Enterprise cartridges
Warranty
Warranty

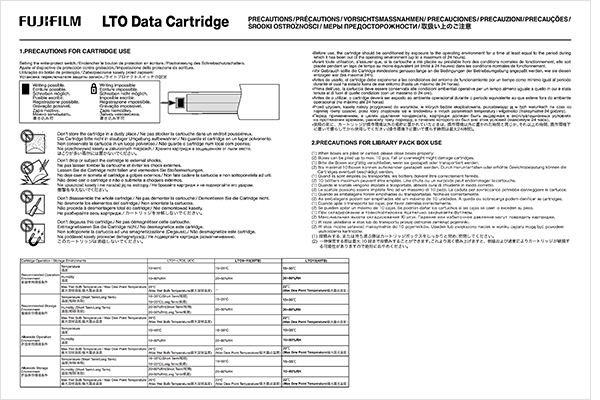

Precautions
Precautions

Disposal of Tape
Notice
