CF-ZA-1S Series

NEW

CF-ZA-1S series supports large high-resolution sensor of 1.2" type with 2.74µm pixel pitch.

"4D High Resolution" lenses

CF-ZA-1S Series

Support 1.2" type large image sensor.
Model Compatible format sizes Focal length
(mm)
4/3 1.2 1.1 1 1/1.2 2/3 1/1.8 1/2 1/3
CF8ZA-1S 8
CF12ZA-1S 12
CF16ZA-1S 16
CF25ZA-1S 25
CF35ZA-1S 35
CF50ZA-1S 50

●:Compatible sensor size (std.): Ideal size to maximize the target resolution.
○:Compatible sensor size (max.): Adaptable sensor size varies depending on the model. Select a lens after checking the peripheral light amount and resolution.

Main features

Relative illumination reaches up to above 90%*2

In general, the illumination of the peripheral area of the image is determined by "relative illumination" and "chief ray angle (CRA)". CF-ZA-1S series adopts the original optical design of Fuji film with the relative illumination up to above 90%*2 (lens monomer) and supports 1.2" type large sensor, and restrains CRA below 5°. Because the two are relatively balanced to each other, the clear and bright image can be obtained from the peripheral area.

  • * 2 In the case of 1.1" type with F4.0

In general, in order to improve the difference between light and shade in the center and peripheral area, the correction treatment of the image can only highlight the "noise" but cannot obtain good image, while CF-ZA-1S series has no need to correct illumination and realizes uniform illumination including the peripheral area, thus the high-quality image with low noise can be obtained. It is most applicable to the inspection demanding higher reliability.

<Real image without correction treatment>

with 30% peripheral illumination
with 80% peripheral illumination

Adopt the FUJIFILM's original mechanical structure design of "vibration-resistance and impact-resistance"

High convenience and reliability

By adopting internal mechanical focus, the overall length of lens will not change when focused Provided with 3 positioning holes for fixation of the Iris and focusing on lens body and the positioning hole can be selected according to setting conditions.

Having a indication sign on the lens that shows the optimal focus position when the subject is 50cm apart helps you to detect the flange back dislocation effectively.

The "anti-separation structure" is implemented on the knob of the Iris and focusing screw even if it is shaken violently, the screw will not fall off.

When manufactured, the optical performance results of each lens are managed by the factory.
As the tool for FUJIFILM quality management, the lens cone of each lens is printed with QR code.

Lineups

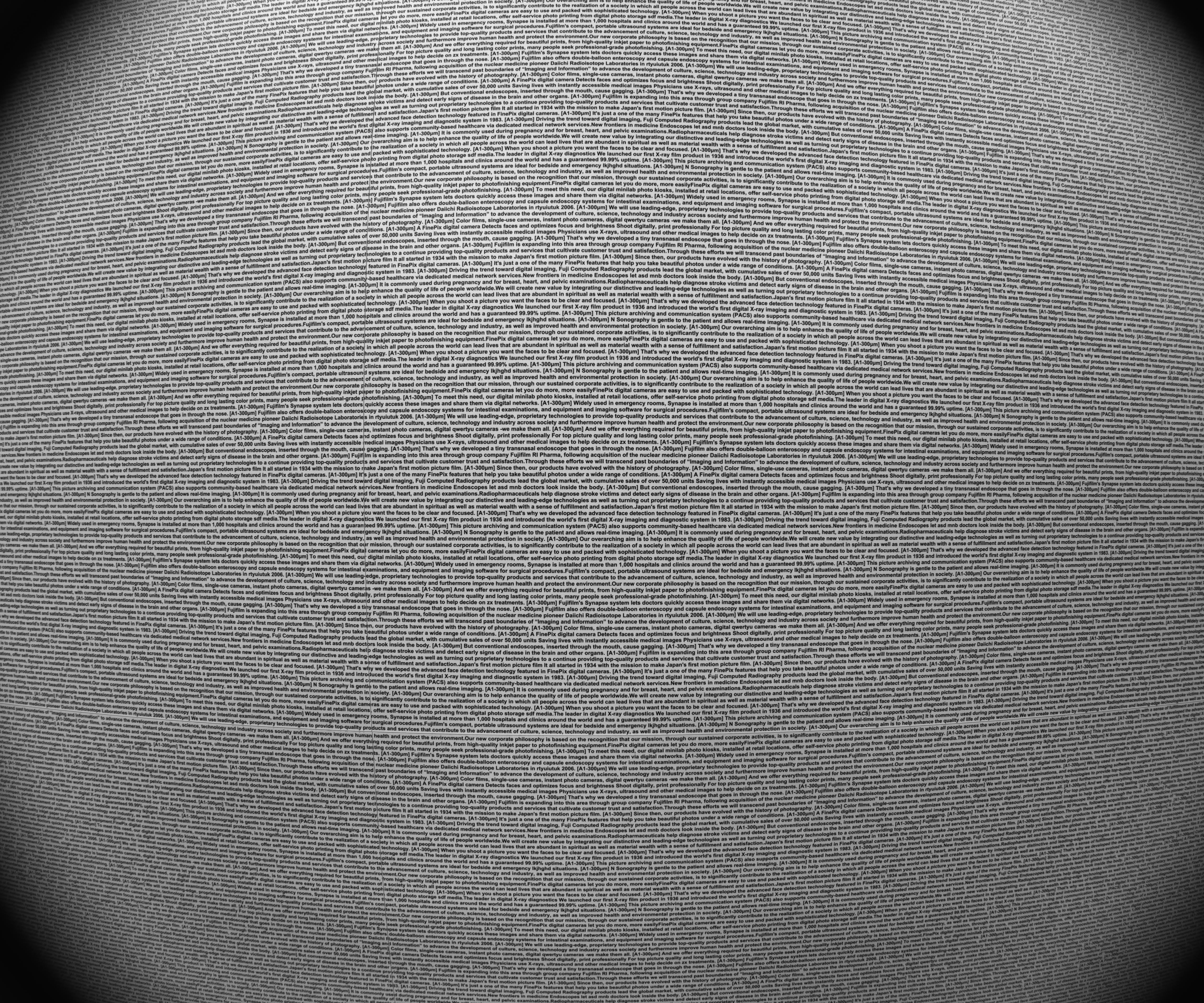

Focal length [mm]8
Iris range (F. no)F1.8-F16
Angle of view85.7°×67.5°
Working Distance*6(mm)∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M52 x 0.75
MountC-mount
Weight (approx.) [g]180
Sensor size (std.)*71.1" (2.5μm)
1.2" (2.74μm)
Sensor size (max.)*8
CRA (Chief Ray Angle)4.5
TV distortion [%]-4.81
Dimension [mm]Φ54×67

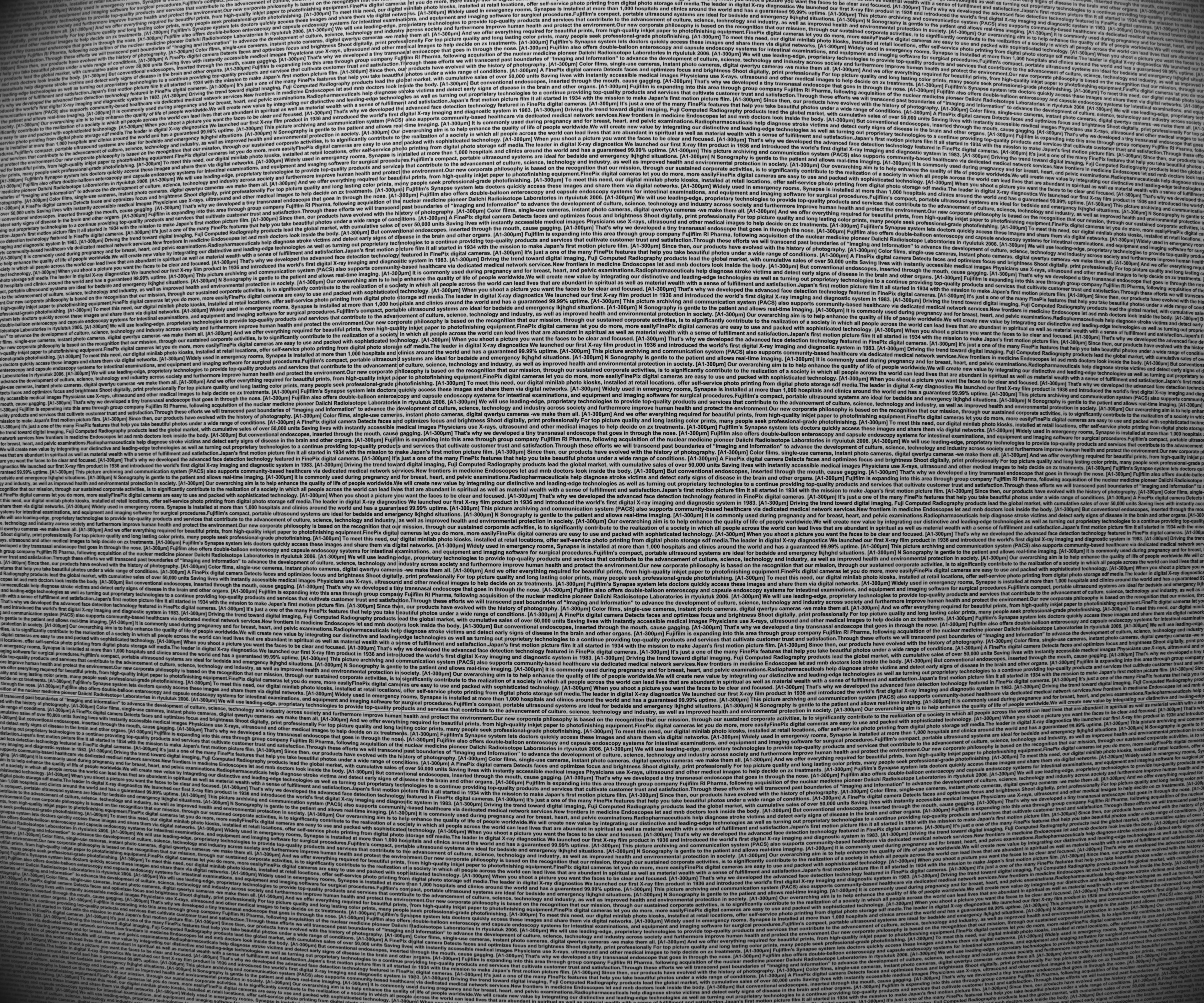

Focal length [mm]12
Iris range (F. no)F1.8-F16
Angle of view62.5°×47.8°
Working Distance*6(mm)∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M37.5 x 0.5
MountC-mount
Weight (approx.) [g]180
Sensor size (std.)*71.1" (2.5μm)
1.2" (2.74μm)
Sensor size (max.)*8
CRA (Chief Ray Angle)4.5
TV distortion [%]-2.82
Dimension [mm]φ39×67.6

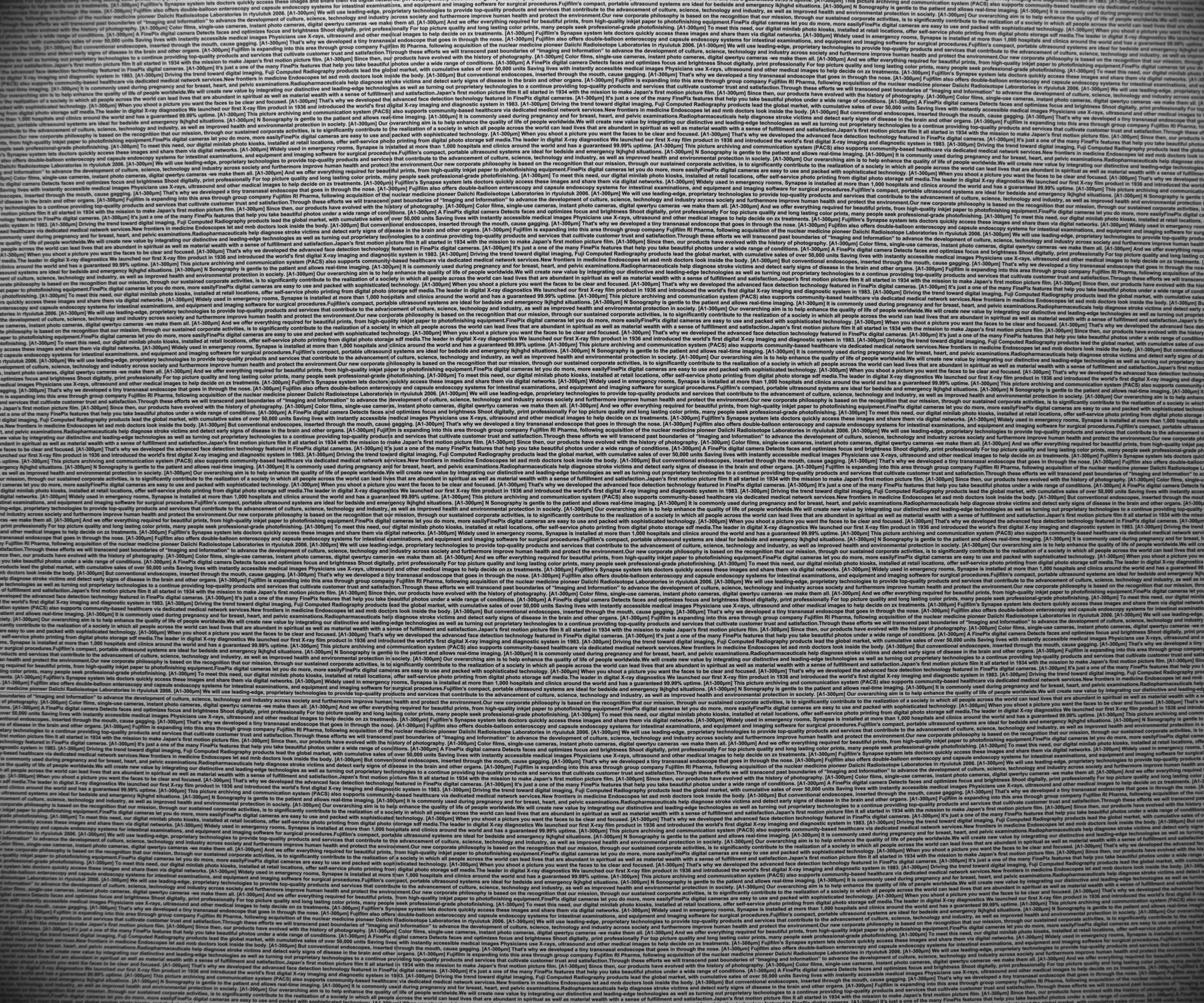

Focal length [mm]16
Iris range (F. no)F1.8-F16
Angle of view47.3°×36.1°
Working Distance*6(mm)∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M37.5 x 0.5
MountC-mount
Weight (approx.) [g]180
Sensor size (std.)*71.1" (2.5μm)
1.2" (2.74μm)
Sensor size (max.)*8
CRA (Chief Ray Angle)4.9
TV distortion [%]-0.80
Dimension [mm]φ39×67.6

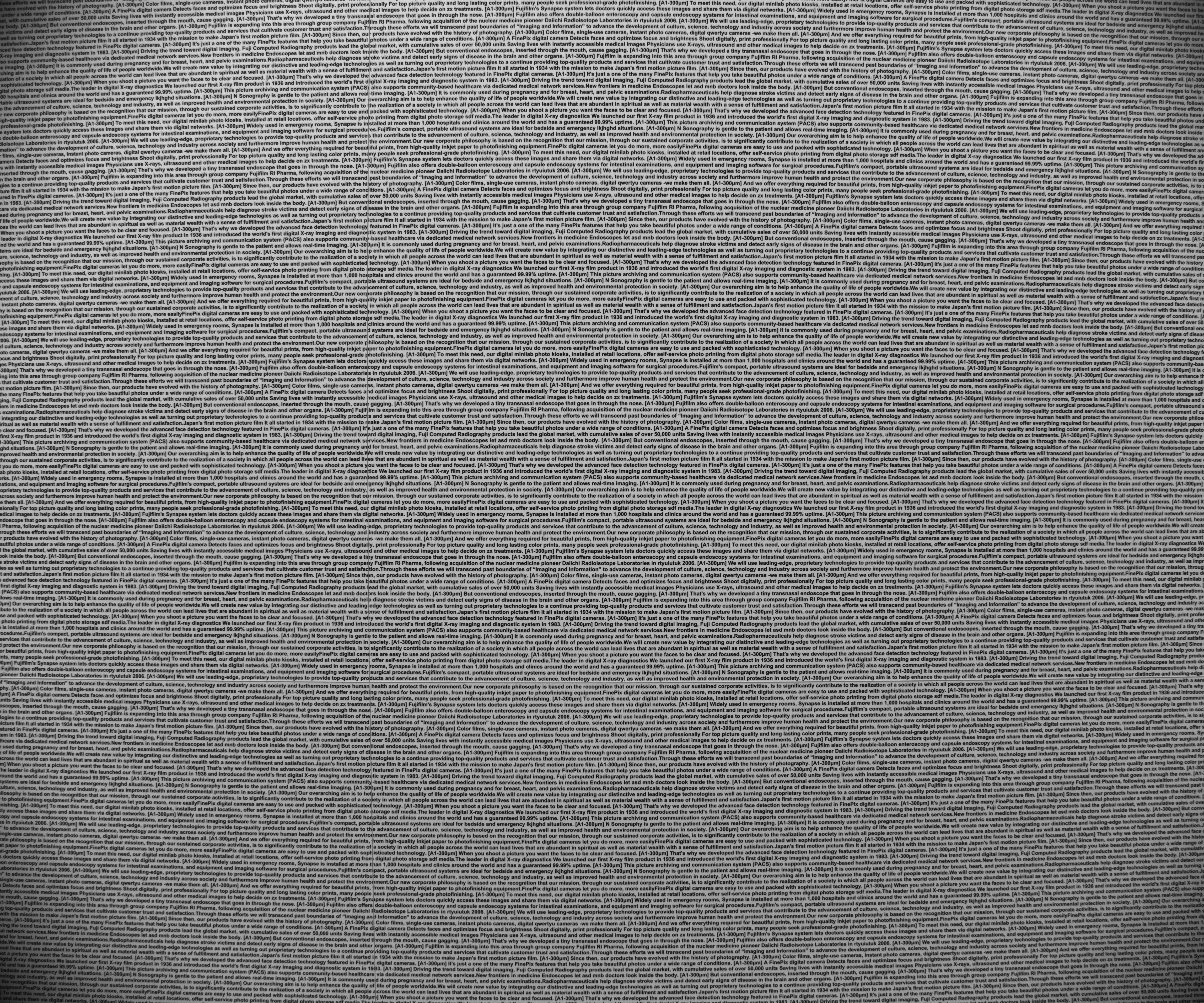

Focal length [mm]25
Iris range (F. no)F1.8-F16
Angle of view32.9°×24.8°
Working Distance*6(mm)∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M37.5 x 0.5
MountC-mount
Weight (approx.) [g]170
Sensor size (std.)*71.1" (2.5μm)
1.2" (2.74μm)
Sensor size (max.)*84/3" (3.45μm)
CRA (Chief Ray Angle)2.7
TV distortion [%]-0.83
Dimension [mm]φ39×67.3

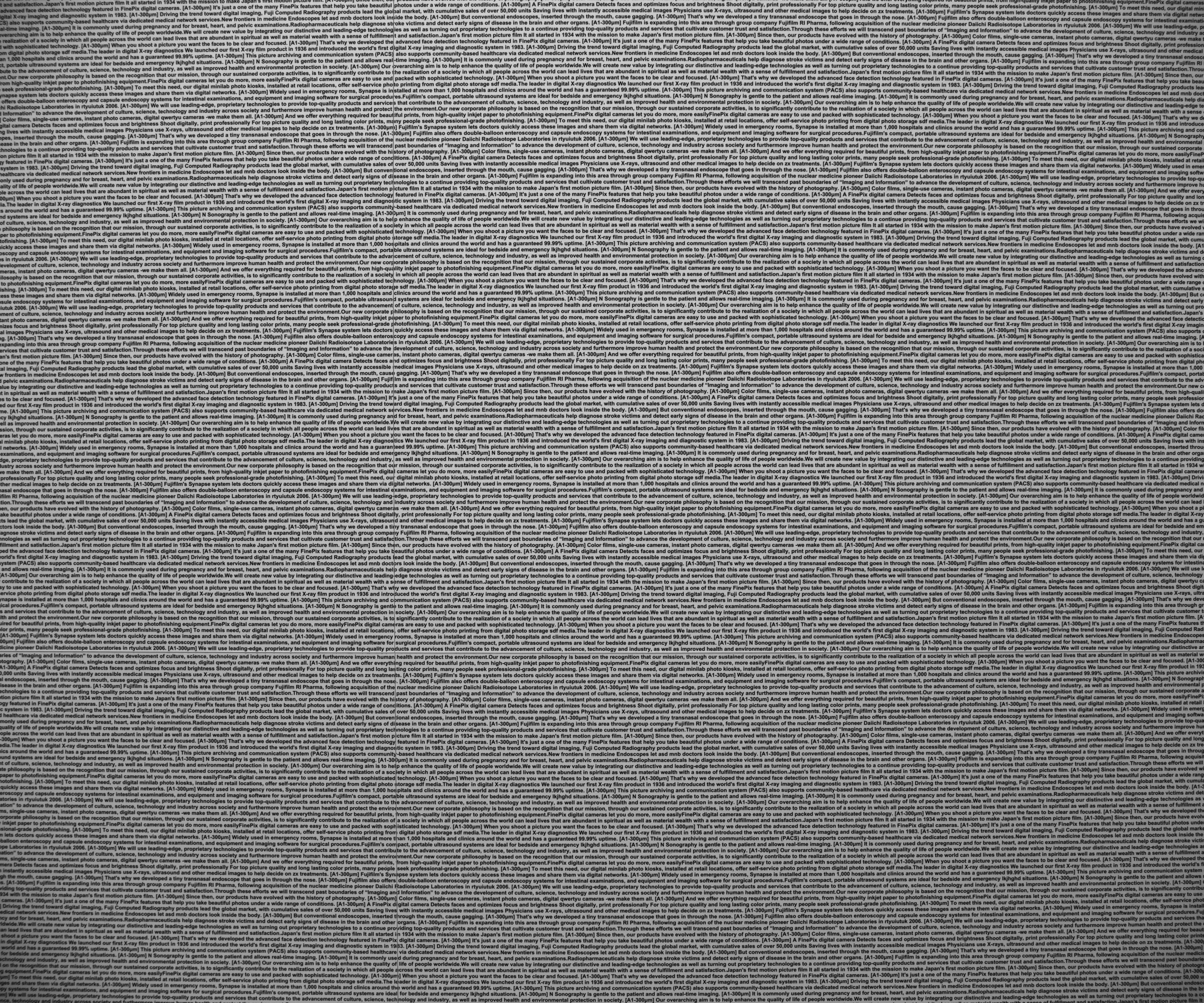

Focal length [mm]35
Iris range (F. no)F1.8-F16
Angle of view23.0°×17.3°
Working Distance*6(mm)∞‐200
Operation of focusManual
Operation of irisManual
Filter thread [mm]M37.5 x 0.5
MountC-mount
Weight (approx.) [g]165
Sensor size (std.)*71.1" (2.5μm)
1.2" (2.74μm)
Sensor size (max.)*84/3" (3.45μm)
CRA (Chief Ray Angle)4.5
TV distortion [%]-0.32
Dimension [mm]φ39×67.3



  • *6 From front of lens barrel.
  • *7 Sensor size (std.): Ideal size to maximize the target resolution.
  • *8 Sensor size (max.): Adaptable sensor size varies depending on the model. Please check the amount of light and resolution on the edges pertaining to your particular application.

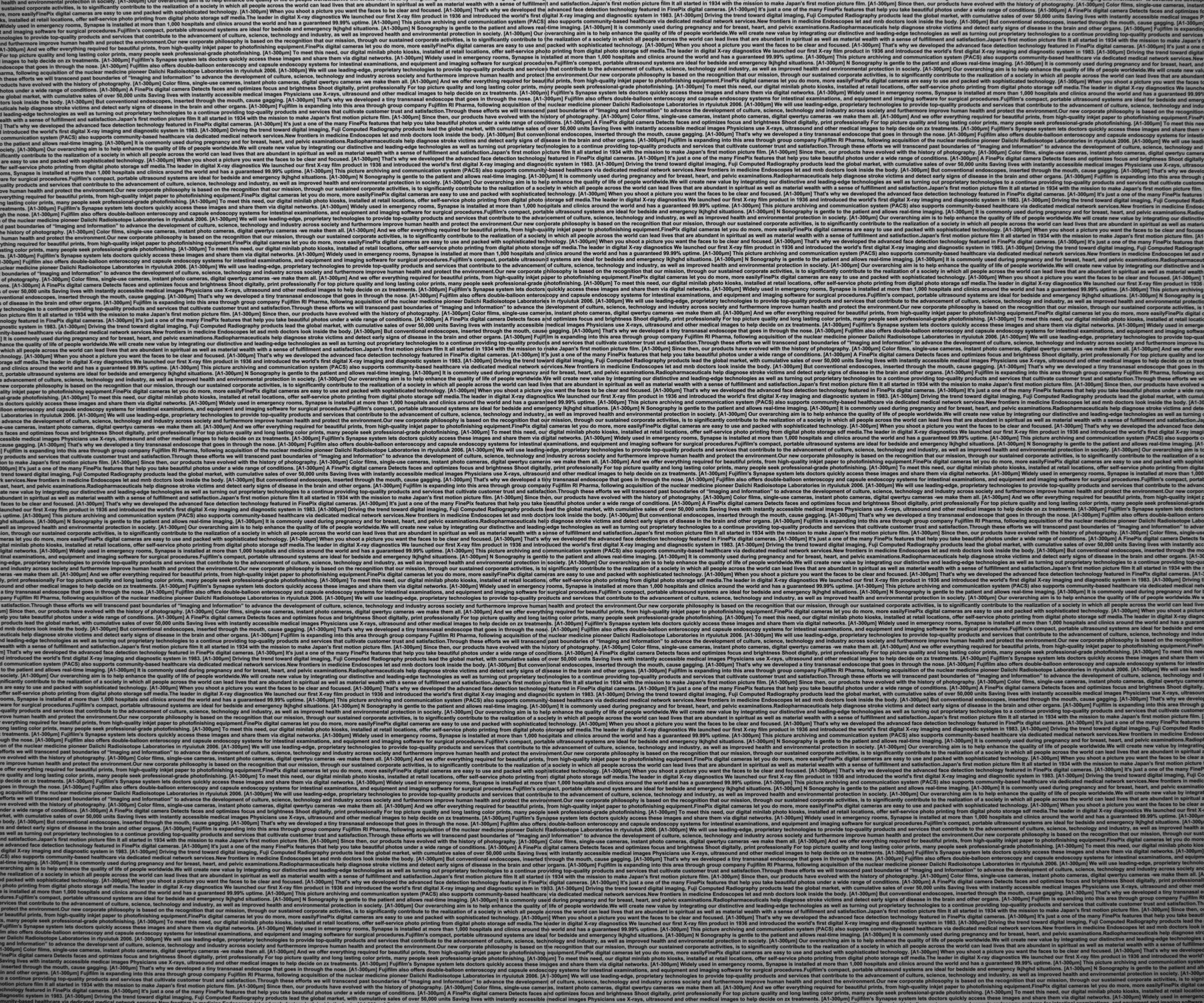

Focal length [mm]50
Iris range (F. no)F2.4-F16
Angle of view16.6°×12.5°
Working Distance*6(mm)∞‐200
Operation of focusManual
Operation of irisManual
Filter thread [mm]M37.5 x 0.5
MountC-mount
Weight (approx.) [g]155
Sensor size (std.)*71.1" (2.5μm)
1.2" (2.74μm)
Sensor size (max.)*84/3" (3.45μm)
CRA (Chief Ray Angle)4.8
TV distortion [%]-0.17
Dimension [mm]φ39×68
