Projector FP-ZUH12000 - Specifications

An ultra-short-throw projector delivering 4K high-resolution visuals and superior color accuracy to create an immersive viewing experience.

Delivery Specifications FP-ZUH12000, FP-ZL034, FP-ZL050, FP-ZL125
Downloads
Main Specifications
Model name FP-ZUH12000
DLP® chip Size 0.8 in, 16:10 aspect ratio
Display method 1 Chip DLP®
Number of pixels 2,304,000 pixel (1920 x 1200)
Lens Optional Lenses (Sold separately)
Light source Laser diode
Brightness [ANSI lm*1] 12,000lm / 12,400 lm (Center)*2
Light source life*3 Up to about 20,000 hours
Contrast ratio*4 25,000:1
Maximum display resolution(WxH) 4K 3840 x 2400 (4K mode ON)
Terminals Video IN HDMI®1

TypeA
HDMI®2.0 (Compatible with HDCP 2.3)
HDMI®2

TypeA
HDMI®2.0 (Compatible with HDCP 2.3)
HDBaseT™

RJ-45
HDBaseTTM 3.0
SDI BNC
12G/3G SDI
Video OUT HDMI® TypeA
HDMI® 2.0 (Compatible with HDCP 2.3)
SDI BNC
12G/3G SDI
Control LAN

RJ-45
for network connection (10BASE-T/100Base-TX)
HDBaseT™ RJ-45
for projector connection control
RS-232C D-Sub 9Pin male
for projector connection control
Remote IN REMOTE M3.5mm stereo mini jack
for wired remote control
Others USB

TypeA
DC 5V 2A(Max), for maintenance
Power supply AC 100-120V, AC 220-240V 50/60Hz
Power consumption Maximum 900W
Normal 780W
Eco 400W
Standby Approx.0.5W
Network standby Approx.8.0W
Dimensions 535mm (W) x 396mm (D) x 189mm (H) (Excluding adjustable feet and protruding parts)
Weight Approx.18.1kg (39.9lb)
Noise level*5 Normal 38dB
Eco 36dB
Operating environment Operating temperature 0-40°C(32-104°F)
Operating humidity 10-85% (without condensation)
Storage temperature -20-60℃ (-4-140°F)
Accessories included Power cord 3.0m (9.8ft)
Lens adapter (for FP-ZL034)
Adapter cap
Body cap
Remote control unit
Remote control battery (AAA type x2)
Basic manual
  • *1 Brightness value is the average for this model at the time of shipment, based on ANSI standards.
    Measured with optional FP-ZL125 lens at 100% Light Output and "Bright" Picture Mode.
  • *2 Brightness in the center area of the screen, measured with optional FP-ZL125 lens at 100% Light Output and "Bright" Picture Mode.
  • *3 The estimated time taken for the light source brightness to decrease by half. Varies with the operating environment and conditions of use.
  • *4 Based on "Dynamic Black" being ON.
  • *5 Acoustic noise level is measured in accordance with ISO 7779.

Product specifications and appearance are subject to change without advance notice

  • * DLP and DLP logo are trademarks or registered trademarks of Texas Instruments.
  • * The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
  • * HDBaseT and HDBaseT Alliance logo are trademarks of HDBaseT Alliance.

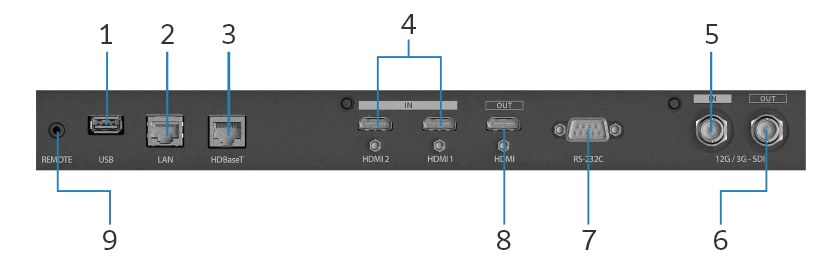

Interface Connectors
Description of the input terminal face of the Z-Projector
  1. USB(DC5.0V/2A)
  2. LAN
  3. HDBaseT
  4. HDMI IN 1/2
  5. 12G/3G SDI IN
  6. 12G/3G SDI OUT
  7. RS-232C
  8. HDMI OUT
  9. Wired Remote IN

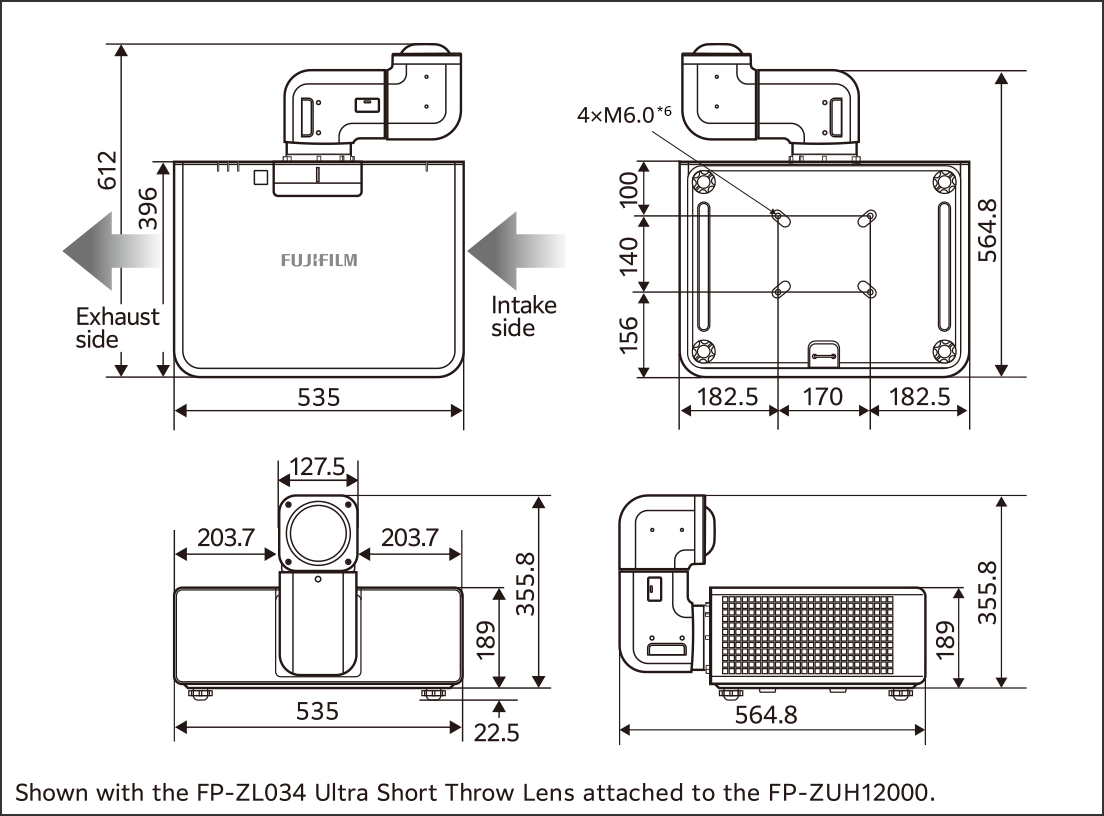

Dimension
Outline Drawing
Detailed size description of each part of Z-Projector

*6 For mounting hanging hardware

Projection Distance

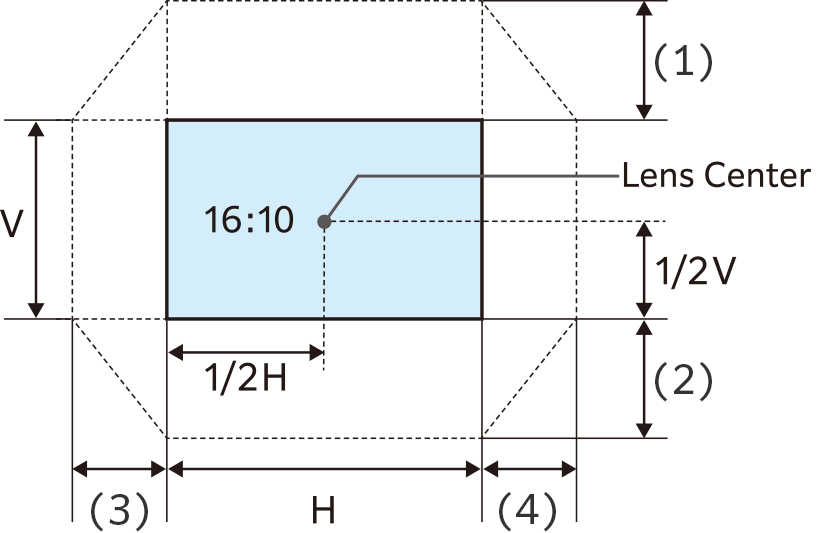

Lens Shift Range
FP-ZUH12000 lens shift adjustment range.
ItemFP-ZL034FP-ZL050FP-ZL125
(1)・(2)60% V53% V55% V
(3)・(4)30% H25% H25% H

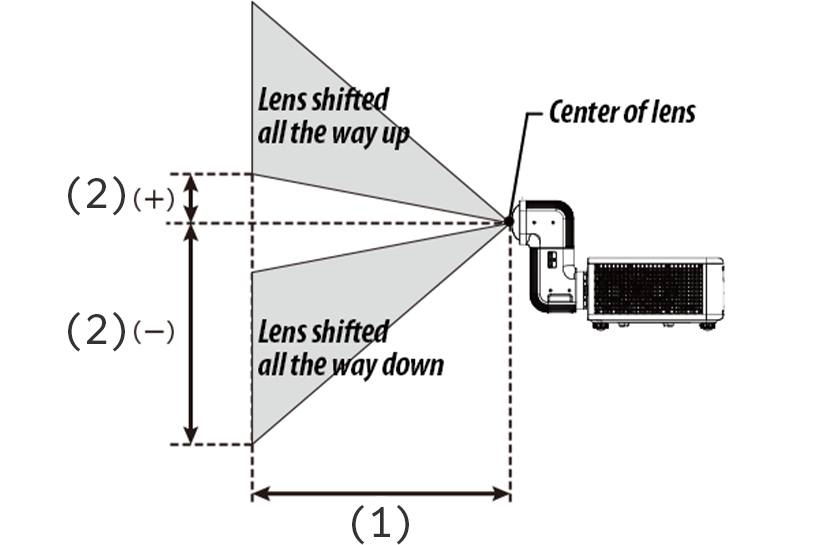

Projection Distance
Description of the screen shift range from the center of the lens
Projection Distances FP-ZL034
Screen aspect ratio 16:10
Projection lens Model No. FP-ZL034
Throw ratio (TR)*7 0.34 - 0.41
Screen dimensions (16:10) (1) Projection distance (cm/in) (2) Vertical shift (cm/in)
Diagonal (in) W (cm/in) x H (cm/in) Min. Zoom - Max. Zoom Low - High
80 172 × 108
67.8 × 42.4		 57 － 69
22.5 － 27.3		 -118 － +11
-46.6 － +4.2
90 194 × 121
76.3 × 47.7		 65 － 78
25.5 － 30.8

-133 － +12
-52.5 － +4.8
100 215 × 135
84.8 × 53.0		 72 － 87
28.4 － 34.4		 -148 － +13
-58.3 － +5.3
120 258 × 162
101.8 × 63.6 		 87 － 105
34.3 － 41.4		 -178 － +16
-70.0 －+ 6.4
150 323 × 202
127.2 × 79.5		 110 － 132
43.2 － 52.0		 -222 － +20
-87.4 － +7.9
180 388 × 242
152.6 × 95.4		 132 － 159
52.0 － 62.6		 -267 － +24
-104.9 － +9.5
200 431 × 269
169.6 × 106.0		 147 － 177
57.9 － 69.7		 -296 － +27
-116.6 － +10.6
250 538 × 337
212.0 × 132.5		 185 － 222
72.7 － 87.4 		 -370 － +34
-145.7 － +13.2
300 646 × 404
254.4 × 159.0		 222 － 267
87.4 － 105.1		 -444 － +40
-174.9 － +15.9
350 754 × 471
296.8 × 185.5		 259 － 312
102.1 － 122.7		 -518 － +47
-204.0 － +18.5
400 862 × 539
339.2 × 212.0		 297 － 357
116.9 － 140.4		 -592 － +54
-233.2 － +21.2
FP-ZL050
Screen aspect ratio 16:10
Projection lens Model No. FP-ZL050
Throw ratio (TR)*7 0.50 - 0.65
Screen dimensions (16:10) (1) Projection distance (cm/in) (2) Vertical shift (cm/in)
Diagonal (in) W (cm/in) x H (cm/in) Min. Zoom - Max. Zoom Low - High
80 172 × 108
67.8 × 42.4 		 84 － 110
33.1 － 43.4		 -111 － +3
-43.7 － +1.3
90 194 × 121
76.3 × 47.7 		 95 － 125
37.5 － 49.0		 -125 － +4
-49.1 － +1.4
100 215 × 135
84.8 × 53.0		 106 － 139
41.8 － 54.7		 -139 － +4
-54.6 － +1.6
120 258 × 162
101.8 × 63.6		 128 － 168
50.5 － 66.1		 -166 － +5
-65.5 － +1.9
150 323 × 202
127.2 × 79.5		 161 － 211
63.6 － 83.1		 -208 － +6
-81.9 － +2.4
180 388 × 242
152.6 × 95.4		 195 － 254
76.6 － 100.2		 -250 － +7
-98.3 － +2.9
200 431 × 269
169.6 × 106.0		 217 － 283
85.3 － 111.6		 -277 － +8
-109.2 － +3.2
250 538 × 337
212.0 × 132.5		 272 － 355
107.0 － 140.0		 -347 － +10
-136.5 － +4.0
300 646 × 404
254.4 × 159.0		 327 － 428
128.7 － 168.4		 -416 － +12
-163.8 － +4.8
350 754 × 471
296.8 × 185.5		 382 － 500
150.5 － 196.8		 -485 － +14
-191.1 － +5.6
400 862 × 539
339.2 × 212.0		 437 － 572
172.2 － 225.2		 -555 － +16
-218.4 － +6.4
FP-ZL125
Screen aspect ratio 16:10
Projection lens Model No. FP-ZL125
Throw ratio (TR)*7 1.25 - 2.00
Screen dimensions (16:10) (1) Projection distance (cm/in) (2) Vertical shift (cm/in)
Diagonal (in) W (cm/in) x H (cm/in) Min. Zoom - Max. Zoom Low - High
80 172 × 108
67.8 × 42.4		 211 － 344
83.2 － 135.3		 -113 － +5
-44.5 － +2.1
90 194 × 121
76.3 × 47.7		 239 － 387
94.0 － 152.5		 -127 － +6
-50.1 － +2.4
100 215 × 135
84.8 × 53.0		 266 － 431
104.8 － 169.8		 -141 － +7
-55.6 － +2.6
120 258 × 162
101.8 × 63.6		 321 － 519
126.3 － 204.3		 -170 － +8
-66.8 － +3.2
150 323 × 202
127.2 × 79.5		 403 － 650
158.5 － 256.0		 -212 － +10
-83.5 － +4.0
180 388 × 242
152.6 × 95.4		 485 － 782
190.8 － 307.8		 -254 － +12
-100.2 － +4.8
200 431 × 269
169.6 × 106.0		 539 － 869
212.3 － 342.2		 -283 － +13
-111.3 － +5.3
250 538 × 337
212.0 × 132.5		 676 － 1088
266.1 － 428.5		 -353 － +17
-139.1 － +6.6
300 646 × 404
254.4 × 159.0		 812 － 1307
319.8 － 514.7		 -424 － +20
-166.9 － +7.9
350 754 × 471
296.8 × 185.5		 949 － 1526
373.6 － 600.9		 -495 － +24
-194.8 － +9.3
400 862 × 539
339.2 × 212.0		 1085 － 1745
427.3 － 687.2		 -565 － +27
-222.6 － +10.6
  • *7 Figures are approximate, differing from the actual values by a few percent.
