28 colorimetric items, 3 electrolyte items
FUJI DRI-CHEM has earned a remarkable reputation from its continuous effort to provide timely testings.
So far, we have improved its usability and network adaptability. While retaining the main characteristics of its predecessor,
the NX700 provides one rank higher usability.
It can be operated intuitively, thus it is usable to anybody. Moreover, its compact design allows flexibility in installation.
NX700: borderless and effortless “Full-time, Real time Testing”
at anyone’s hands.
- Real walk-away system
- Maximum of 5 specimens in one operation
- Large touch panel and new operation interface
- Intuitive and simple operation
- No calibration needed*1 Simple lot compensation by QC card
DRI-CHEM for emergency: Supports diagnosis and treatment during disasters.
- It operates on 100-240V household power supply.
- No need of water, air supply and exhaust equipment. DRI-CHEM allows “full-time and real time” examinations in time of need.
The new design brings forth workflow evolution
Compact size, small footprint
NX700 is designed to be compact and suitable to almost any space.
|Width 500 mm
|Weight of main unit 33 kg
|Depth 380 mm
|Height 410 mm
Large touch panel with simple design
A large touch panel is used for the operation screen. The sliding type front cover prevents unnecessary consumption of space and provides easy handling. The ease of use from the new design enables smoother operation. The exterior is specifically designed for better adaptability in any place.
Intuitive and simple operation

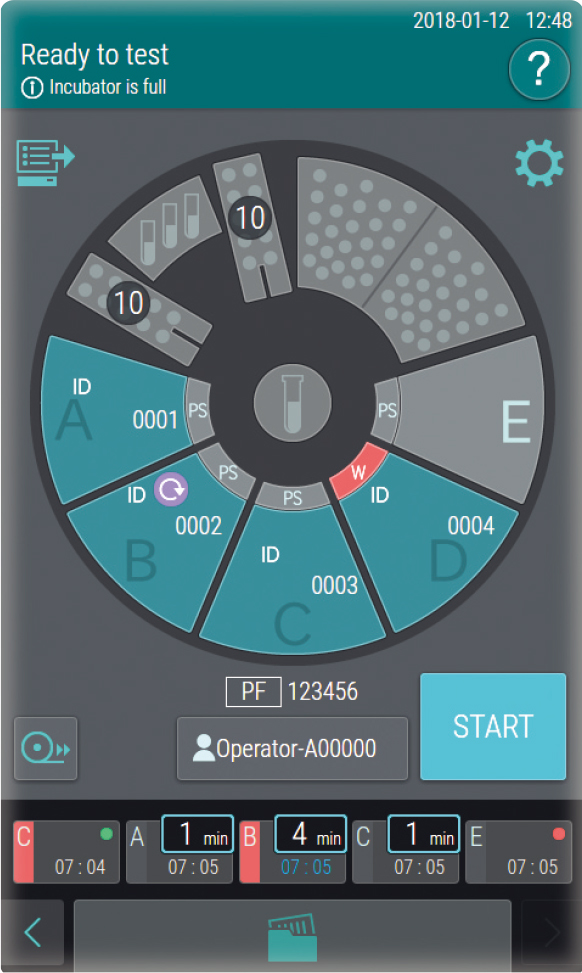

Simple and easy to use operational screen. Explanatory diagrams make the use, troubleshooting and the various maintenance procedures easy.

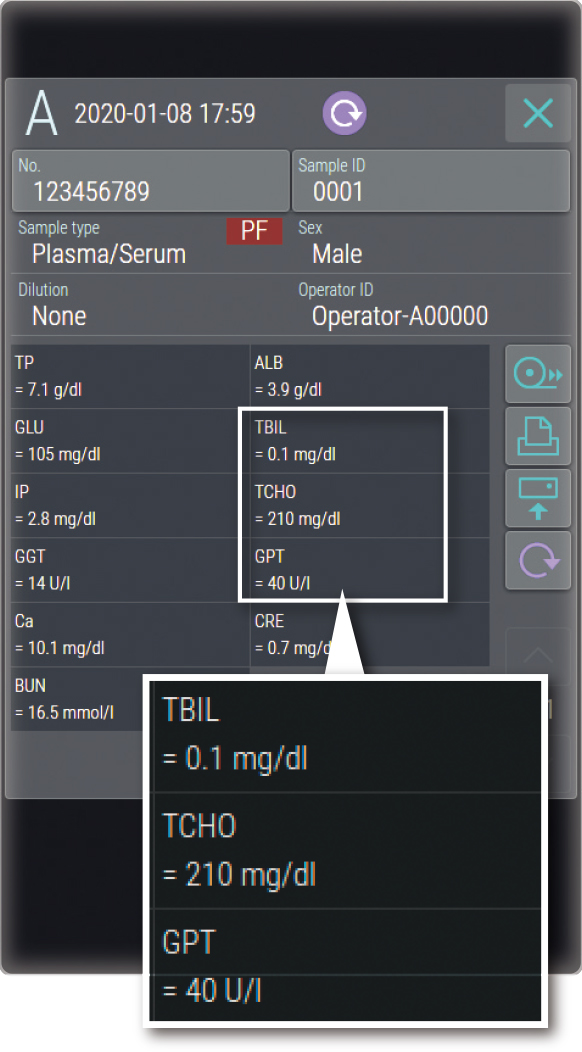

Display of results

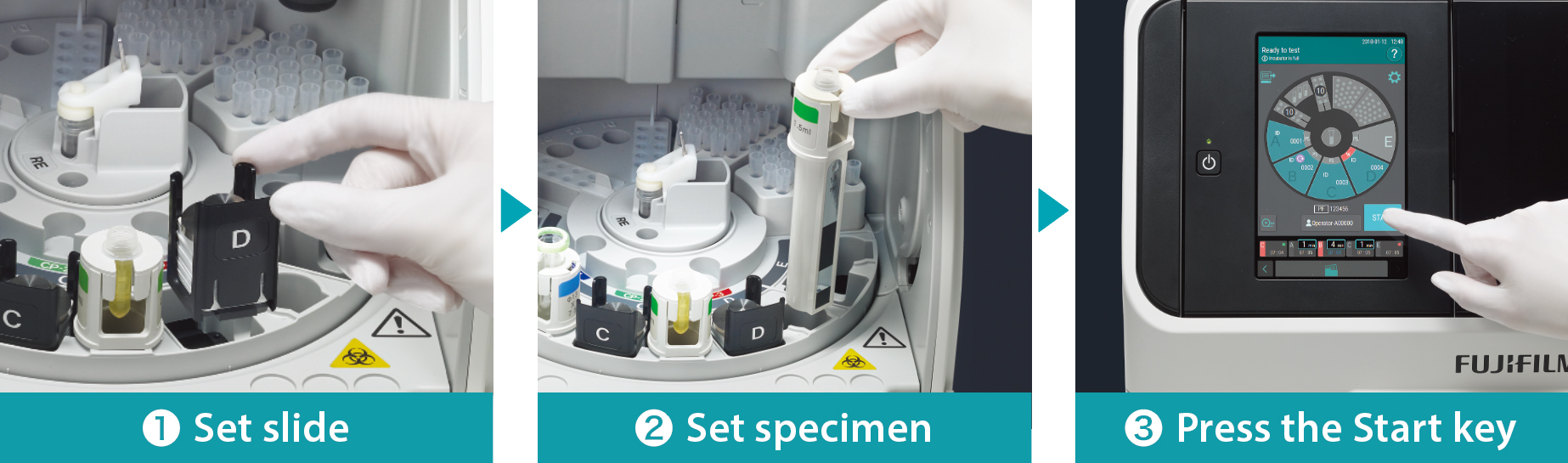

Set the slide, the specimen and press the START key. All the processes hereafter are fully automated.
A maximum of 5 specimens can be set at the same time. No manual operation after pressing START key. The automation shortens operation time and improves workflow efficiency.
Corrections are made simply by reading the QC card included in the slide package into the main unit.
Safety and Convenience

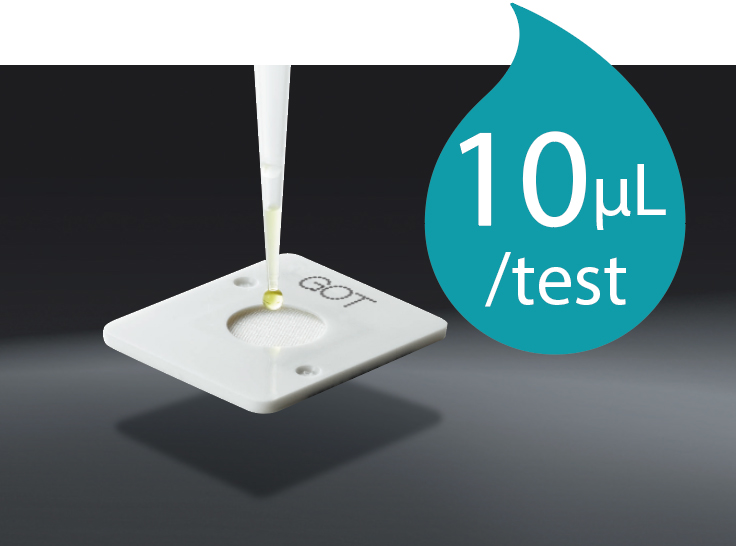

Each test needs only 10μL of sample. (CRP needs 5μL/test, ISE needs 50μL/3 tests). Manual pipetting can be also performed when sample is less. Less invasive for newborn at NICU.
Minimize the risk of biological hazard

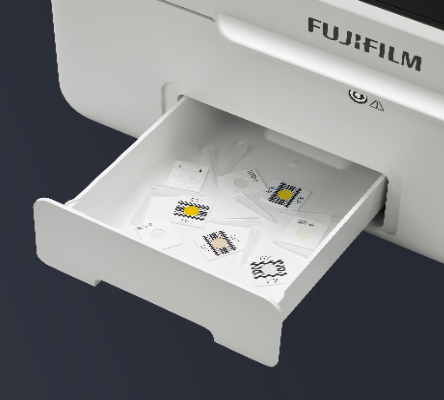

Slide reagents after measurement are automatically discarded to the disposal box, minimizing the risk of contamination.
Wide range of usable blood collection tubes
In addition to Fuji tubes (0.5/1.5 mL), commercially available blood collection tubes can be used as specimen tubes.
Plasma Filter: Blood separation in 1 minute
Plasma Filter (PF) can cut the turn around time and the pre-treatment process of the sample. It can generate plasma sample by aspirating and separating the whole blood inside the PF within 1 minute. Just set the PF on top of the sample tube and press START.

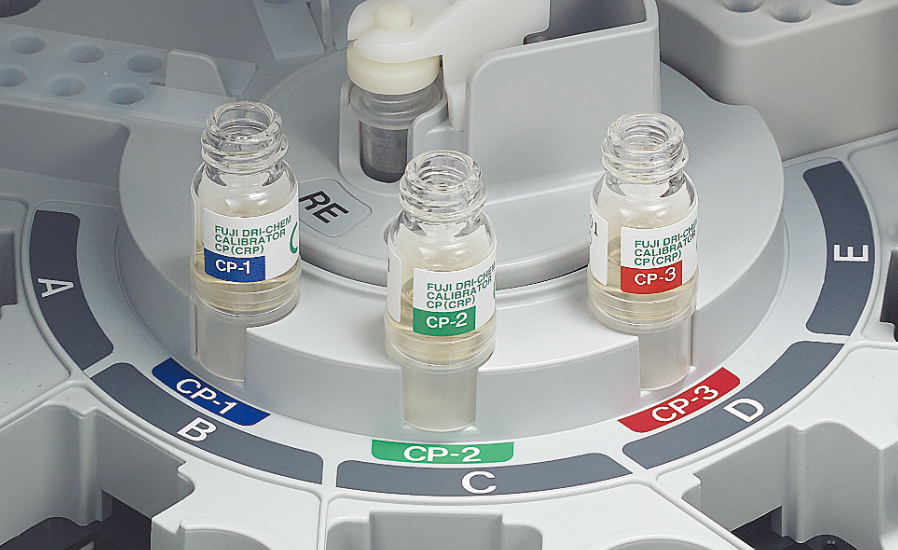

Easy CRP calibration
Set CRP slides, diluent and dedicated calibrator into the specimen disk. Easy calibration starts by pressing the “Calibration” key.
Automatic dilution function
Labor intensive operations like dispensing, mixing etc. are automated. The only operation is to input the dilution ratio.
Electrolyte measurement function
Electrolytes (Na-K-Cl) can also be measured.
STAT testing available
Press the “STAT” key when there is ongoing measurement. Set the emergency specimen and just press START to perform emergency test.
The NX700 can communicate using standard HL7 protocol.
Identification of operators can be set.
Built in quality control tools
Quality control in the NX700 is made easier with the advance QC functions. Results of quality control can be viewed on the NX700 screen.
Accurate and reliable test results from long term and field-proven technology & experience
The FUJI DRI-CHEM slide reagent has high reliability and stability brought by fine chemical technology cultivated through the long history of FUJIFILM in photographic film manufacturing.
Less variation of results between operators, high result reproducibility and daily precision, and excellent correlation with wet chemistry are its remarkable features.
FUJI DRI-CHEM SLIDE
Colorimetric method slide
(Enzymes, General chemistry, and Immunology)
This multilayered slide is composed of dry chemical ingredients needed for the reaction and other functional materials. It quantifies enzymes and chemicals using colorimetric method.
Composition of multilayered analytical film
Potentiometric method slide
The electrolytes slide contains ion selective film electrodes for Na, K, and Cl. These electrolytes are measured by potentiometric method.

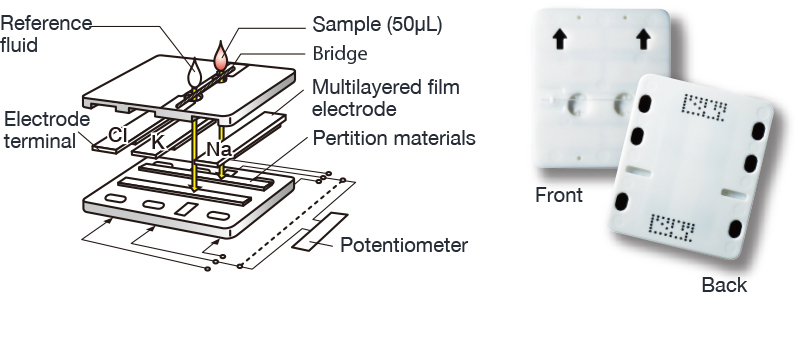

Composition of multilayered film electrode
Specifications FUJI DRI-CHEM NX series
|FUJI DRI-CHEM NX700
|FUJI DRI-CHEM NX500
|Width × depth × height
|500(W) × 380(D) × 410(H) mm
|470(W) × 360(D) × 420(H) mm
|Number of measurement cells
|13 colorimetric + 1 electrolyte (independent)
|12 colorimetric + 1 electrolyte (independent)
|Throughput (1) (only colorimetry)
|Throughput (2) (colorimetry + electrolytes)
|Throughput (3) (15-item measurements)
|approx. 9 minutes
|approx. 9 minutes
|Number of specimen that can be set
|5 specimens at the same time
|Maximum memory of QC information/ parameter
