DRI-CHEM NX700V

NEW

A high throughput automatic clinical chemistry analyzer accommodating five different samples simultaneously. <FOR VETERINARY>

This webpage content is intended for Healthcare Professionals only, not for general public.

Product Movie

Envisioning the future of veterinary care — the new strength of FUJI DRI-CHEM

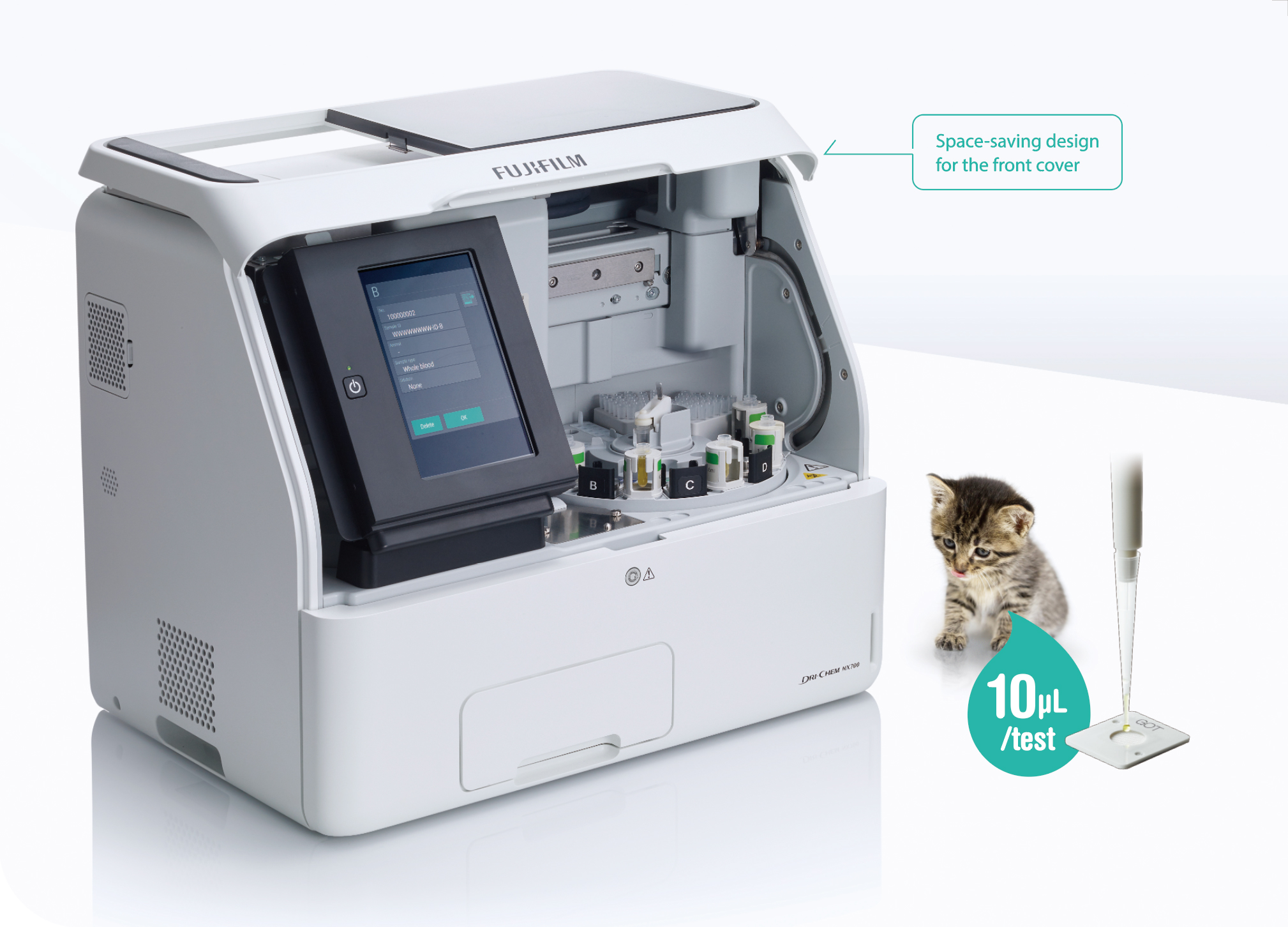

FUJI DRI-CHEM provides quick and reliable diagnosis for animals. The NX700V can be operated intuitively, allowing the system to be used by anybody. Moreover, its compact design allows flexibility in installation.

  • A real walk-away system
  • 10µL of sample for one test

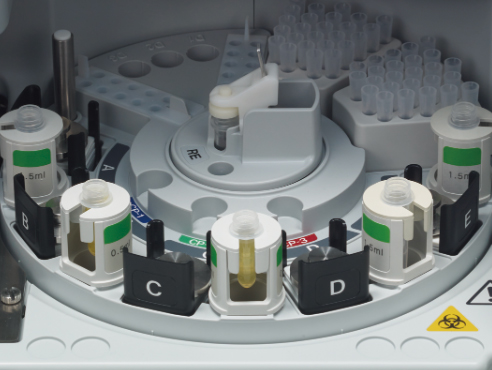

  • Efficient operation: maximum of 5 specimens in one operation.

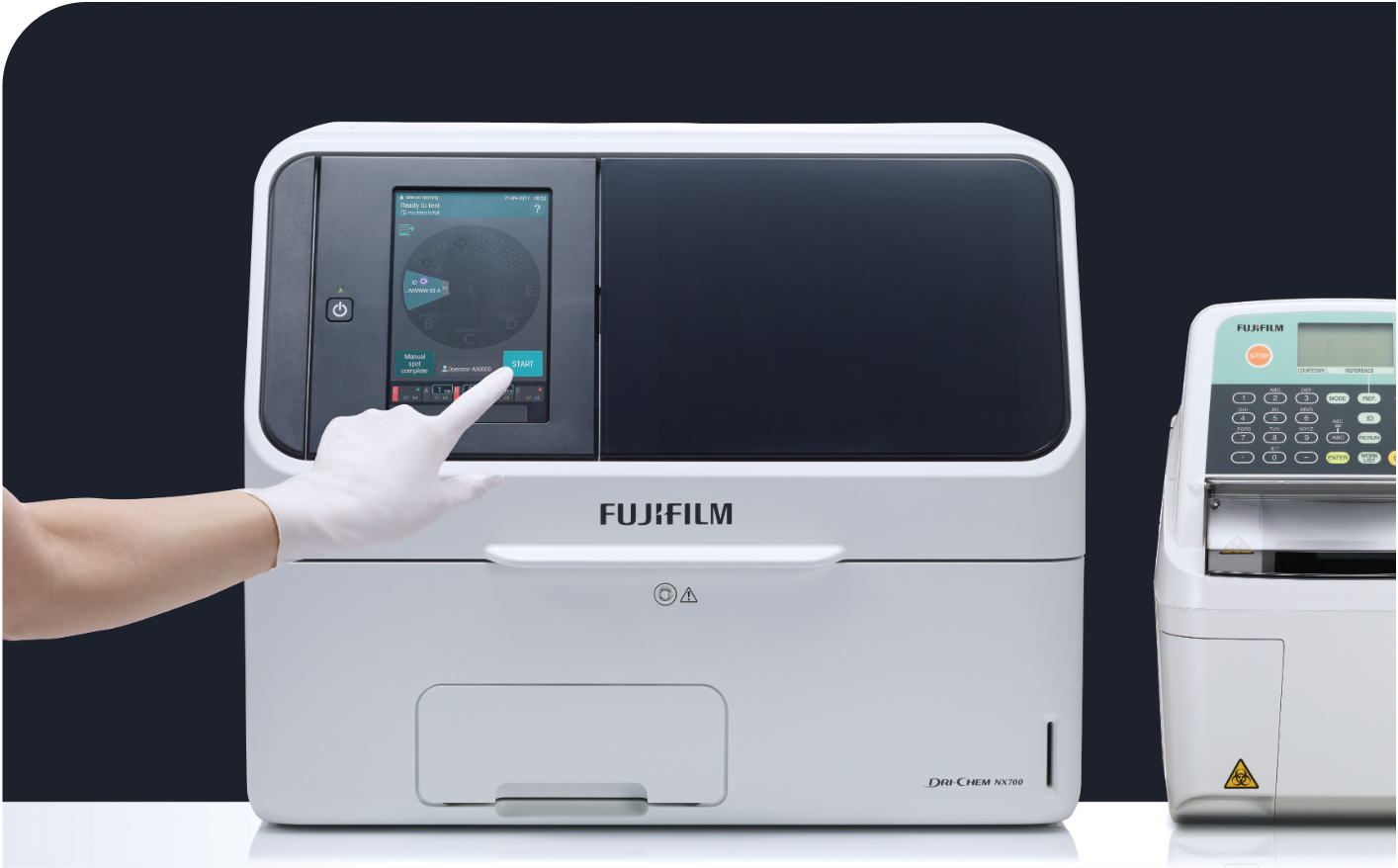

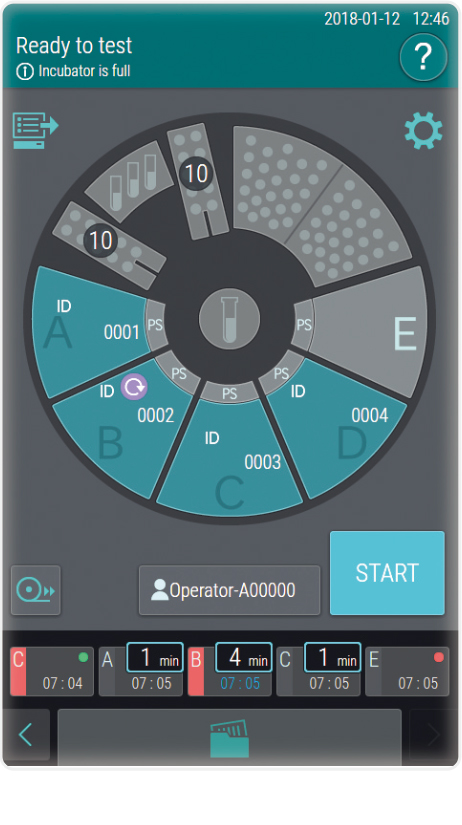

  • Large touch panel and new operation interface
  • Intuitive and simple operation
  • No calibration
  • Easy reagent lot information input by QC card

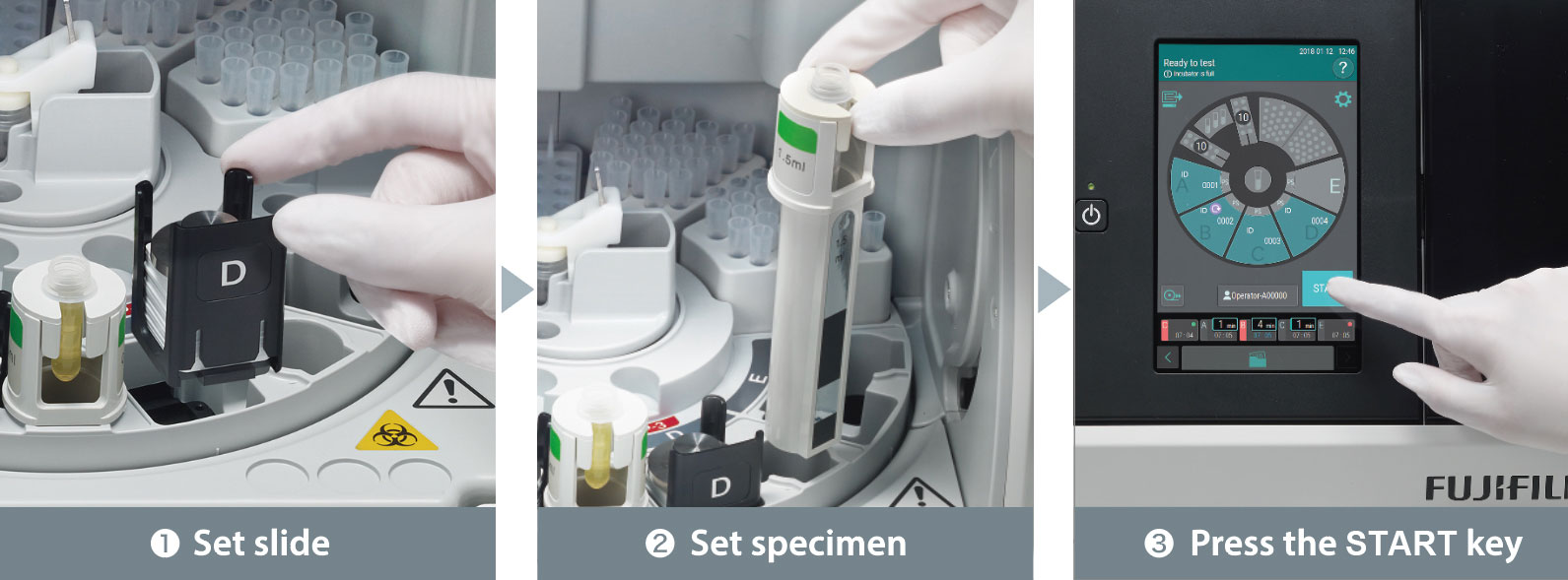

Workflow evolution generated by the new design

STAT measurements

Press the “STAT” key during the measurement and set the emergency specimen. Just press START after registration to perform the necessary test.

Automatic dilution function

Labor intensive operations like dispensing, mixing etc. are automated. The only user operation required is when selecting the dilution ratio.

Electrolyte measurement function

Colorimetric and electrolyte items (Na-K-Cl) can be measured at the same time.

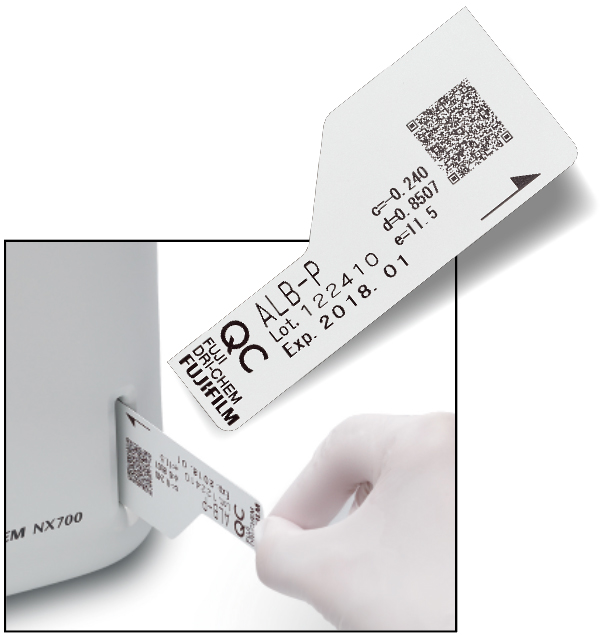

Easy reagent lot information input by QC card

Information for every reagent lot that are needed for the measurement are easily input into the machine using the QC card.

Based on technology and know-how developed over many years, it is possible to obtain conclusive test results.

Fujifilm DRI-CHEM slides achieve an extremely high degree of precision thanks to a special filter layer that reliably filters out any substances that could interfere with the serum or plasma specimen. The high quality of Fujifilm reagents is demonstrated by a comparison with the standard measurement methods.

[image] BUN graph results with Dri-Chem and Urease Glutamate Dehydrogenase Method

Urease glutamate dehydrogenase method

[image] v-LIP graph results with Dri-Chem and 1,2-o-Dilauryl-rac-glycero-3-glutaric acid-(6-methylresorufin) ester lipase assay

1,2 -o-Dilauryl-rac-glycero-3-glutaric acid -(6-methylresorufin) ester lipase assay

Realtime diagnosis Canine CRP test for inflammation screening

NX700V can measure canine CRP, a marker for inflammation screening, along with the rest of the biochemistry test items.

NX700V can measure lipase activity for canine

Lipase activity, which is useful for the screening of pancreatitis, can also be easily measured. This contributes to quick screening of pancreatitis onsite.

[image] Graph of CRP (red line) or WBC (green line) concentration over time
[image] Graphs of v-LIP with cPLI and Lipase activity distribution classified by PLI diagnostic categories

Citation:J.Vet.Med.Sci.73(11):1481-1483, 2011 Katsumi Ishioka J-vet vol.291 2011.6 pp13-15, pp25-29

FUJI DRI-CHEM SLIDE

Colorimetric method slide
(Enzymes, General chemistry, and Immunology)

This multilayered slide is composed of dry chemical ingredients needed for the reaction and other functional materials. It quantifies enzymes and chemicals using colorimetric method.

Composition of multilayered analytical film
[image] DRI-CHEM Slide composition of multilayered film - Spreading layer, Reflection layer, Reaction layer, Transparent support film, and Spectrophotometer

Potentiometric method slide
(Electrolytes)

Each slide comes with an ion selective film electrode for each of Na, K, and Cl. Slides quantify electrolytes in the sample by a potentiometric method.

Composition of multilayered film electrode
[image] Potentiometric method electrolytes slide - electrode terminal, potentiometer, pertition materials, and multilayered film electrode

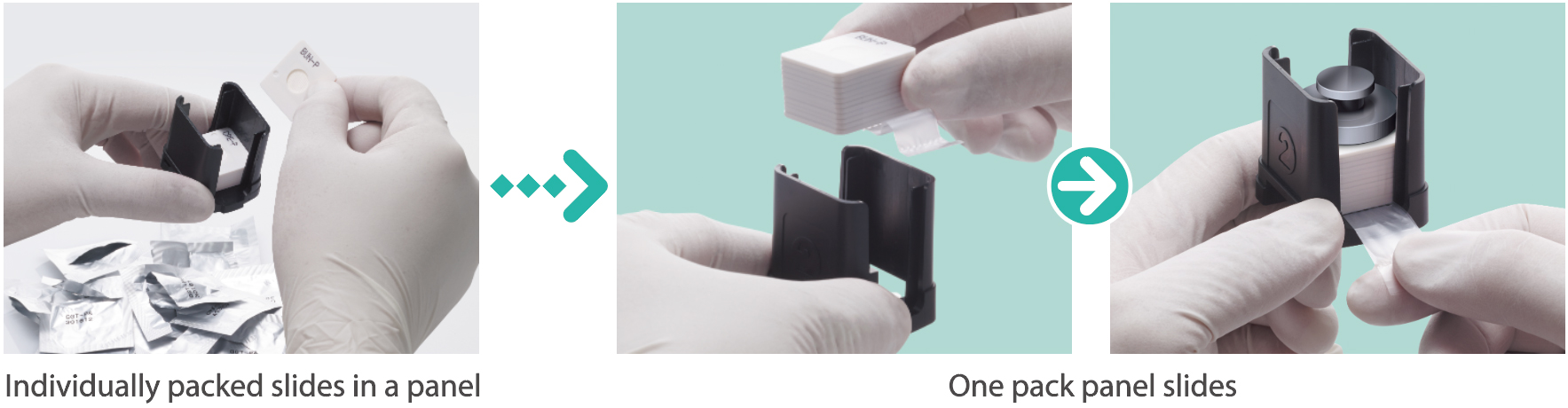

One pack panels (S-panels)
