Optimized workflow for X-ray rooms
Go beyond Versatility
Although fluoroscopic procedures are decreasing, fluoroscopy rooms remain essential. Fujifilm offers a practical solution： integrating fluoroscopy capabilities into general radiography rooms. Fujifilm, with its fluoroscopy-compatible FPD*1 and rich history of expertise in image processing, presents a “Hybrid” X-ray room model.
- *1 Fluoroscopy is possible when combined with FDR Beyond.

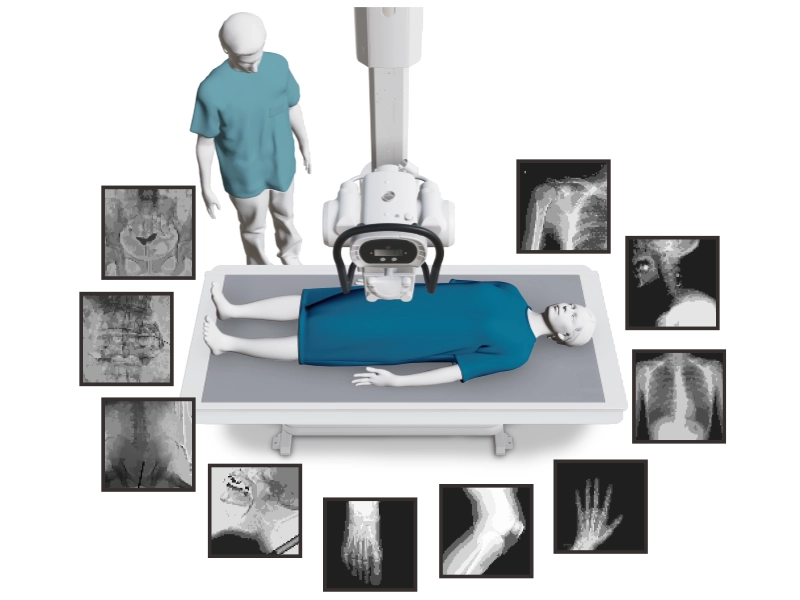

Perform Fluoroscopy on the Bucky table
Table Imaging + Fluoroscopy
Dual examinations can be performed using the Bucky table. In addition to standard abdominal and orthopedic radiography, this system supports fluoroscopic procedures such as nerve blocks, urological and gynecological examinations, and trauma care.
Height-Adjustable Table for Greater Accessibility*2
The Bucky table with a load capacity of 220 kg can be raised and lowered within a range of 565–850 mm to accommodate improved patient comfort and operator workflow. Additionally, when combined with the Ceiling-traveling System, it maintains a constant SID by auto-tracking function. （During fluoroscopy： between 1000-1500mm in 100mm increments） The straight-line design of the table cover helps prevent dust accumulation and allows for easy cleaning.
Perform Fluoroscopy with the Bucky stand*3*4
Upright Imaging + Fluoroscopy*2
The Bucky stand*2 also supports fluoroscopic examinations. In addition to general radiographic procedures such as chest imaging, it accommodates a wide range of fluoroscopy exams, including swallowing studies in the seated position and weight-bearing dynamic orthopedic evaluations in the standing position. Combining the fluoroscopy-compatible FPD FDR D-EVO Ⅲ with flexible X-ray tube support system layouts allows you to expand [the range of examinations] that can be performed in your X-ray room.

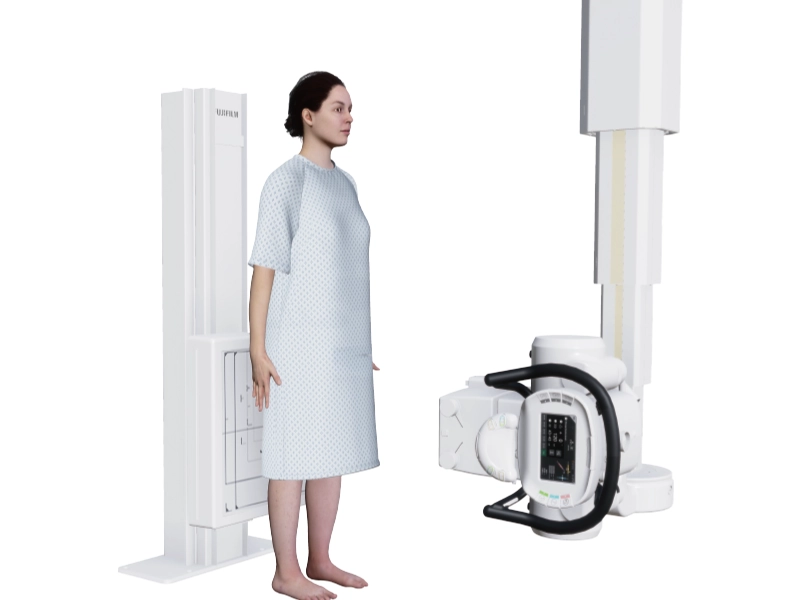

Examples of Combination with Ceiling-traveling Tube Supports

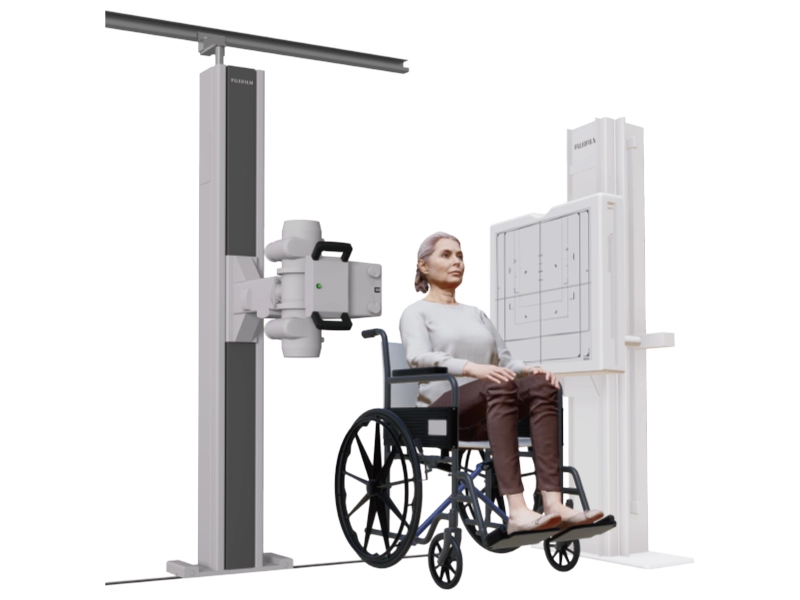

Examples of Combination with Floor-traveling Tube Supports
- *2 option
- *3 When using ceiling-traveling tube supports, the focal height from the floor may vary depending on the ceiling height and finishing conditions. Please consult your FUJIFILM representative for details.
- *4 The above illustrations are for reference only. Since the Bucky table is included, please confirm the actual equipment layout.
