Pressure measurement film

Prescale(*****For countries where PSM is not sold*****)

NEW

This is the only film in the world that can measure pressure.Pressure and pressure distribution, which could not be visually observed in the past, can now be easily confirmed.

Measure tire pressure

Measure tire pressure

Measure the pressure distribution of cleaning polish against liquid crystal panels

Measure the pressure distribution of cleaning polish against liquid crystal panels

Measure the pressure between cylinder heads and cylinder blocks

Measure the pressure between cylinder heads and cylinder blocks

Product name/Model

Prescale (Two-sheet type/Mono-sheet type)

Precision

±10% or less (measured by a densitometer at 23°C, 65% RH)

Recommended temperature

20°C to 35°C*1

Recommended humidity

35% RH to 80% RH*2 *3

*1 Ultra extreme low pressure (5LW) / Extreme low pressure (4LW) / Super high pressure (HHS): 15°C–30°C
*2 Ultra extreme low pressure (5LW) / Extreme low pressure (4LW): 20% RH–75% RH
*3 Super high pressure (HHS): 35% RH–70% RH

<How to calculate pressure value (MPa)>

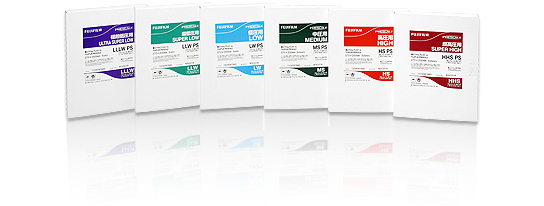

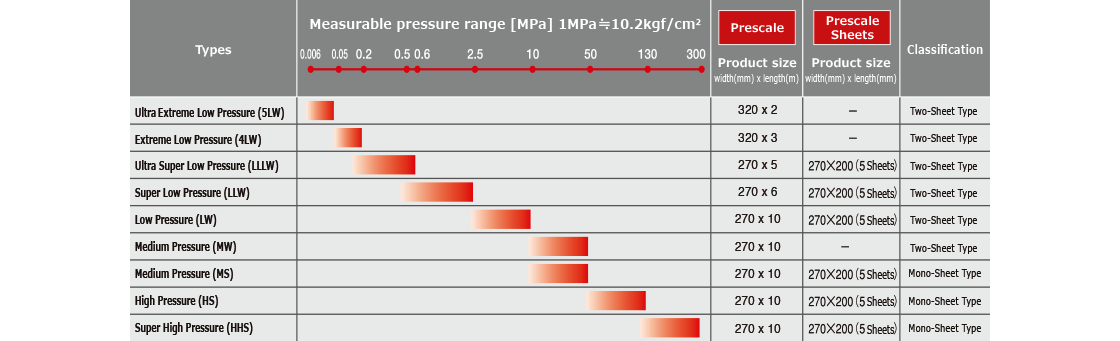

We supply nine types of Prescale and six types of Prescale Sheets for use depending on the pressure range.
Each product is made for a certain pressure range (MPa). Customers must confirm the pressure value of their application environment.

1 MPa = 1 N/mm2 ≒ 10.2 kgf/cm2

To obtain the pressure value, you need the mass (kg) or newtons (N), as well as the surface area (mm2 or cm2).
For instance, if 100 kg is applied on a 100 mm2 (1 cm2) surface, the calculation is 100 kgf/cm2.
Divide this value by 10.2. The formula is 100 kgf/cm2 / 10.2 = 9.8 MPa.

the masskgf÷the surface areacm2

Measurable pressure range[MPa] = 9.8 [MPa]1421.37 [PSI]

Pressure quantification tool

By using the tools below, you can quantify pressure, perform detailed analysis, and share data.

Products

Fuji Digital Analysis System fore
Prescale FPD-8010E

FPD-8010E


Click here for more information

Overview Colorized Prescale is digitiloized using a scanner and converted into numerical data by software.
Usable Prescale All Prescale
Supported Measurements 6 Items
Inspection time*4 Around 2 minutes
Precision Equivalent

*4 Inspection time: After registering the inspection conditions, the time from reading the prescale to displaying the inspection results.

Product name/Model

FUJIFILM PRESSURE DISTRIBUTION MAPPING SYSTEM for PRESCALE FPD-8010E

Components

Dedicated software (CD-ROM), Dedicated cover, Calibration sheet, Installation manual

Main functions

Pressure analysis / Pressure data output function / Partial zoom function / Excess length synthesis function

Applicable scanner

Epson A4 Scanner: Perfection V37/V370, Perfection V600, Perfection V850

System requirements

OS :
Windows10 Home/Pro(32Bit/64Bit)
Windows11 Home/Pro(64Bit)
CPU : 2GHz or Higher
Memory : 2GB or more
HDD : 32GB or more
Display : XGA or better, 65,000 colors or more

Please see the "Product page" for detailed information on functionality, usage, maintenance/repair service, etc. of FPD-8010E. You can also download trial versions and update to the latest version of the products from this web page.
