FlushKnife Series
ESD has been drawing attention as a less invasive treatment for patients. To widen the range of applications, the FlushKnife series has pursued enhanced usability. In addition to increased treatment capability derived from the needs in clinical settings, the FlushKnife series ensures greater safety with its tip design.

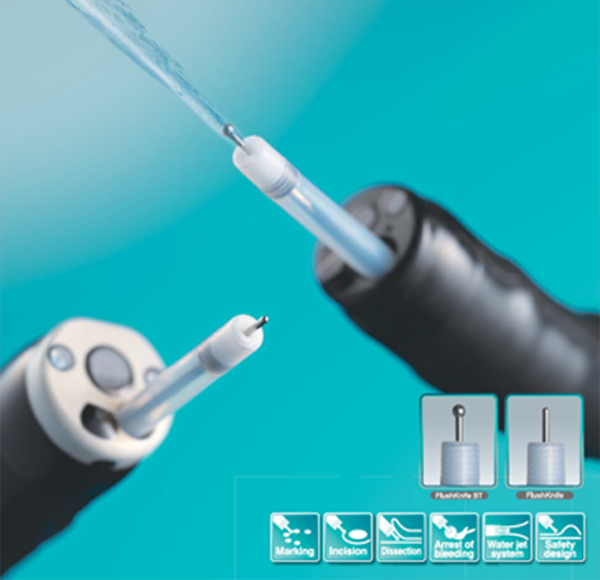

With the comfortable usability offered, the FlushKnife series knives are suitable for versatile treatments. Aimed at achieving perfect usability. Disposable high-frequency knife “FlushKnife series”

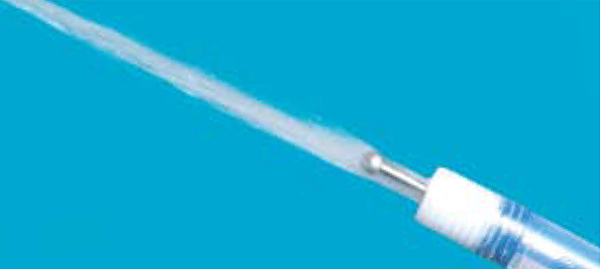

The water jet system keeps the tip of the knife clean by washing off debris and lesion tissue adhering to the tip, thereby maintaining the sharpness of the knife throughout the treatment. The water jet system washes off lesions without withdrawing the knife form the scope, maintaining the operation efficiency during the treatment.
One knife carries out procedures including marking, incision, dissection and arrest of bleeding, and no replacement is necessary. The high versatility improves operation and cost efficiencies.
Point 4: Full lineup of protruding knife lengths
Safer and more efficient treatment is achieved by using the protruding knife length best suited for each treatment area.

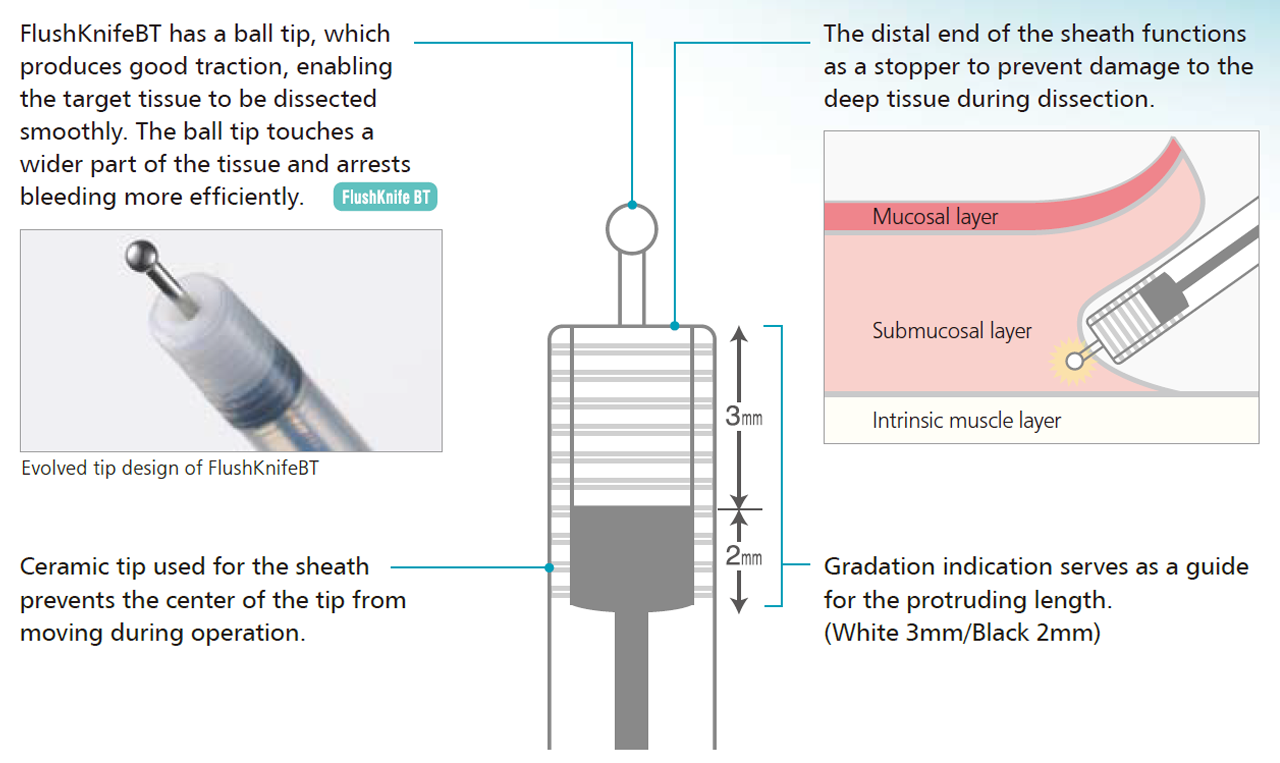

FlushKnifeBT has a ball tip which produces good traction during dissection. The ball tip touches a wider part of the tissue, enabling more efficient arrest of bleeding.
FlushKnife has a slim electrode portion tip with high voltage concentration, which realizes stronger dissection capability.
Examples of the suitable protruding lengths are suggested by Takashi Toyonaga M.D. of Kobe University Hospital. A physician must take consideration each condition of the area or lesion to be dissected when selecting a protruding knife length.
The 1.0mm type protruding knife is not available for FlushKnifeBT.
FlushKnife BT
DK2618J
- Slitter portion length
-B15- : 1.5mm
-B20- : 2.0mm
-B25- : 2.5mm
-B30- : 3.0mm
- Sheath color
-B15- : Green
-B20- : Blue
-B25- : Yellow
-B30- : Black
- Working length*1
1,800mm
- Maximum diameter of insertion portion
2.7mm
- Instrument channel diameter of compatible endoscope*1
2.8mm or more
- Number of knife
1
DK2623J
- Slitter portion length
-B15- : 1.5mm
-B20- : 2.0mm
- Sheath color
-B15- : Green
-B20- : Blue
- Working length*1
2,300mm
- Maximum diameter of insertion portion
2.7mm
- Instrument channel diameter of compatible endoscope*1
2.8mm or more
- Number of knife
1
- Product name: Diathermic Slitter
DK2618J (Identifer: -B15- / -B20- / -B25- / -B30-)
DK2623J (Identifer: -B15- / -B20-)
- GMDN: 61875
- Generic name: Active instrument, endoscopic, high-frequency current procedure, single-use
- * Do not re-use / Single patient use only
- *1 It is not guaranteed that the equipment chosen only based on the working length and the instrument channel diameter of the endoscope above is compatible.
FlushKnife N
DK2618J
- Slitter portion length
-N10- : 1.0mm
-N15- : 1.5mm
-N20- : 2.0mm
-N25- : 2.5mm
-N30- : 3.0mm
- Sheath color
-N10- : White
-N15- : Green
-N20- : Blue
-N25- : Yellow
-N30- : Black
- Working length*1
1,800mm
- Maximum diameter of insertion portion
2.7mm
- Instrument channel diameter of compatible endoscope*1
2.8mm or more
- Number of knife
1
DK2623J
- Slitter portion length
-N15- : 1.5mm
-N20- : 2.0mm
- Sheath color
-N15- : Green
-N20- : Blue
- Working length*1
2,300mm
- Maximum diameter of insertion portion
2.7mm
- Instrument channel diameter of compatible endoscope*1
2.8mm or more
- Number of knife
1
- Product name: Diathermic Slitter
DK2620J (Identifer: -N10- / -N15- / -N20- / -N25- / -N30-)
DK2623JS (Identifer: -N15- / -N20-)
- GMDN: 61875
- Generic name: Active instrument, endoscopic, high-frequency current procedure, single-use
- * Do not re-use / Single patient use only
- *1 It is not guaranteed that the equipment chosen only based on the working length and the instrument channel diameter of the endoscope above is compatible.
