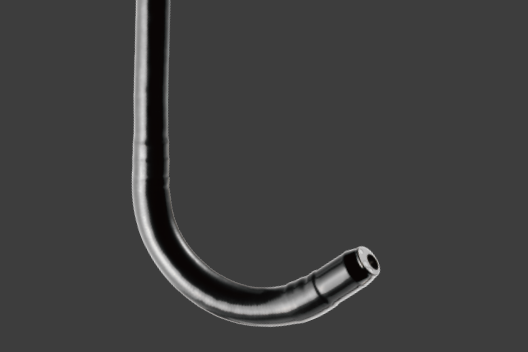

Video Bronchoscope EB-840T

The content on this page is intended to healthcare professionals and equivalents.

Achieved high image quality by incorporating an HD image CMOS sensor

High-quality endoscopic images are displayed large on the monitor to support smooth insertion, observation, and treatment.

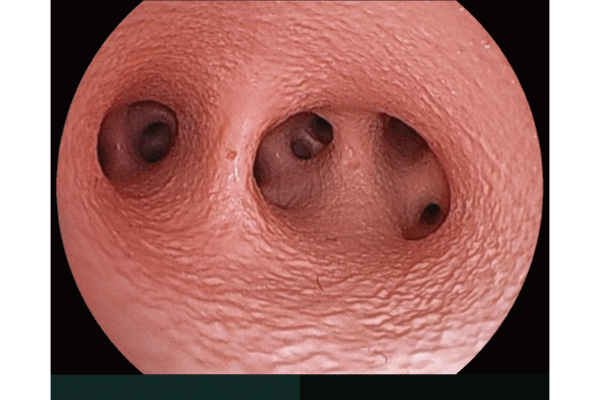

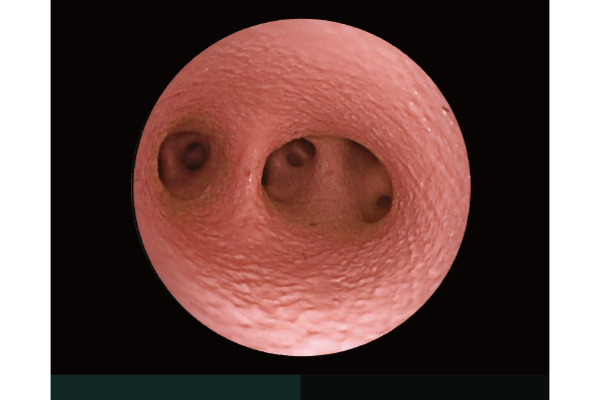

EB-580T with VP-7000 and BL-7000

EB-840T with VP-7000 and BL-7000

Sterilization

Compatible with low temperature plasma sterilisation*.

  • * STERRAD® Systems provided by Advanced Sterilization Products, Inc.
Compatible system
Processor EP-8000 Product name： Processor
GMDN： 34540
Generic name： Endoscopic video image processing/light source system
Processor VP-7000 Product name： Processor
GMDN： 18034
Generic name： Endoscopic video image processing unit
Light Source BL-7000  Product name： Light source
GMDN： 35158
Generic name： Endoscopic light source unit, line-powered
Processor EP-6000 Product name： Processor
GMDN： 34540
Generic name： Endoscopic video image processing/light source system



Specification
Field of view

120°

Observation range

2-100mm

Distal end diameter

4.8mm

Insertion tube diameter

5.1mm

Minimum diameter of instrument channel

2.2mm

Bending capability

UP 210° ／ DOWN 130°

Working length

600mm

Total length

880mm

Sterilization

STERRAD ／ EOG

  • Product： Video endoscope
  • GMDN： 17662
  • Generic name： Flexible video bronchoscope, reusable
Part of the tip
Bending capability
Image area and dirrection of forceps
