The content on this page is intended to healthcare professionals and equivalents.
Compatible with low temperature plasma sterilisation*1.
- Field of view
120°
- Viewing direction
0°(Forward)
- Observation range
2-50mm
- Distal end diameter
4.1mm
- Insertion tube diameter
4.1mm
- Minimum diameter of instrument channel
2.0mm
- Bending capability
UP 210° / DOWN 130°
- Working length
600mm
- Total length
880mm
- Sterilization
STERRAD / EOG
- Product : Video endoscope EB-710P
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable
Compatible with low temperature plasma sterilisation*1.
- Field of view
120°
- Viewing direction
0°(Forward)
- Observation range
2-50mm
- Distal end diameter
5.8mm
- Insertion tube diameter
6.1mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability
UP 180°/ DOWN 130°
- Working length
600mm
- Total length
880mm
- Sterilization
STERRAD / EOG
- Product : Video endoscope EB-710XT
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable
- *1 STERRAD® Systems provided by Advanced Sterilization Products, Inc.

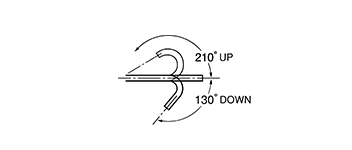

High-resolution bronchoscope with improved operability thanks to 210°upward bending capability and 2.2mm diameter instrument channel.
- Field of view
120°
- Observation range
2-100mm
- Distal end diameter
5.3mm
- Insertion tube diameter
5.1mm
- Minimum diameter of instrument channel
2.2mm
- Bending capability
UP 210° / DOWN 130°
- Working length
600mm
- Total length
870mm
- Product : Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable

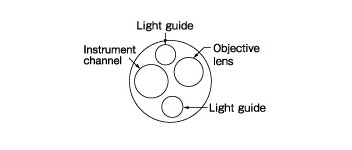

![[image] Tip of scope with parts - light guides, objective lens, instrument channel](https://asset.fujifilm.com/www/pe/files/2025-05/c81fd3f4125344b369ac575a0ca8a4b8/fig_bronchoscopes_01.jpg)

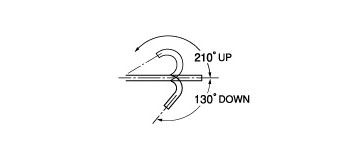

![[image] Scope moves 210 degrees up and 130 degrees down](https://asset.fujifilm.com/www/pe/files/2025-05/4c0eacb319a7ac5915fcf4a234818d90/fig_bronchoscopes_02.jpg)

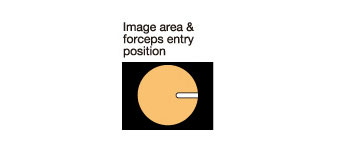

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/pe/files/2025-05/8f523949e7c687e23bba9568f9df9f64/fig_bronchoscopes_03.jpg)
High-resolution bronchoscope to support efficient treatment.
- Field of view
120°
- Observation range
2-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 180° / DOWN 130°
- Working length
600mm
- Total length
870mm
- Product : Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable

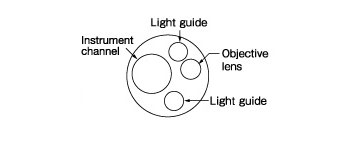

![[image] Tip of scope with parts - light guides, objective lens, instrument channel](https://asset.fujifilm.com/www/pe/files/2025-05/c704287e05039780850ace85dce1f9b6/fig_bronchoscopes_04.jpg)

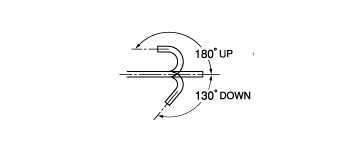

![[image] Scope moves 180 degrees up and 130 degrees down](https://asset.fujifilm.com/www/pe/files/2025-05/01e11f4fd5a44b59cf1994a8c78b68f5/fig_bronchoscopes_05.jpg)

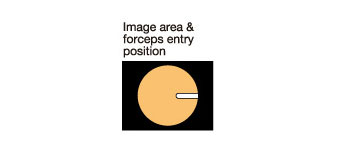

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/pe/files/2025-05/e375f18904d5a5b3c9ee07225a6d46ab/fig_bronchoscopes_06.jpg)
Slim type bronchoscope with a 3.8mm slim distal end diameter, suitable for pediatric bronchoscopy.
- Field of view
120°
- Observation range
3-100mm
- Distal end diameter
3.8mm
- Insertion tube diameter
3.8mm
- Minimum diameter of instrument channel
1.2mm
- Bending capability
UP 180° / DOWN 130°
- Working length
600mm
- Total length
890mm
- Product : Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable

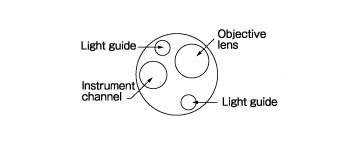

![[image] Tip of scope with parts - light guides, objective lens, instrument channel](https://asset.fujifilm.com/www/pe/files/2025-05/888260014227cb1db8b11193fe1c8e25/fig_bronchoscopes_07.jpg)

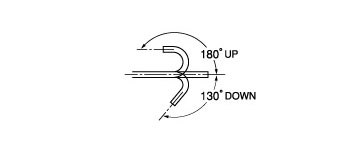

![[image] Scope moves 180 degrees up and 130 degrees down](https://asset.fujifilm.com/www/pe/files/2025-05/c3213a54b3e7e9ff6beaada2202f51af/fig_bronchoscopes_08.jpg)

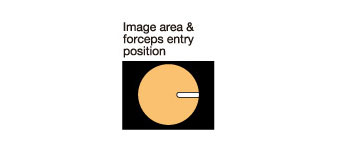

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/pe/files/2025-05/f79e4e87d1d00e059c8d87aab6bc176a/fig_bronchoscopes_09.jpg)
