The content on this page is intended to healthcare professionals and equivalents.
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm

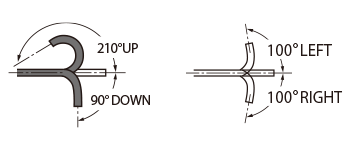

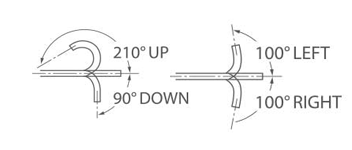

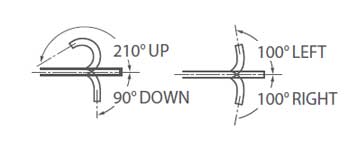

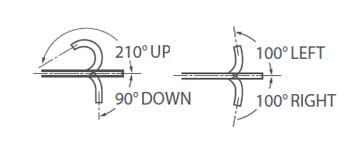

- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
8.9 mm
- Insertion tube diameter
8.9 mm
- Minimum instrument channel diameter
2.8 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum instrument channel diameter
2.4 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm

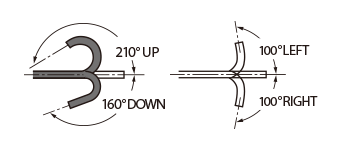

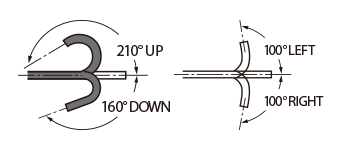

- Bending capability
UP 210° / DOWN 160°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.8 mm
- Insertion tube diameter
9.8 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 210° / DOWN 160°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
7.9 mm
- Insertion tube diameter
7.9 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
2~100 mm
- Image size
Super image
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
Normal: 140° Closest: 56°
- Viewing direction
0° (Forward)
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Image size
Super image
- Distal end diameter
9.9 mm
- Insertion tube diameter
9.8 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
2～100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
10.5 mm
- Insertion tube diameter
10.8 mm
- Minimum diameter of instrument channel
3.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
3～100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum diameter of instrument channel
2.4 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
2〜100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum instrument channel diameter
2.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
3~100 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,030 mm
- Total length
1,330 mm
- Distal end diameter
12.8 m
- Insertion tube diameter
12.8 m
- Minimum instrument channel diameter
3.7/3.2 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 64920
- Generic name: Flexible upper/lower gastrointestinal endoscope

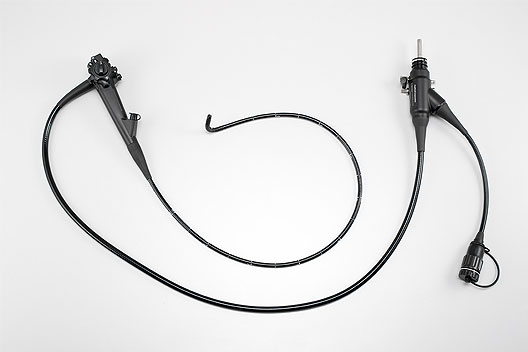

![[photo] EG-600WR gastroscope](https://asset.fujifilm.com/www/pe/files/2025-09/caa78729a1bfd0ebb0588af9a17d5fbb/pic_gastroscopes_01.jpg)

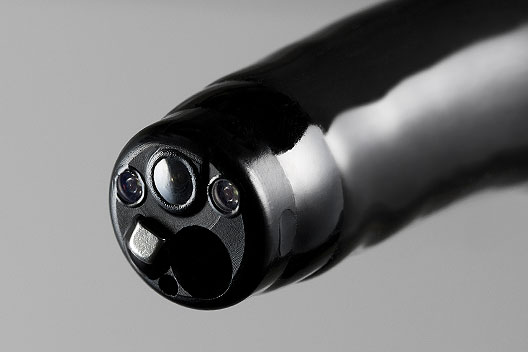

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/pe/files/2025-09/f464d440d9e650b6d8bd2cb9e9cded16/pic_gastroscopes_02.jpg)

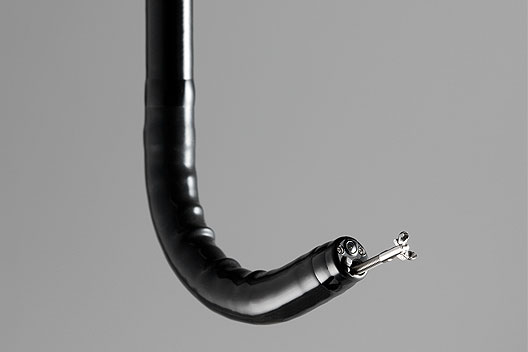

![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/pe/files/2025-09/dbc2b1f5c22ea0e5d0cedb1a165a72ce/pic_gastroscopes_03.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

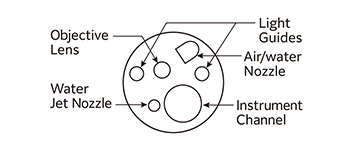

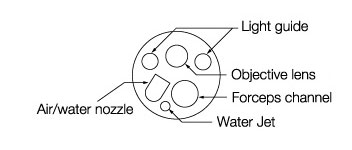

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/pe/files/2025-09/6cfabf989824d21f8b8a665a9574862f/fig_gastroscopes_01.jpg)

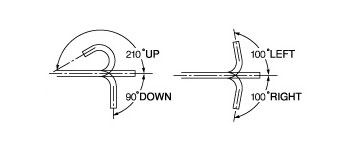

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/pe/files/2025-09/a592a1bde0fd5385662d0bbec463a658/fig_gastroscopes_02.jpg)

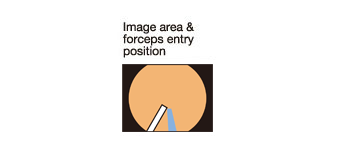

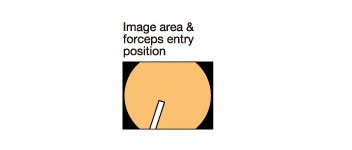

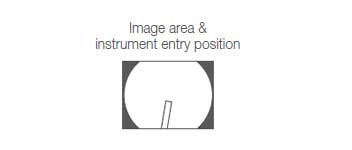

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/pe/files/2025-09/d59d19d45de662d946647f76b5932fe8/fig_gastroscopes_03.jpg)

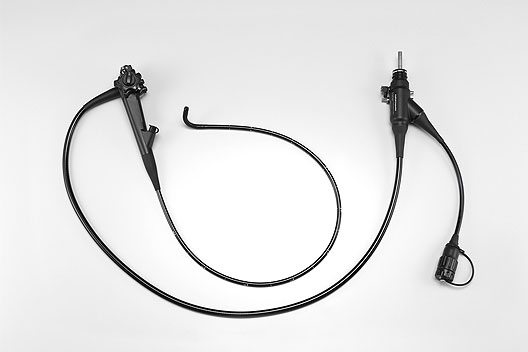

![[photo] EG-600ZW gastroscope](https://asset.fujifilm.com/www/pe/files/2025-09/98866a2c18f2e0acff86f51e2094fc0f/pic_gastroscopes_04.jpg)

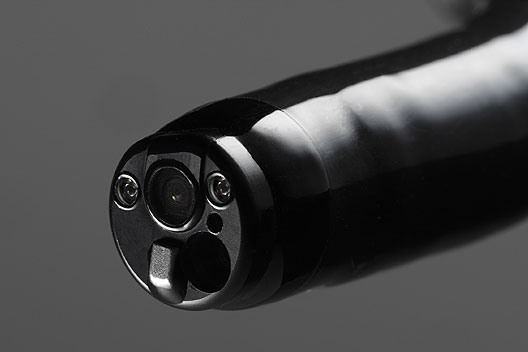

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/pe/files/2025-09/83773a71c96c80729951fbcb8a3b5cc2/pic_gastroscopes_05.jpg)

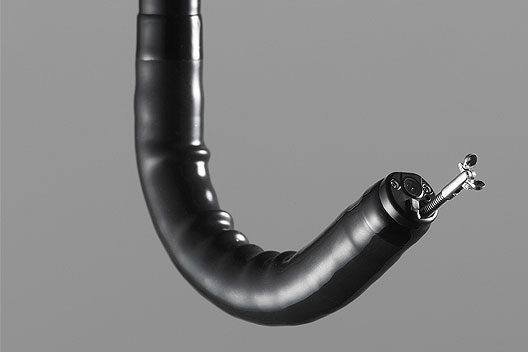

![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/pe/files/2025-09/e942ff1c329fe0321d53b506138233ea/pic_gastroscopes_06.jpg)
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Distal end diameter
9.9mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

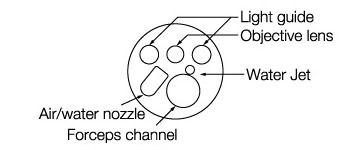

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/pe/files/2025-09/b4b0582c584c6750f5287811e40049a1/fig_gastroscopes_04.jpg)

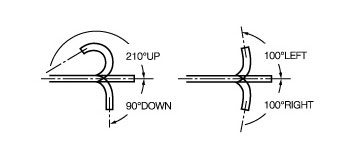

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/pe/files/2025-09/bf08fcd67dd6ea276cf9613a04a87bde/fig_gastroscopes_05.jpg)

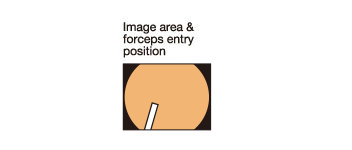

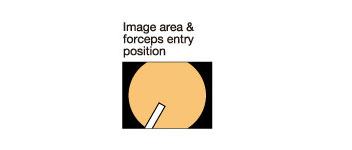

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/pe/files/2025-09/db172f025f13a4c1b1e5fc9dc734dc6c/fig_gastroscopes_06.jpg)

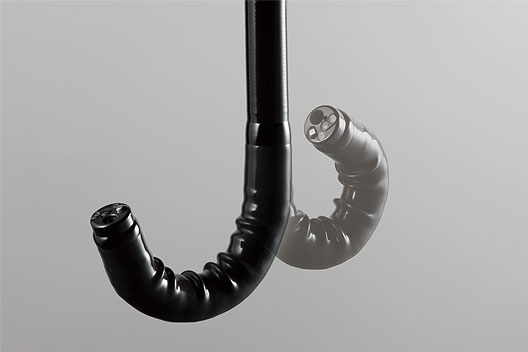

![[photo] Flexible tip of scope bent upward](https://asset.fujifilm.com/www/pe/files/2025-09/757a945035f54453e77566325df6a948/pic_gastroscopes_07.jpg)

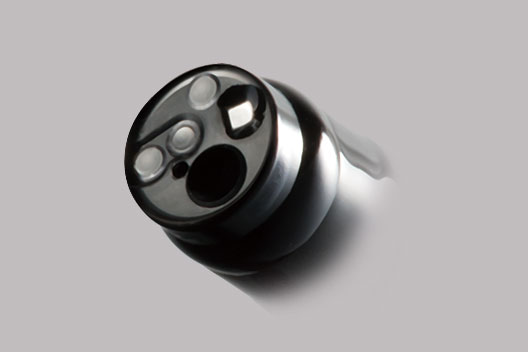

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/pe/files/2025-09/adfde0e43b6f820e0bf3f444ba83cc14/pic_gastroscopes_08.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
9.8mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability

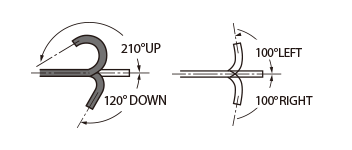

UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

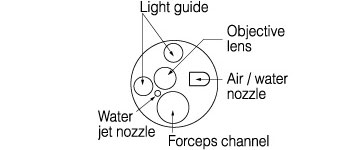

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/pe/files/2025-09/33b0ca838d6e5654e970b497302230c6/fig_gastroscopes_07.jpg)

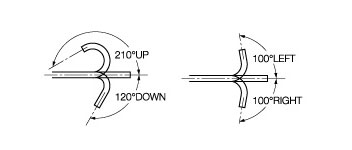

![[image] Scope flexibly bends 210 degrees up/120 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/pe/files/2025-09/39badf287106059c0b40f1632bd217db/fig_gastroscopes_08.jpg)

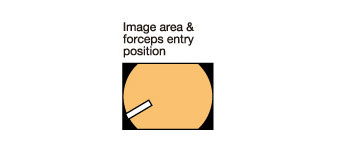

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/pe/files/2025-09/73869c5f767875bef289691d2922929b/fig_gastroscopes_09.jpg)

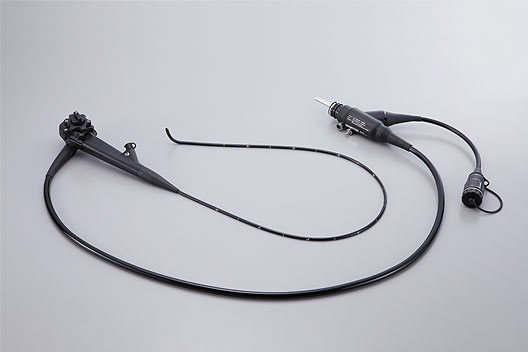

![[photo] EG-580NW2 gastroscope](https://asset.fujifilm.com/www/pe/files/2025-09/aa4726d675a3cdc563bc4e638fab028c/pic_gastroscopes_09.jpg)

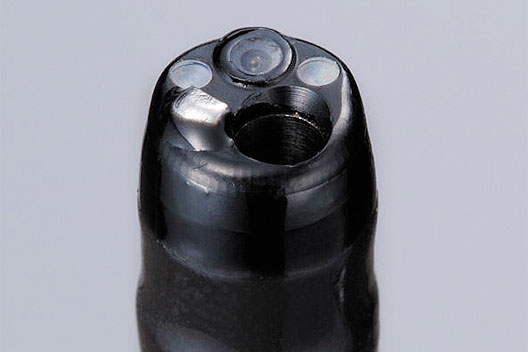

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/pe/files/2025-09/2ce40de0ae66ccbe3618d9c521e1acc1/pic_gastroscopes_10.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.4mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

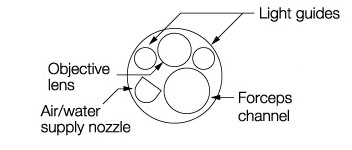

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/pe/files/2025-09/844b56a74f87a750c57c5fd87c7d3a0f/fig_gastroscopes_10.jpg)

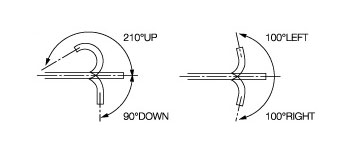

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/pe/files/2025-09/79a2dbe21cf95d97463265831452a14e/fig_gastroscopes_11.jpg)

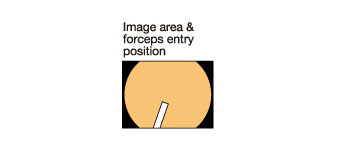

![[image] image area & forceps entry position](https://asset.fujifilm.com/www/pe/files/2025-09/c61faa14dc2490ee7a97b744540f38bb/fig_gastroscopes_12.jpg)
