- Field of view
170°
- Viewing direction
0°
- Observation range
2-100 mm

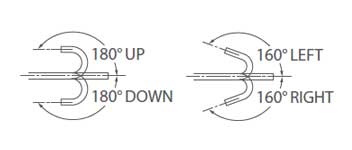

- Bending capability
UP 180° / Down 180°
Right 160° / Left 160- Working length
1,330 mm（M） / 1,690 mm（L）
- Total length
1,650 mm（M） / 2,010 mm（L）
- Distal end diameter
11.5 mm
- Insertion tube diameter
11.5 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
170°
- Viewing direction
0°
- Observation range
2-100 mm

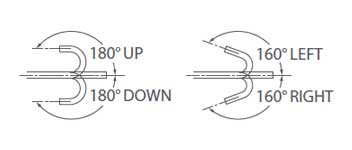

- Bending capability
UP 180° / Down 180°
Right 160° / Left 160°- Working length
1,330 mm（M） / 1,520 mm（I） / 1,690 mm（L）
- Total length
1,650 mm（M） / 1,840 mm（I） / 2,010 mm（L）
- Distal end diameter
12.8 mm
- Insertion tube diameter
12.8 mm
- Minimum instrument channel diameter
3.8 mm
- Product name: Video endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
170°
- Viewing direction
0° (Forward)
- Observation range
2～100 mm

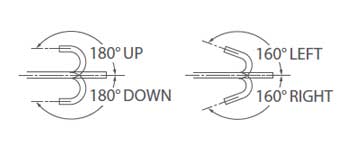

- Bending capability
UP: 180° / DOWN: 180°
RIGHT: 160° / LEFT: 160°- Working length
1,330 mm（M）/1,520 mm（I）/1,690 mm（L）
- Total length
1,650 mm（M）/1,840 mm（I）/2,010 mm（L）
- Distal end diameter
12.0 mm
- Insertion tube diameter
12.0 mm
- Minimum diameter of instrument channel
3.8 mm
- Image size
Super image
- Flexibility adjustment mechanism
Available
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
170°
- Viewing direction
0° (Forward)
- Observation range
2～100 mm
- Bending capability
UP: 180° / DOWN: 180°
RIGHT: 160° / LEFT: 160°- Working length
1,330 mm（M）/1,690 mm（L）
- Total length
1,650 mm（M）/2,010 mm（L）
- Distal end diameter
11.1 mm
- Insertion tube diameter
11.5 mm
- Minimum diameter of instrument channel
3.2 mm
- Image size
Super image
- Flexibility adjustment mechanism
Available
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
170°
- Viewing direction
0° (Forward)
- Observation range
2～100 mm
- Bending capability
UP: 180° / DOWN: 180°
RIGHT: 160° / LEFT: 160°- Working length
1,690 mm
- Total length
2,010 mm
- Distal end diameter
12.8 mm
- Insertion tube diameter
12.8 mm
- Minimum diameter of instrument channel
3.8 mm
- Image size
Super image
- Flexibility adjustment mechanism
Available
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
Normal: 140° Closest: 56°
- Viewing direction
0° (Forward)
- Observation range
1.5～100 mm
Normal: 3～100 mm
Closest: 1.5～2.5 mm- Bending capability
UP: 180° / DOWN: 180°
RIGHT: 160° / LEFT: 160°- Working length
1,330 mm（M）/1,690 mm（L）
- Total length
1,650 mm（M）/2,010 mm（L）
- Distal end diameter
12.8 mm
- Insertion tube diameter
12.8 mm
- Minimum diameter of instrument channel
3.8 mm
- Image size
Super image
- Flexibility adjustment mechanism
Available
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
Normal: 140° Closest: 56°
- Viewing direction
0° (Forward)
- Observation range
1.5～100 mm
Normal: 3～100 mm
Closest: 1.5～2.5 mm- Bending capability
UP: 180° / DOWN: 180°
RIGHT: 160° / LEFT: 160°- Working length
1,330 mm(M) / 1,690 mm(L)
- Total length
1,650 mm(M) / 2,010 mm(L)
- Distal end diameter
11.7 mm
- Insertion tube diameter
11.8 mm
- Minimum diameter of instrument channel
3.2 mm
- Image size
Super image
- Flexibility adjustment mechanism
Available
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
3～100 mm
- Bending capability
UP: 210° / DOWN: 160°
RIGHT: 160° / LEFT: 160°- Working length
1,330 mm（M）/1,690 mm（L）
- Total length
1,630 mm（M）/1,990 mm（L）
- Distal end diameter
9.8 mm
- Insertion tube diameter
10.7 mm
- Minimum diameter of instrument channel
3.2 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
170°
- Viewing direction
0° (Forward)
- Observation range
2〜100 mm
- Bending capability
UP: 180° / DOWN: 180°
RIGHT: 160° / LEFT: 160°- Working length
1,330 mm(M) / 1,520 mm(I) / 1,690 mm(L)
- Total length
1,630 mm(M) / 1,820 mm(I) / 1,990 mm(L)
- Distal end diameter
12.8 mm
- Insertion tube diameter
12.8 mm
- Minimum instrument channel diameter
3.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
3~100 mm
- Bending capability

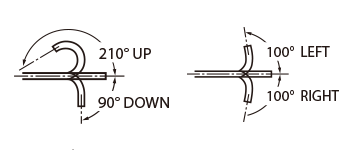

UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,030 mm
- Total length
1,330 mm
- Distal end diameter
12.8 m
- Insertion tube diameter
12.8 m

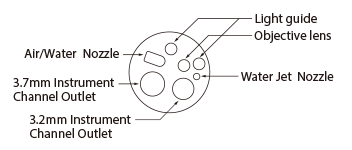

- Minimum instrument channel diameter
3.7/3.2 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 64920
- Generic name: Flexible upper/lower gastrointestinal endoscope

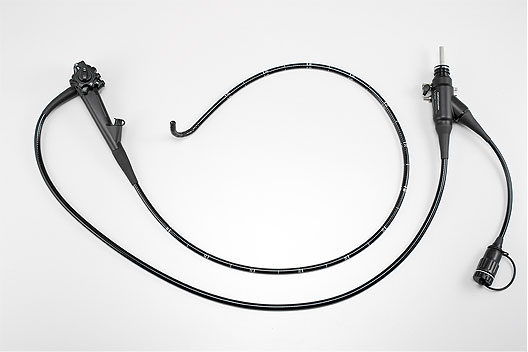

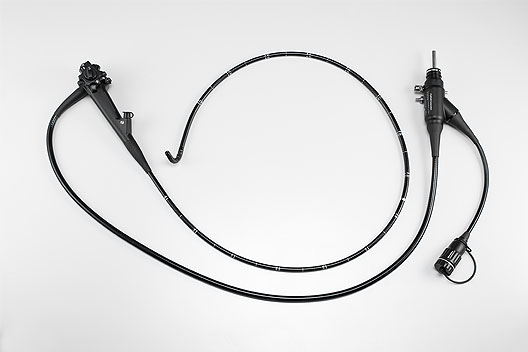

![[photo] Lower G.I. scope](https://asset.fujifilm.com/www/pe/files/2025-07/471fcfc236675271a3dc7accd45d90ee/pic_colonoscope_01.jpg)

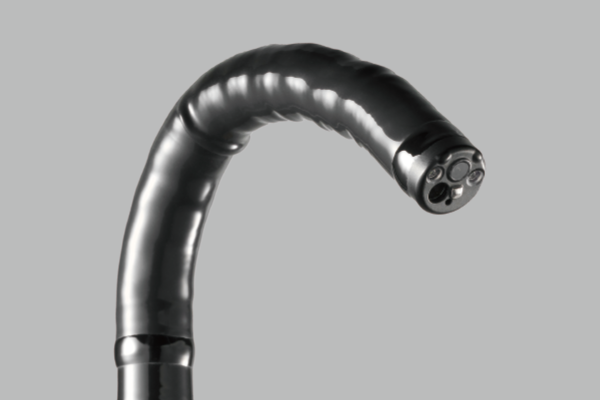

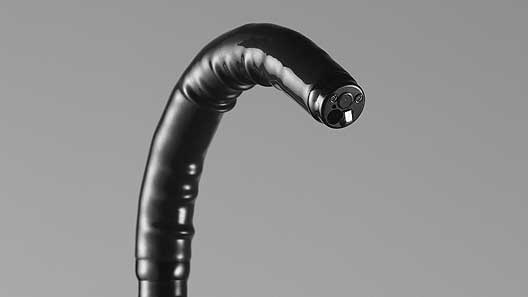

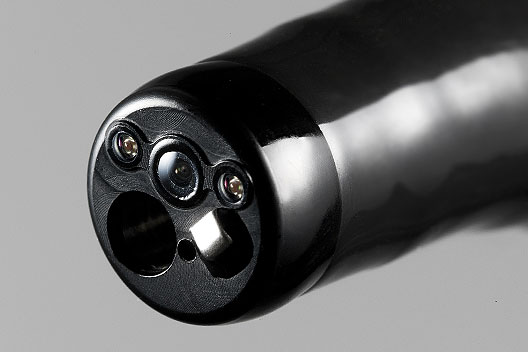

![[photo] Tip of scope, with functioning parts](https://asset.fujifilm.com/www/pe/files/2025-07/76ee38a1e3caf6992cfee345cbd5735b/pic_colonoscope_02.jpg)

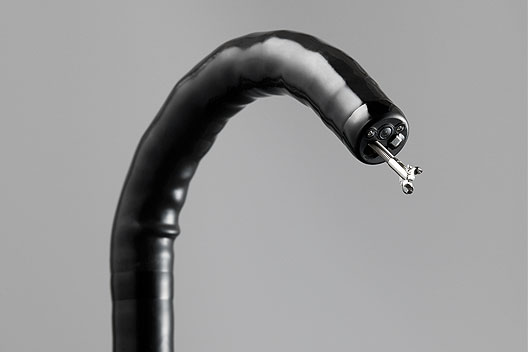

![[photo] Flexible tip of scope bent downward with forceps sticking out](https://asset.fujifilm.com/www/pe/files/2025-07/d0c55e29b3b76cae1f03513991d36158/pic_colonoscope_03.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
12.0 mm
- Insertion tube diameter
12.0 mm
- Minimum diameter of instrument channel
3.8 mm
- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°- Working length
1,330 mm（M） / 1,520 mm（I） / 1,690 mm（L）
- Total length
1,630 mm（M） / 1,820 mm（I） / 1,990 mm（L）
- Water Jet
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable

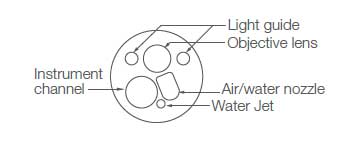

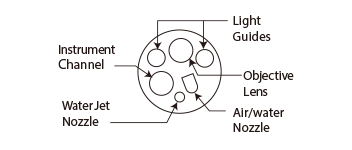

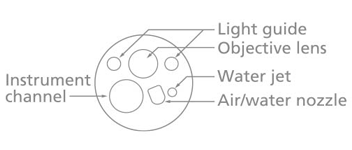

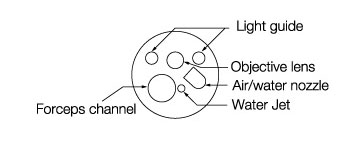

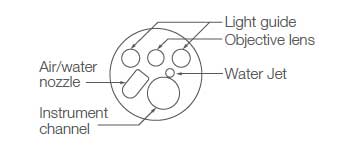

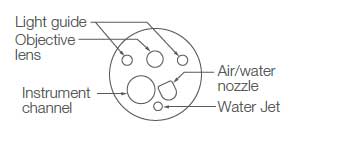

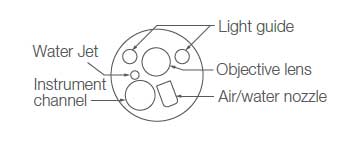

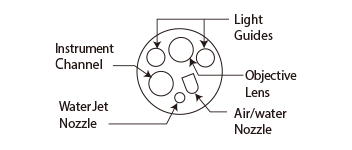

![[image] Tip of endoscope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/pe/files/2025-07/3313b864bcb5b31eb7d7d76a6afb71ee/fig_colonoscope_01.jpg)

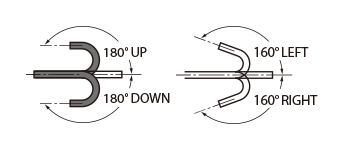

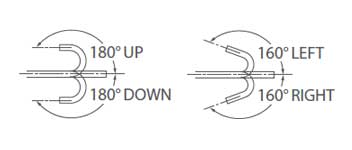

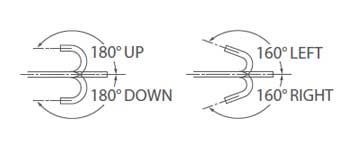

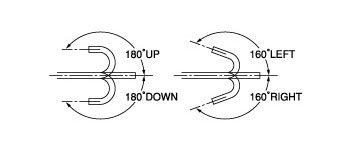

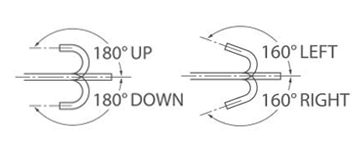

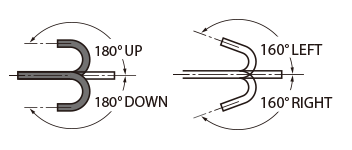

![[image] Scope moves 180 degrees up/down, 160 degrees left/right flexible angles](https://asset.fujifilm.com/www/pe/files/2025-07/3f11e2d13c96057ab09c0bbbcf1b87c5/fig_colonoscope_02.jpg)

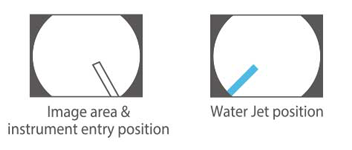

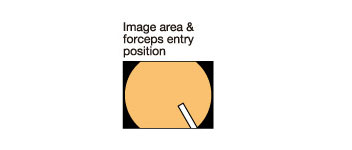

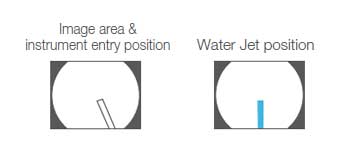

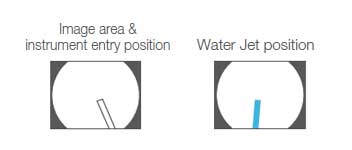

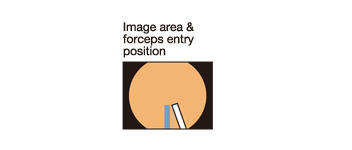

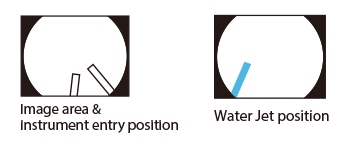

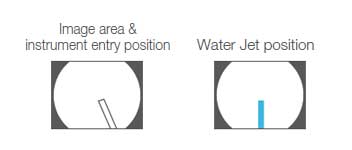

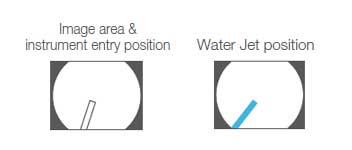

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/pe/files/2025-07/f556f3a115e8ea37c146cfec615e3ebf/fig_colonoscope_03.jpg)

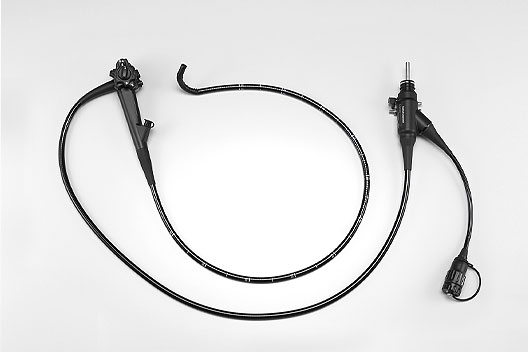

![[photo] Lower G.I. scope](https://asset.fujifilm.com/www/pe/files/2025-07/8f1323c0b12ddf3e5209294b91a22f7d/pic_colonoscope_04.jpg)

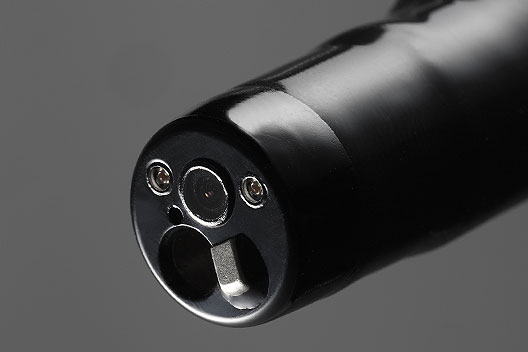

![[photo] Tip of scope, with functioning parts](https://asset.fujifilm.com/www/pe/files/2025-07/ebc18844093e2248c12ea8ff9a87bc3d/pic_colonoscope_05.jpg)

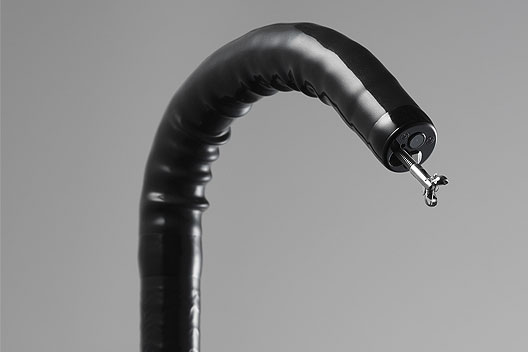

![[photo] Flexible tip of scope bent downward with forceps sticking out](https://asset.fujifilm.com/www/pe/files/2025-07/1b07089927ff4014dc7897bb0403693d/pic_colonoscope_06.jpg)
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Distal end diameter
12.8mm
- Insertion tube diameter
12.8mm
- Minimum diameter of instrument channel
3.8mm
- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160- Working length
1,330 / 1,690 mm
- Total length
1,630 / 1,990 mm
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable

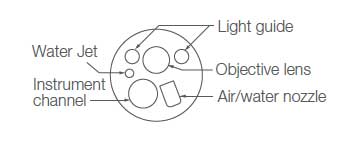

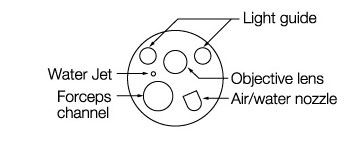

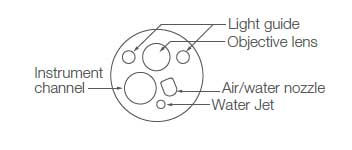

![[image] Tip of endoscope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/pe/files/2025-07/c46271acd0e9cd8ae95ac2d895a13e3d/fig_colonoscope_04.jpg)

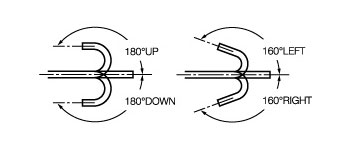

![[image] Scope moves 180 degrees up/down, 160 degrees left/right flexible angles](https://asset.fujifilm.com/www/pe/files/2025-07/4431da6c7b26ae3d0990fa05946d7064/fig_colonoscope_05.jpg)

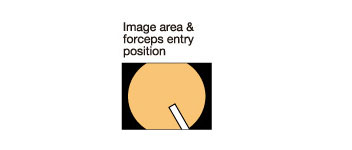

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/pe/files/2025-07/f66b430f7d123174ce412ad308becc08/fig_colonoscope_06.jpg)

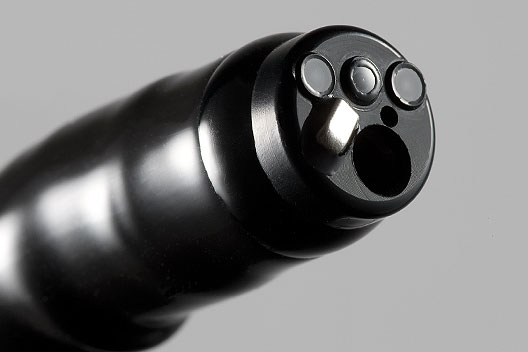

![[photo] Tip of scope, with functioning parts](https://asset.fujifilm.com/www/pe/files/2025-07/475e807fff5a4121b30d86dacdaa8794/pic_colonoscope_08.jpg)

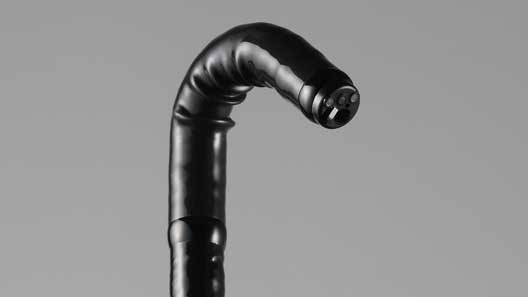

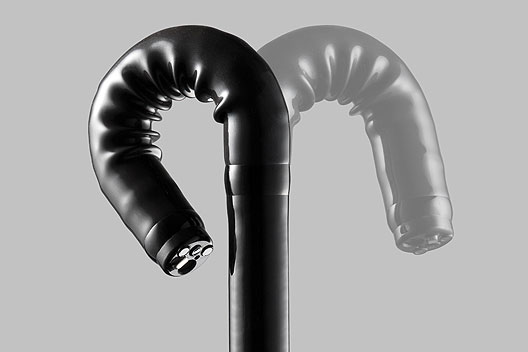

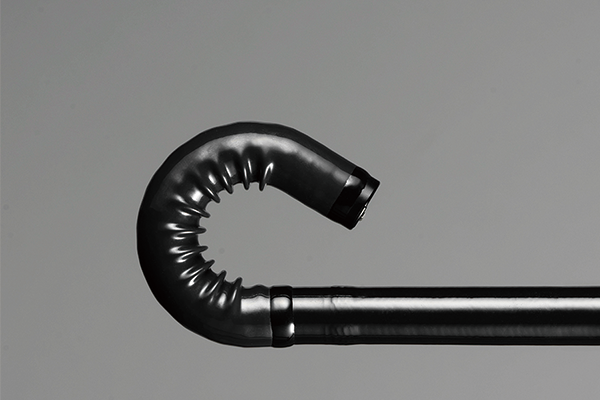

![[photo] Flexible tip of scope bent downward to the side](https://asset.fujifilm.com/www/pe/files/2025-07/e5ec8e81bef55ebd094306641f74993e/pic_colonoscope_09.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
9.8mm
- Insertion tube diameter
10.5mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability
UP 210° / DOWN 160°
RIGHT 160° / LEFT 160°- Working length
EC-580RD/M
1,330mmEC-580RD/L
1,690mm- Total length
EC-580RD/M
1,630mmEC-580RD/L
1,990mm- Water Jet
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
![[image] Tip of endoscope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/pe/files/2025-07/180f3ff978742a32bf21ef8c875c65ff/fig_colonoscope_07.jpg)

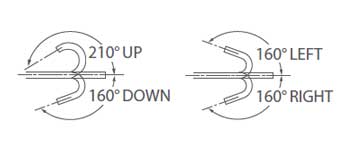

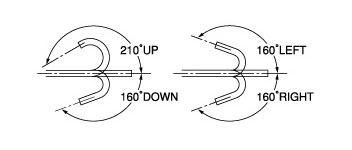

![[image] Scope moves 210 degrees up/ 160 degrees down, 160 degrees left/right flexible angles](https://asset.fujifilm.com/www/pe/files/2025-07/e28dcf3634955df28f757988178a11cd/fig_colonoscope_08.jpg)

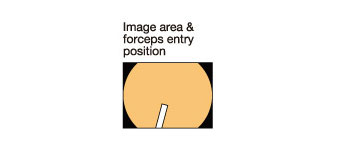

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/pe/files/2025-07/7898c739b78d8d70477121583e55d7ce/fig_colonoscope_09.jpg)
