Digital Minilab

Frontier LP 5000R

NEW

Compact, High Quality Digital Minilab. Delivers Excellent Quality at Scale of 1,900 4R Prints per Week.

Main Specifications

Processing capacity  Print sizes Paper Widths LP 5000R
3 R 127 mm (5”) Approx. 900 prints/hr
4 R 152 mm (6”) Approx. 800 prints/hr
8 R 203 mm (8") Approx. 300 prints/hr
Print sizes 82.5 mm (3.2") X  117 mm (4.6") , 89 mm (3.5") X 127 mm (5") - 203 mm (8")  X 305 mm (12") , A4
Processing chemicals Chemical system CP-49E
Footprint space Approx. 0.84 m2 (included optional unit )

Laser Printer /Paper Processor

Type

Floor-type, normal light operation (laser printer, processor, cutter and sorter in one unit)

Exposure system

Scanning exposure system using RGB lasers

Paper magazines

Two switchable paper magazines (standard accessory)

Paper

FUJICOLOR paper (silver-halide)

Paper widths

89 mm (3.5") , 102 mm (4") , 117 mm (4.6") , 127 mm (5") , 152 mm (6") , 203 mm (8") , 210 mm (8.3")

Back printing

Single 40/80-character lines in backside print of information

Printer sorter

SU700AR, sorting capacity: 7 orders of C/H/P-mixed format prints

Printer condition setup

Semi-automatic calibration by built-in calibrator

Processing time

Dry-to-dry: 1min. 27 sec

Power requirements

AC 200-240 V (50/60 Hz) Single-phase 16 A, approx. 3.4 KVA

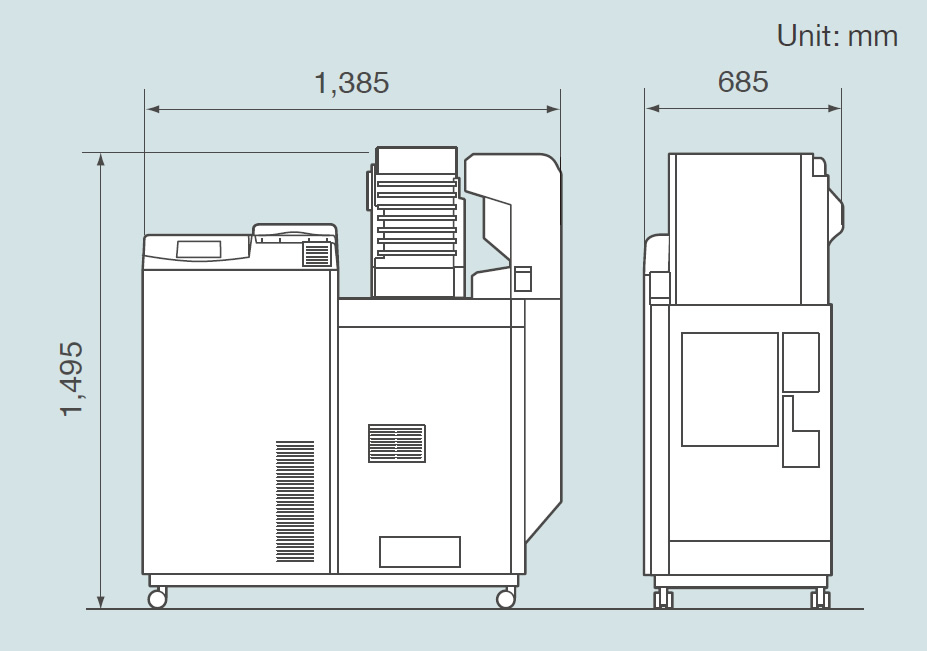

Dimensions

(with sorter) 1,385 (W) X  685 (D) X ,495 (H) mm

Weights

(with sorter) Approx. 345 kg (400 kg during actual operation)

  • * Performance varies depending on processing capabilities of the Imaging Controller.
  • * Specifications are subject to change without notice.
  • * All brand names or trademarks are property of their respective owners.
