The content on this page is intended to healthcare professionals and equivalents.
- Measurement method
Surface plasmon-enhanced fluorometry
- Test Parameters
Serum amyloid A (SAA), progesterone (PRG), thyroxine (T4),
thyroid-stimulating hormone (TSH), cortisol (COR), bile acids (BA)- Data memory
270 tests
- Setup time
3 min (time from power ON to measurement ready)
- Power
AC 100-240V ±10%, 50-60Hz,1.4-0.8A
- Dimensions
W250 × D330 × H320 mm
- Weight
Approx. 9 kg

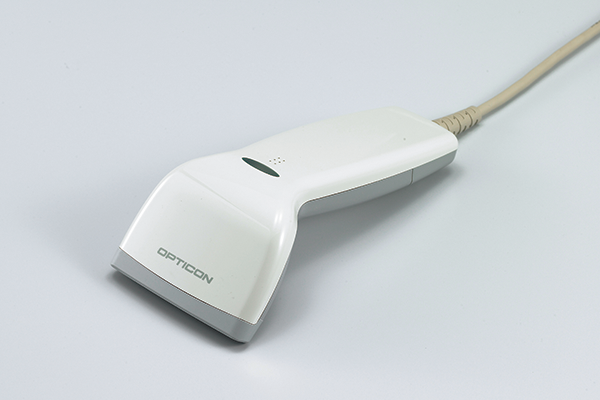

Sample barcode reader

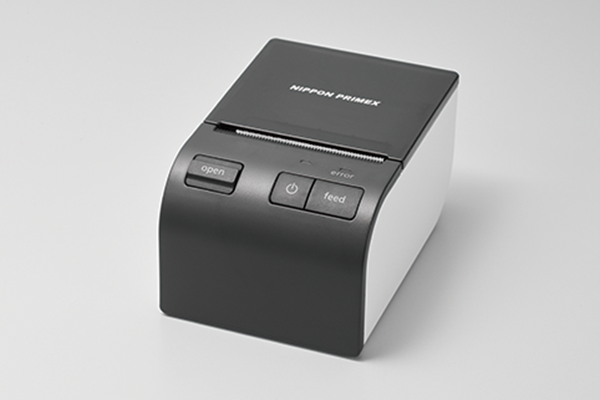

Printer
Parameters：Serum amyloid A (SAA)
Type of sample：Feline serum, Feline plasma(dilution measurement only for serum and plasma)
Measurement range：3.75–225.0 μg/mL
Measurement time：Approx. 10 min*1
Required sample volume：10 μL
Parameters：Progesterone (PRG)
Type of sample：Canine serum, Canine plasma
Measurement range：0.20–40.00 ng/mL(0.64–127.20 nmol/L)
Measurement time：Approx. 10 min*1
Required sample volume：100 μL
Parameters：Thyroxine (T4)
Type of sample：Canine serum, Feline serum, Canine plasma, Feline plasma
Measurement range：0.50–8.00 μg/dL(6.4–103.0 nmol/L)
Measurement time：Approx. 10 min*1
Required sample volume：100 μL
Parameters：Thyroid-stimulating hormone (TSH)
Type of sample：Canine serum, Canine plasma
Measurement range：0.25–5.00 ng/mL
Measurement time：Approx. 10 min*1
Required sample volume：100 μL
Parameters：Cortisol (COR)
Type of sample：Canine serum, Canine plasma(dilution measurement only for plasma)
Measurement range：1.0–30.0 μg/dL(27.6–828.0 nmol/L) , 1.0–50.0 μg/dL(27.6–1380.0 nmol/L) for dilution measurement
Measurement time：Approx. 10 min*1
Required sample volume：20 μL, 100 μL for Basic (Undiluted) measurement
Parameters：Bile acids (BA)
Type of sample：Canine serum, Feline serum, Canine plasma, Feline plasma
Measurement range：2.0–150.0 μmol/L
Measurement time：Approx. 10 min*1
Required sample volume：100 μL
- *1 At 24°C. The measurement time may vary depending on the ambient temperature.
- FUJI HEPARIN TUBE 0.5 mL
- FUJI HEPARIN TUBE 1.5 mL
- FUJI PLAIN TUBE 0.5mL
- FUJI PLAIN TUBE 1.5 mL
- FUJI AUTO TIPS
