Pressure measurement film Round Prescale

Round Cut Prescale

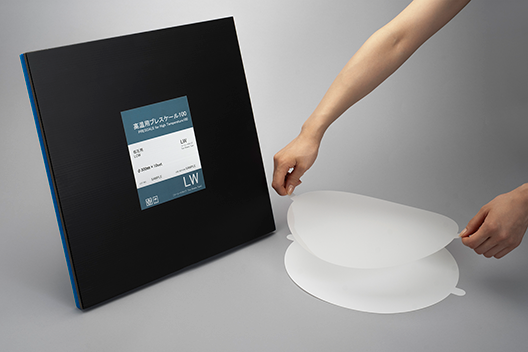

Prescale and Prescale for High Temperature are films that visualize pressure, and Round Prescale is a version customized to match round shape.

You can easily measure pressure by simply holding the handle and placing the film between the surfaces. When pressure is applied, the film changes color in response to the applied pressure, enabling you to visually confirm the pressure distribution.

Furthermore, pressure data can be quantified using FUJIFILM Prescale Station or FUJIFILM Prescale Mobile.

Learn more about
“FUJIFILM Prescale Station”

Learn more about
“FUJIFILM Prescale Mobile”

Product name: Round Prescale (300mmφ)
Recommended temperature: Round Prescale (300mmφ): 20°C to 35°C
Round Prescale (300mmφ) for High Temperature 100: 35°C to 150°C (heat applied to both sides)
Round Prescale (300mmφ) for High Temperature 200: 150°C to 220°C (heat applied to both sides)
Recommended humidity: 35％RH～80％RH^*1
Product Diameter: 300mmφ

*1 Except for Prescale for High Temperature 100 / 200

Prescale line-up

Prescale is categorized into different types according to the pressure range [MPa] you wish to measure.
Please select the type that best suits your inspection condition.

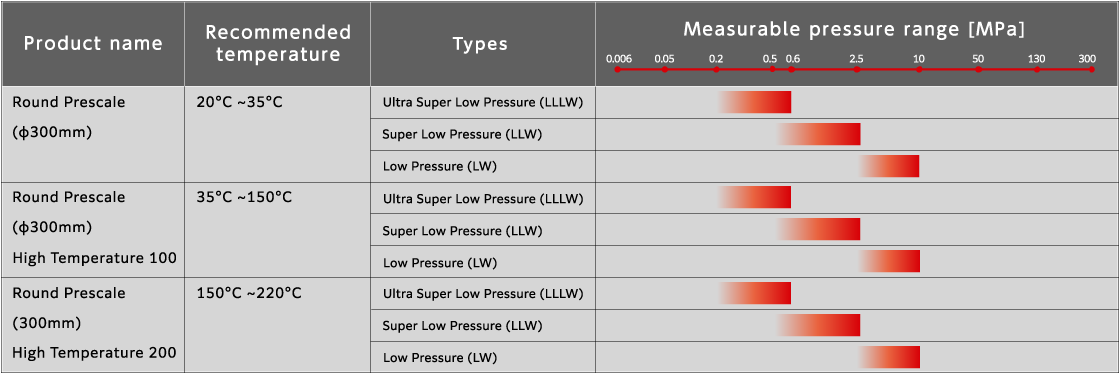

Prescale measurable pressure range table

How to calculate pressure value (MPa):

To calculate the pressure value (Mpa), you need the mass (kg) or newtons (N), as well as the surface area (mm² or cm²).

1 MPa = 1 N/mm² ≒ 10.2 kgf/cm²
e.g.) if 100 kg is applied on a 100mm²(1cm²) surface, the calculation is 100kgf/cm².

You can automatically check the pressure values from the options below.

Round Prescale - Overview
