Projector FP-ZUH6000: Specifications

Specifications

FP-ZUH6000

Main Specifications

Model name			FP-ZUH6000
DLP® chip		Size	0.65 in, 16:9 aspect ratio
		Display method	1 Chip DLP®
		Number of pixels	2,073,600 pixel (1920 x 1080)
Lens		Type	Folded two-axial rotatable lens
		Shift	Electrical: Vertical ±82%, Horizontal ±35%
		Zoom	Electrical: x1.0-x1.1
		Throw ratio(TR)*¹	0.34 (Wide)-0.37 (Telephoto)
		Focal length	f=5.0mm (Wide)-5.5mm (Telephoto)
		F No.	F2.3 (Wide)-F2.39 (Telephoto)
Keystone correction range			Vertical ±5°/ Horizontal ±5°
Light source			Laser diode
Brightness [ANSI lm^*2]			6,000lm
Light source life*³			20,000 hours
Contrast ratio*⁴			12,000:1
Projected image size			70-300 inches
Maximum display resolution(WxH)			4K 3840 x 2160 (4K mode ON)
Terminals	Video IN terminals	HDMI®1	TypeA HDMI®2.0 (Compatible with HDCP 2.2)
		HDMI®2	TypeA HDMI®2.0 (Compatible with HDCP 2.2)
		HDBaseT™	RJ-45 For video/audio/connection control
	Video OUT terminals	HDMI®	TypeA HDMI® 2.0 (Compatible with HDCP 2.2)
	Control IN/OUT terminals	LAN	RJ-45 For network connection (10BASE-T/100Base-TX)
		HDBaseT™	RJ-45 For projector connection control
		RS-232C	D-Sub 9Pin For projector connection control
	Audio OUT terminal	AUDIO OUT	M3.5mm stereo mini jack
	Remote IN	REMOTE	M3.5mm stereo mini jack for wired remote control
	Others	USB1	TypeA DC 5V 1.5A (Max)
	Others	USB2	TypeB for maintenance
Power supply			AC 100-120V, AC 220-240V 50/60Hz
Power consumption		Maximum	650W
		Normal	560W
		Eco	285W
		Standby	Approx.0.5W
		Network standby	Approx.8.0W
Dimensions			486mm (W) x 496mm (D) x 175mm (H) (excluding adjustable feet and protruding parts)
Weight			Approx.17.5kg (38.6lb)
Noise level*⁵		Normal	36dB
Noise level*⁵		Eco	34dB
Operation environment		Operating temperature	0-40°C(32-104°F)
Accessories included			Power cord 3.0m (9.8ft)
			Lens cap
			Remote control
			Remote control battery (AAA type x2)
			Basic manual

*1 The “throw ratio” is the throw distance divided by the screen width.
*2 The average value for this model at shipment, according to ANSI standards.
*3 The estimated time taken for brightness to drop by half. Varies with the operating environment and conditions of use.
*4 Assumes that dynamic black is on.
*5 Noise measurement follows ISO 7779.

Product specifications and appearance are subject to change without advance notice

* DLP Cinema and the DLP Cinema logo are trademarks or registered trademarks of Texas Instruments.
* The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
* HDBaseT and HDBaseT Alliance logo are trademarks of HDBaseT Alliance.

Interface Connectors

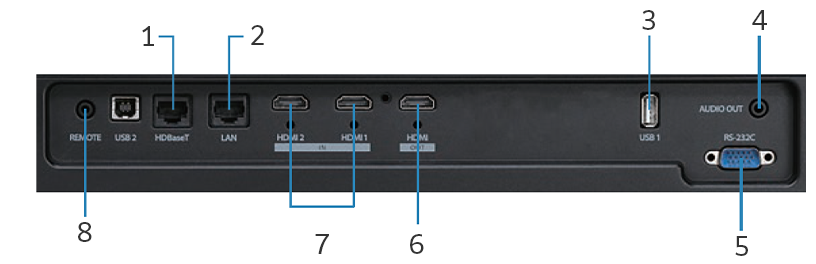

Description of the input terminal face of the Z-Projector

HD BaseT
LAN
USB (DC5V/1.5A)
AUDIO OUT
RS-232C
HDMI OUT
HDMI IN 1/2
Wired Remote IN

Dimension

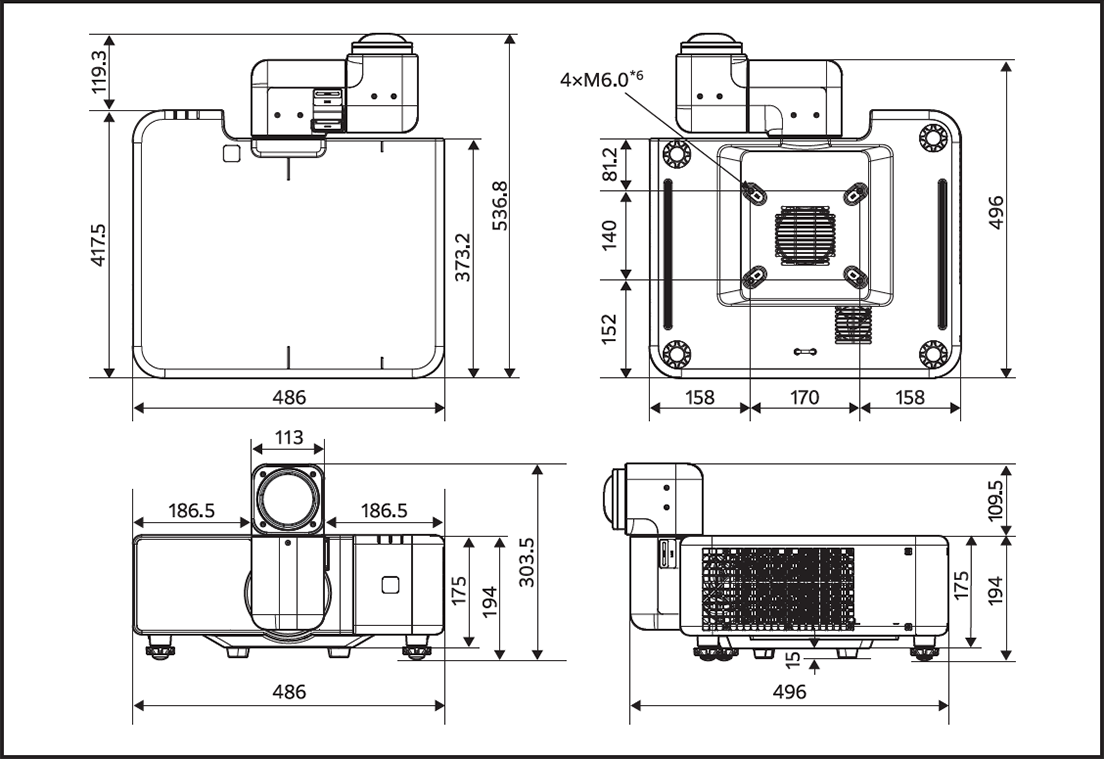

Outline Drawing

Detailed size description of each part of Z-Projector

*6 For ceiling mount installation

Projection Distance

Lens Shift Range

Projection Distance

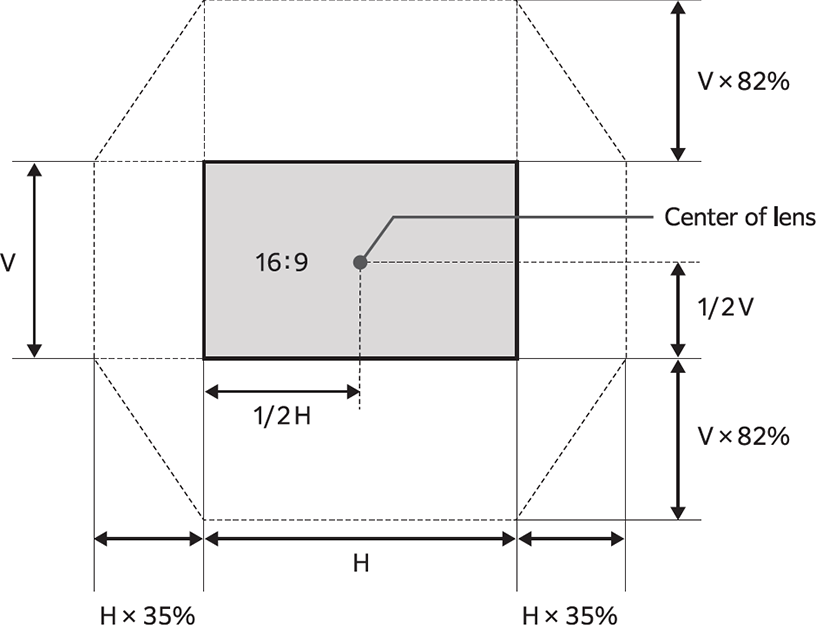

Description of the screen shift range from the center of the lens

Projection Distances

16:9 Screen			Projection distance (cm)	Lens shift (cm)
Size (inches)	Width x Height (cm)	Area (m²)	Wide-Tele	Lowest-Highest
70	155 × 87	1.3	52 － 57	-115 － 28
80	177 × 100	1.8	59 － 65	-131 － 32
100	221 × 125	2.8	75 － 82	-164 － 40
120	266 × 149	4.0	90 － 99	-197 － 48
150	332 × 187	6.2	113 － 124	-247 － 60
180	399 × 224	8.9	135 － 149	-296 － 72
200	443 × 249	11.0	151 － 166	-329 － 80
250	553 × 311	17.2	189 － 208	-411 － 100
300	664 × 374	24.8	227 － 250	-493 － 120
