Colonoscopes
NEWLower G.I. tract scope line up support wide range of examinations and treatments.
The content on this page is intended to healthcare professionals and equivalents.

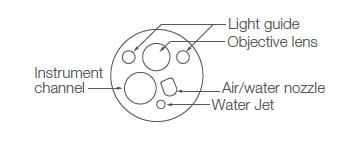

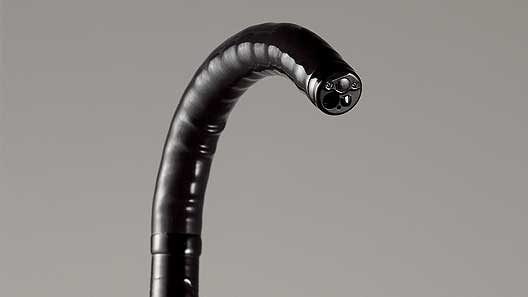

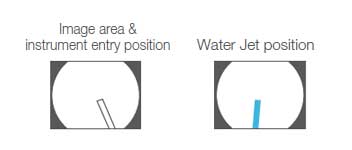

EC-760R-V, EC-760P-V



-
Viewing direction
-
0°(Forward)
-
Field of view
-
170°
-
Observation range
-
2-100mm
-
Distal end diameter
-
EC-760R-V
12.0mmEC-760P-V
11.1mm -
Insertion tube diameter
-
EC-760R-V
12.0mmEC-760P-V
11.5mm -
Minimum diameter of instrument channel
-
EC-760R-V
3.8mmEC-760P-V
3.2mm -

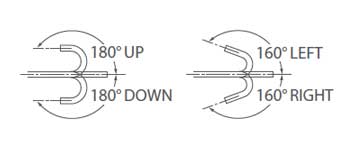

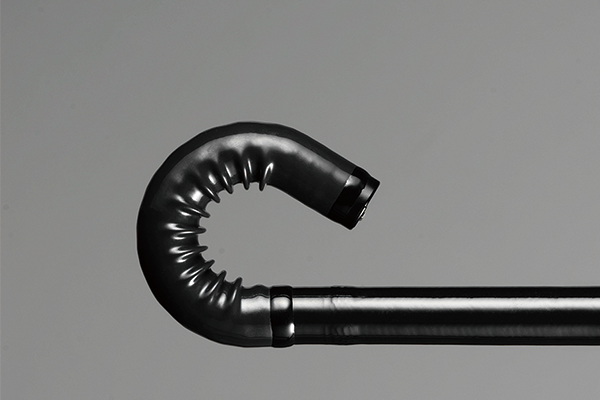

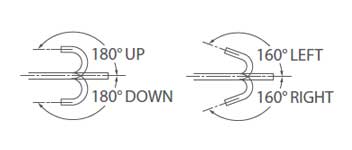

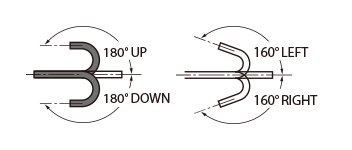

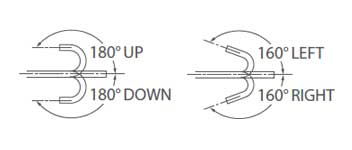

Bending capability
-
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160° -
Working length
-
EC-760R-V/M,I,L
1,330mm / 1,520mm / 1,690mmEC-760P-V/M,L
1,330mm / 1,690mm -
Total length
-
EC-760R-V/M,I,L
1,650mm / 1,840mm / 2,010mmEC-760P-V/M,L
1,650mm / 2,010mm -

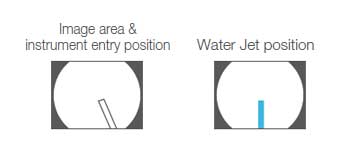

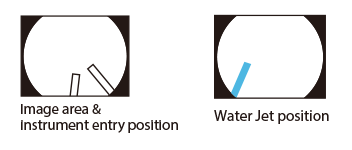

Water Jet
-
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable

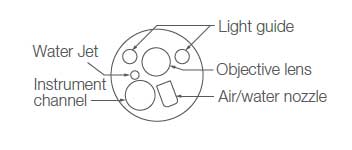

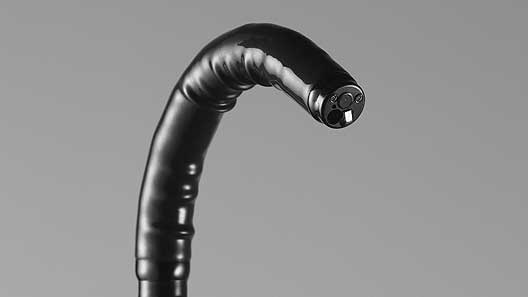

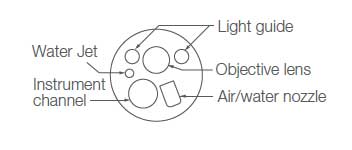

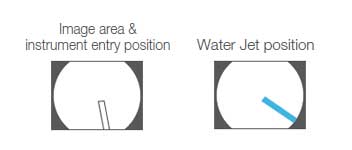

EC-760Z, EC-760ZP-V



-
Viewing direction
-
0°(Forward)
-
Field of view
-
Normal: 140° / Closest: 56°
-
Observation range
-
1.5-100mm
Normal: 3-100mm
Closest: 1.5-2.5mm -
Distal end diameter
-
EC-760Z-V
12.8mmEC-760ZP-V
11.7mm -
Insertion tube diameter
-
EC-760Z-V
12.8mmEC-760ZP-V
11.8mm -
Minimum diameter of instrument channel
-
EC-760Z-V
3.8mmEC-760ZP-V
3.2mm -

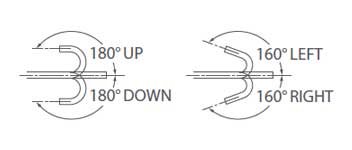

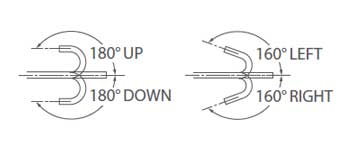

Bending capability
-
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160 -
Working length
-
EC-760Z-V/M,L
1,330mm / 1,690mmEC-760ZP-V/M,L
1,330mm / 1,690mm -
Total length
-
EC-760Z-V/M,L
1,650mm / 2,010mmEC-760ZP-V/M,L
1,650mm / 2,010mm -
Water Jet
-
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable

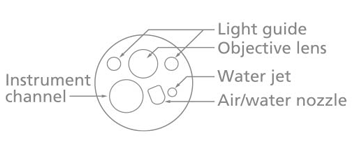

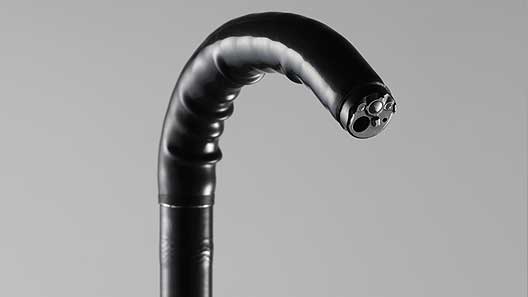

EC-720R



-
Viewing direction
-
0° (Forward)
-
Field of view
-
170°
-
Observation range
-
2-100mm
-
Distal end diameter
-
12.8mm
-
Insertion tube diameter
-
12.8mm
-
Minimum diameter of instrument channel
-
3.8mm
-

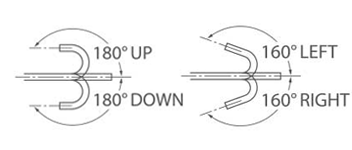

Bending capability
-
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160° -
Working length
-
EC-720R/M
1,330mmEC-720R/I
1,520mmEC-720R/L
1,690mm -
Total Length
-
EC-720R/M
1,630mmEC-720R/I
1,820mmEC-720R/L
1,990mm -

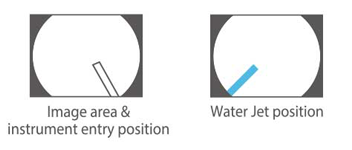

Water Jet
-
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable



EC-600W



-
Viewing direction
-
0°(Forward)
-
Field of view
-
140°
-
Observation range
-
2-100mm
-
Distal end diameter
-
12.0mm
-
Insertion tube diameter
-
12.0mm
-
Minimum diameter of instrument channel
-
3.8mm
-
Bending capability
-
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160° -
Working length
-
EC-600W/M
1,330mmEC-600W/I
1,520mmEC-600W/L
1,690mm -
Total length
-
EC-600W/M
1,630mmEC-600W/I
1,820mmEC-600W/L
1,990mm -
Water Jet
-
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable



EC-600ZW



-
Viewing direction
-
0°(Forward)
-
Field of view
-
Normal: 140° / Closest: 56°
-
Observation range
-
1.5-100mm
Normal: 3-100mm
Closest: 1.5-2.5mm -
Distal end diameter
-
12.8mm
-
Insertion tube diameter
-
12.8mm
-
Minimum diameter of instrument channel
-
3.8mm
-
Bending capability
-
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160 -
Working length
-
EC-600ZW/M
1,330mmEC-600ZW/L
1,690mm -
Total length
-
EC-600ZW/M
1,630mmEC-600ZW/L
1,990mm
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable



EC-580RD



-
Viewing direction
-
0°(Forward)
-
Field of view
-
140°
-
Observation range
-
3-100mm
-
Distal end diameter
-
9.8mm
-
Insertion tube diameter
-
10.5mm
-
Minimum diameter of instrument channel
-
3.2mm
-
Bending capability
-
UP 210° / DOWN 160°
RIGHT 160° / LEFT 160° -
Working length
-
EC-580RD/M
1,330mmEC-580RD/L
1,690mm -
Total length
-
EC-580RD/M
1,630mmEC-580RD/L
1,990mm -
Water Jet
-
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable



EC-530W



-
Viewing direction
-
0° (Forward)
-
Field of view
-
140°
-
Observation range
-
3-100mm
-
Distal end diameter
-
12.8mm
-
Insertion tube diameter
-
12.8mm
-
Minimum diameter of instrument channel
-
3.8mm
-
Bending capability
-
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160° -
Working Length
-
EC-530WM3
1,330mmEC-530WI3
1,520mmEC-530WL3
1,690mm -
Total Length
-
EC-530WM3
1,630mmEC-530WI3
1,820mmEC-530WL3
1,990mm
