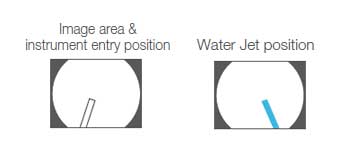

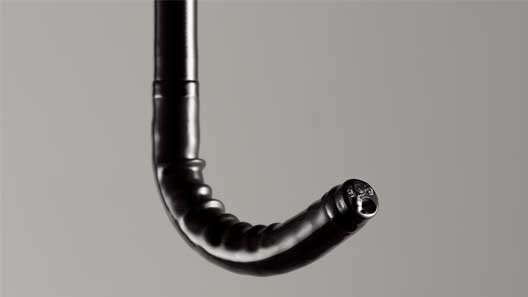

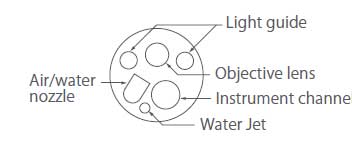

EG-760R
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm

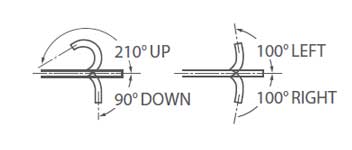

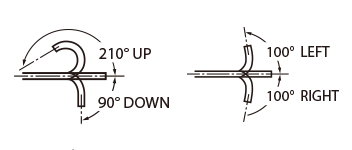

- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

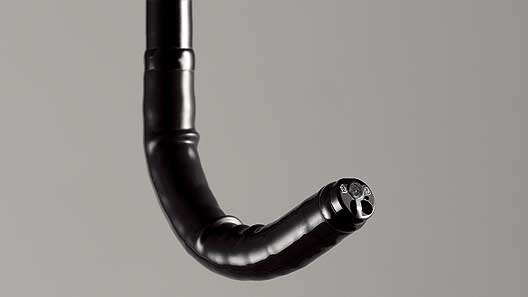

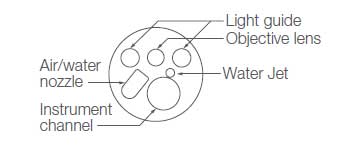

EG-760Z
- Viewing direction
0°(Forward)
- Field of view
Normal: 140°
Closest: 56°- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm
- Distal end diameter
9.9 mm
- Insertion tube diameter
9.8 mm
- Minimum diameter of instrument channel
2.8 mm

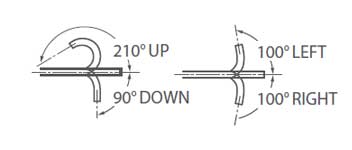

- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

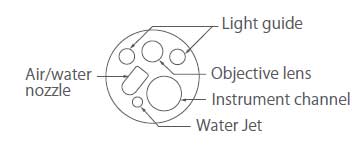

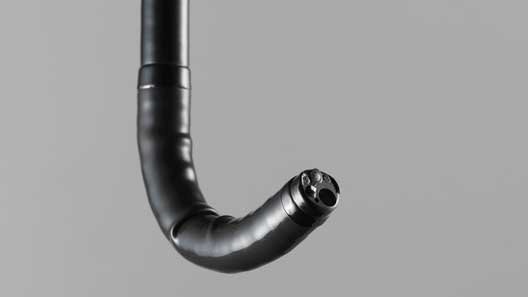

EG-760CT
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
10.5 mm
- Insertion tube diameter
10.8 mm
- Minimum diameter of instrument channel
3.8 mm

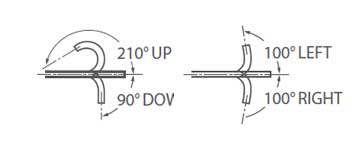

- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

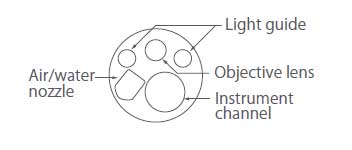

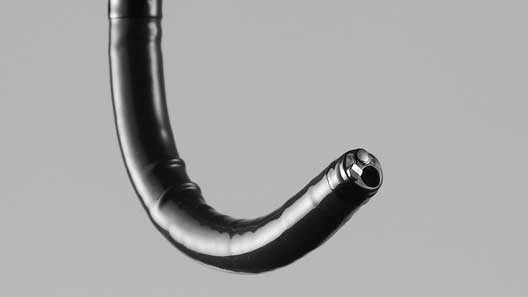

EG-740N
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum diameter of instrument channel
2.4 mm

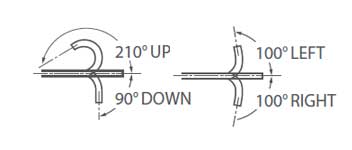

- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Unavailable
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

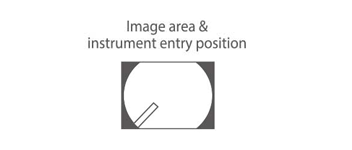

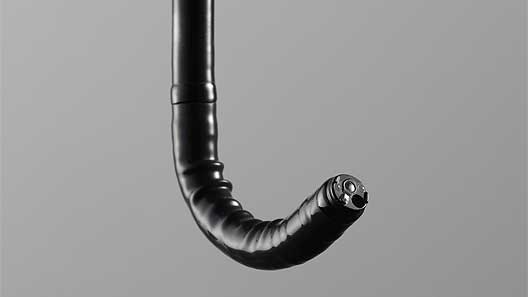

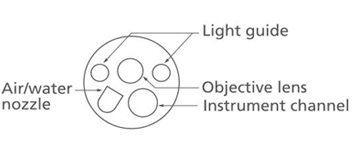

EG-720R
- Viewing direction
0° (Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability

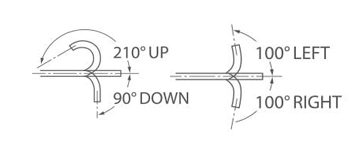

UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
EG-600WR
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
EG-600ZW
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Distal end diameter
9.9mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
EG-580RD
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
9.8mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
EG-580NW2
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.4mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
EG-530WR
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
4-100 mm
- Distal end diameter
9.4 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Unavailable
EG-530CT
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100 mm
- Distal end diameter
10.8 mm
- Insertion tube diameter
10.8 mm
- Minimum diameter of instrument channel
3.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
