- Field of view
170°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 180° / Down 180°
Right 160° / Left 160- Working length
1,330 mm（M） / 1,690 mm（L）
- Total length
1,650 mm（M） / 2,010 mm（L）
- Distal end diameter
11.5 mm
- Insertion tube diameter
11.5 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
170°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 180° / Down 180°
Right 160° / Left 160°- Working length
1,330 mm（M） / 1,520 mm（I） / 1,690 mm（L）
- Total length
1,650 mm（M） / 1,840 mm（I） / 2,010 mm（L）
- Distal end diameter
12.8 mm
- Insertion tube diameter
12.8 mm
- Minimum instrument channel diameter
3.8 mm
- Product name: Video endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
170°
- Viewing direction
0° (Forward)
- Observation range
2～100 mm
- Bending capability
UP: 180° / DOWN: 180°
RIGHT: 160° / LEFT: 160°- Working length
1,330 mm（M）/1,520 mm（I）/1,690 mm（L）
- Total length
1,650 mm（M）/1,840 mm（I）/2,010 mm（L）
- Distal end diameter
12.0 mm
- Insertion tube diameter
12.0 mm
- Minimum diameter of instrument channel
3.8 mm
- Image size
Super image
- Flexibility adjustment mechanism
Available
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
170°
- Viewing direction
0° (Forward)
- Observation range
2～100 mm
- Bending capability
UP: 180° / DOWN: 180°
RIGHT: 160° / LEFT: 160°- Working length
1,330 mm（M）/1,690 mm（L）
- Total length
1,650 mm（M）/2,010 mm（L）
- Distal end diameter
11.1 mm
- Insertion tube diameter
11.5 mm
- Minimum diameter of instrument channel
3.2 mm
- Image size
Super image
- Flexibility adjustment mechanism
Available
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
170°
- Viewing direction
0° (Forward)
- Observation range
2～100 mm
- Bending capability
UP: 180° / DOWN: 180°
RIGHT: 160° / LEFT: 160°- Working length
1,690 mm
- Total length
2,010 mm
- Distal end diameter
12.8 mm
- Insertion tube diameter
12.8 mm
- Minimum diameter of instrument channel
3.8 mm
- Image size
Super image
- Flexibility adjustment mechanism
Available
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
Normal: 140° Closest: 56°
- Viewing direction
0° (Forward)
- Observation range
1.5～100 mm
Normal: 3～100 mm
Closest: 1.5～2.5 mm- Bending capability
UP: 180° / DOWN: 180°
RIGHT: 160° / LEFT: 160°- Working length
1,330 mm（M）/1,690 mm（L）
- Total length
1,650 mm（M）/2,010 mm（L）
- Distal end diameter
12.8 mm
- Insertion tube diameter
12.8 mm
- Minimum diameter of instrument channel
3.8 mm
- Image size
Super image
- Flexibility adjustment mechanism
Available
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
Normal: 140° Closest: 56°
- Viewing direction
0° (Forward)
- Observation range
1.5～100 mm
Normal: 3～100 mm
Closest: 1.5～2.5 mm- Bending capability
UP: 180° / DOWN: 180°
RIGHT: 160° / LEFT: 160°- Working length
1,330 mm(M) / 1,690 mm(L)
- Total length
1,650 mm(M) / 2,010 mm(L)
- Distal end diameter
11.7 mm
- Insertion tube diameter
11.8 mm
- Minimum diameter of instrument channel
3.2 mm
- Image size
Super image
- Flexibility adjustment mechanism
Available
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
3～100 mm
- Bending capability
UP: 210° / DOWN: 160°
RIGHT: 160° / LEFT: 160°- Working length
1,330 mm（M）/1,690 mm（L）
- Total length
1,630 mm（M）/1,990 mm（L）
- Distal end diameter
9.8 mm
- Insertion tube diameter
10.7 mm
- Minimum diameter of instrument channel
3.2 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
170°
- Viewing direction
0° (Forward)
- Observation range
2〜100 mm
- Bending capability
UP: 180° / DOWN: 180°
RIGHT: 160° / LEFT: 160°- Working length
1,330 mm(M) / 1,520 mm(I) / 1,690 mm(L)
- Total length
1,630 mm(M) / 1,820 mm(I) / 1,990 mm(L)
- Distal end diameter
12.8 mm
- Insertion tube diameter
12.8 mm
- Minimum instrument channel diameter
3.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
3~100 mm
- Bending capability

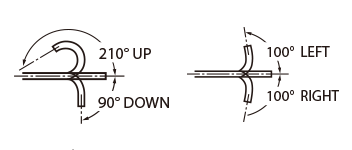

UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,030 mm
- Total length
1,330 mm
- Distal end diameter
12.8 m
- Insertion tube diameter
12.8 m

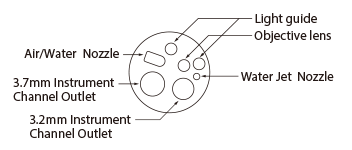

- Minimum instrument channel diameter
3.7/3.2 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 64920
- Generic name: Flexible upper/lower gastrointestinal endoscope

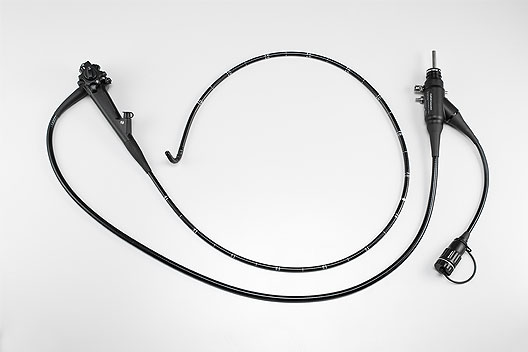

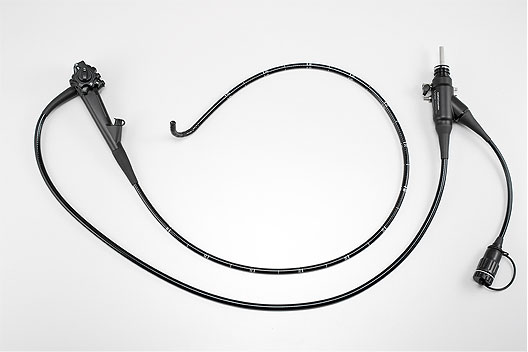

![[photo] Lower G.I. scope](https://asset.fujifilm.com/www/ve/files/2025-07/dd76d6883e2d2d5f934cce3797ebbb2d/pic_colonoscope_01.jpg)

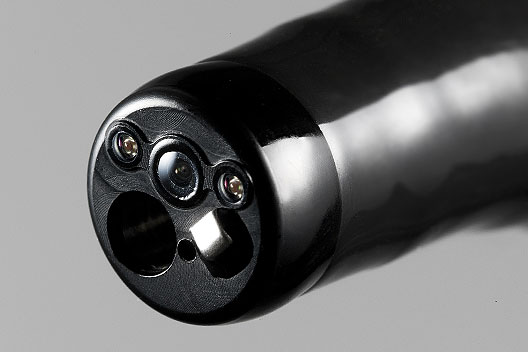

![[photo] Tip of scope, with functioning parts](https://asset.fujifilm.com/www/ve/files/2025-07/f1fe49aa6e9baa85f0738c2750d871d0/pic_colonoscope_02.jpg)

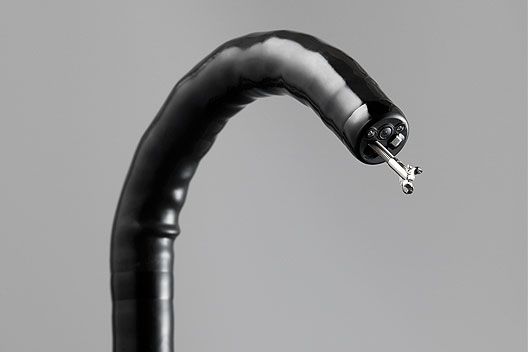

![[photo] Flexible tip of scope bent downward with forceps sticking out](https://asset.fujifilm.com/www/ve/files/2025-07/aedc4676c8f7f57023cfb24b28483902/pic_colonoscope_03.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
12.0 mm
- Insertion tube diameter
12.0 mm
- Minimum diameter of instrument channel
3.8 mm
- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°- Working length
1,330 mm（M） / 1,520 mm（I） / 1,690 mm（L）
- Total length
1,630 mm（M） / 1,820 mm（I） / 1,990 mm（L）
- Water Jet
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable

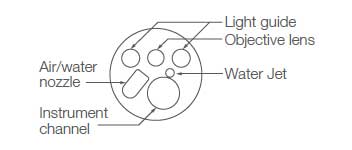

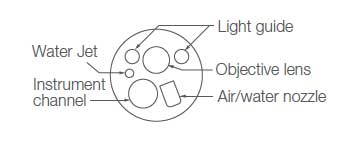

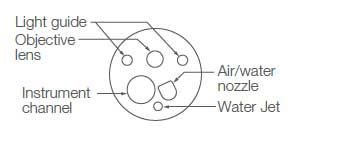

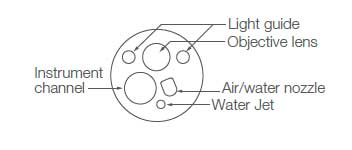

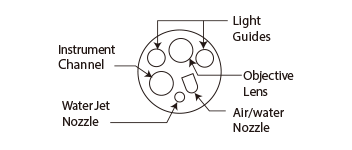

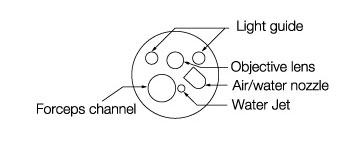

![[image] Tip of endoscope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/ve/files/2025-07/896afd81dd4c18cc0f2f03e670a99cb6/fig_colonoscope_01.jpg)

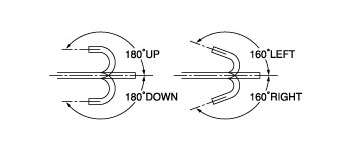

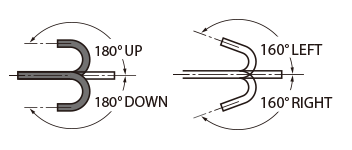

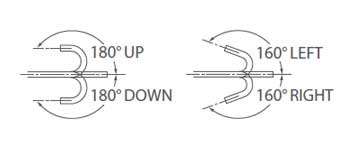

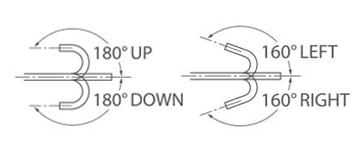

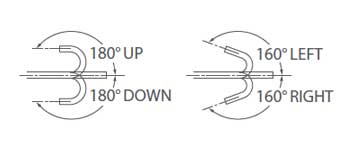

![[image] Scope moves 180 degrees up/down, 160 degrees left/right flexible angles](https://asset.fujifilm.com/www/ve/files/2025-07/a8df9d136b138d77dadc30036a2532fc/fig_colonoscope_02.jpg)

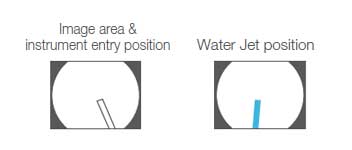

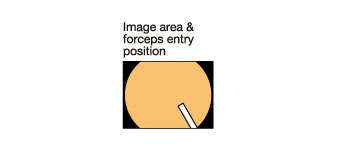

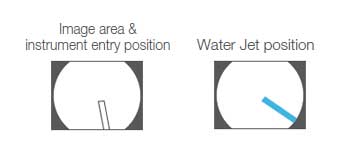

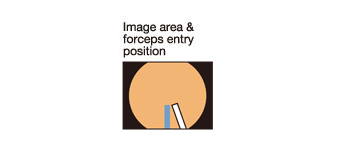

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/ve/files/2025-07/8a296997dba10005b2465abaf20336d9/fig_colonoscope_03.jpg)

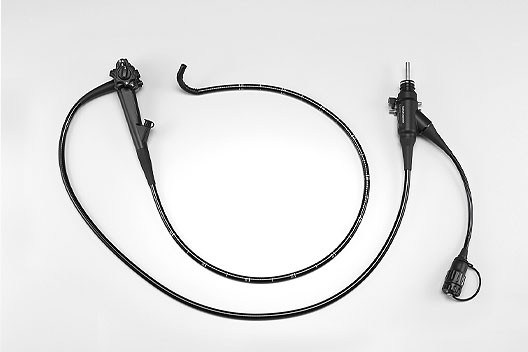

![[photo] Lower G.I. scope](https://asset.fujifilm.com/www/ve/files/2025-07/07bed72e0212c4f58ca7d1309349deff/pic_colonoscope_04.jpg)

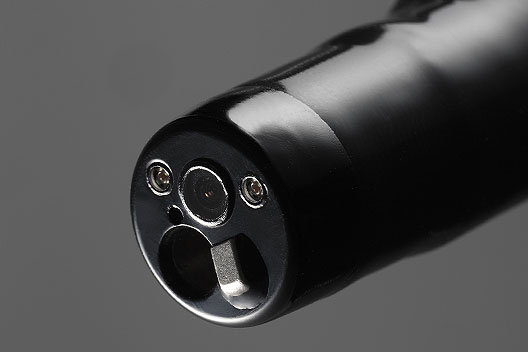

![[photo] Tip of scope, with functioning parts](https://asset.fujifilm.com/www/ve/files/2025-07/a705882a59bc9b874e34cd1ae01c2fce/pic_colonoscope_05.jpg)

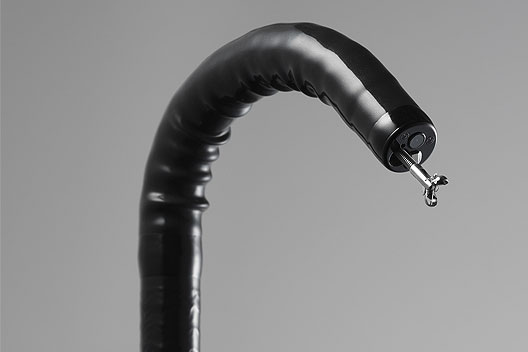

![[photo] Flexible tip of scope bent downward with forceps sticking out](https://asset.fujifilm.com/www/ve/files/2025-07/0d9cbb26afd4a857615a6e22c89b46ca/pic_colonoscope_06.jpg)
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Distal end diameter
12.8mm
- Insertion tube diameter
12.8mm
- Minimum diameter of instrument channel
3.8mm
- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160- Working length
1,330 / 1,690 mm
- Total length
1,630 / 1,990 mm
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable

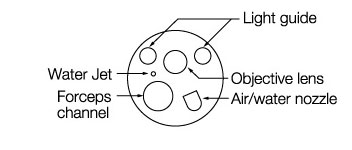

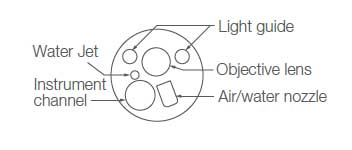

![[image] Tip of endoscope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/ve/files/2025-07/9798837942f7ec3eea3508f6331e43c3/fig_colonoscope_04.jpg)

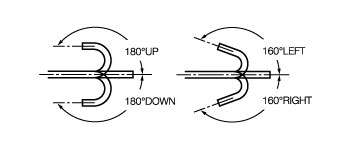

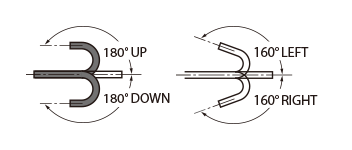

![[image] Scope moves 180 degrees up/down, 160 degrees left/right flexible angles](https://asset.fujifilm.com/www/ve/files/2025-07/d13baf6c0c0dff13ac0f36c9f15c5bfd/fig_colonoscope_05.jpg)

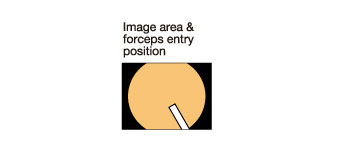

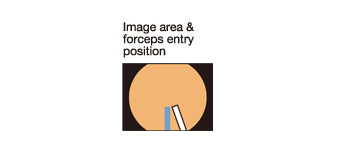

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/ve/files/2025-07/911e74a43647e2acc675854e82ccb3ab/fig_colonoscope_06.jpg)

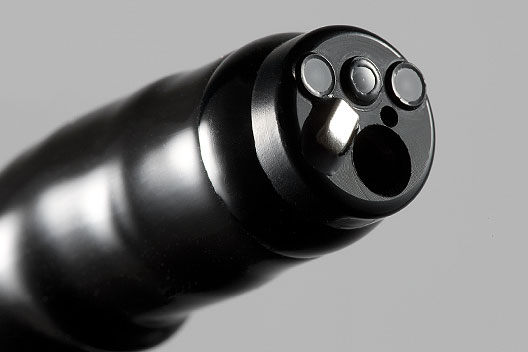

![[photo] Tip of scope, with functioning parts](https://asset.fujifilm.com/www/ve/files/2025-07/8cd5aa53d66b9540dd29dfec0a21d71b/pic_colonoscope_08.jpg)

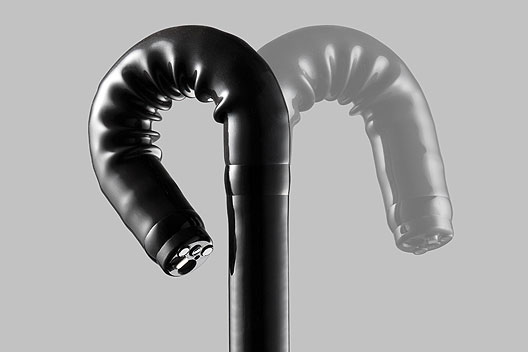

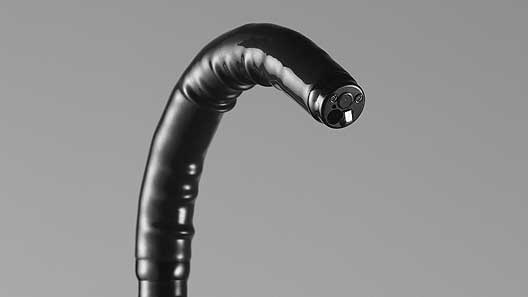

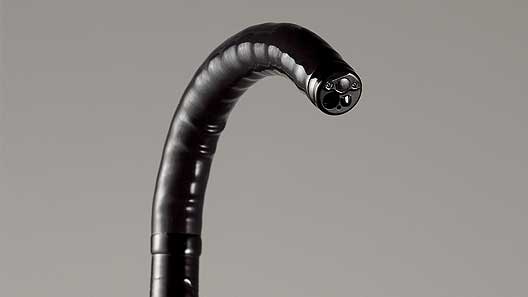

![[photo] Flexible tip of scope bent downward to the side](https://asset.fujifilm.com/www/ve/files/2025-07/04d3dac59374d63fbd3ae0c3542eac6a/pic_colonoscope_09.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
9.8mm
- Insertion tube diameter
10.5mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability
UP 210° / DOWN 160°
RIGHT 160° / LEFT 160°- Working length
EC-580RD/M
1,330mmEC-580RD/L
1,690mm- Total length
EC-580RD/M
1,630mmEC-580RD/L
1,990mm- Water Jet
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable

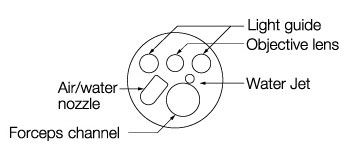

![[image] Tip of endoscope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/ve/files/2025-07/4be6f0713a84d26b3183a8e2ebadee94/fig_colonoscope_07.jpg)

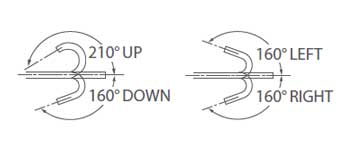

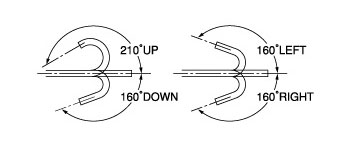

![[image] Scope moves 210 degrees up/ 160 degrees down, 160 degrees left/right flexible angles](https://asset.fujifilm.com/www/ve/files/2025-07/91e946d416f32637a315a8c96fc97f69/fig_colonoscope_08.jpg)

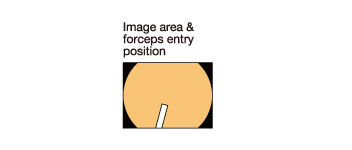

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/ve/files/2025-07/7fb7466b02a6a6cd738de6525779b848/fig_colonoscope_09.jpg)
