PSS03 Cartridge
NEWThe 0.03 µm has been added to the lineup of PSE membranes that have been received favorably because of their high retention performance and long service life.
It demonstrates its power in a line where removal of ultra-fine particles is required.
Specifications
Table of Performance Characteristics
|
Item |
Unit |
Performance |
Remarks |
|
|---|---|---|---|---|
|
Pore size |
µm |
0.03 |
||
|
Size |
Length |
mm |
- |
*1 |
|
Outer diameter |
mm |
70 |
|
|
|
Maximum |
25℃ |
MPa |
0.54 (Positive pressure) |
|
|
25℃ |
MPa |
0.34 (Negative pressure) |
|
|
|
Heat resistance |
MAX℃ |
90 |
*2 |
|
|
PH area to be used |
|
1 - 14 |
*3 |
|
- *1 Refer to the “Dimensions of the cartridge.”
- *2 Continuous operating temperature
- *3 In the case of using the cartridge for chemical fluid filtration, prior evaluation should be carried out under the planned conditions of use.
Initial flow rate and initial pressure loss
Dimensions of the cartridge (mm)
|
Shape |
Length |
Overall length |
|---|---|---|
|
M type |
S (Single) |
264 |
|
D (Double) |
512 |
|
|
T (Triple) |
761 |
|
|
MP type |
S (Single) |
313 |
|
D (Double) |
561 |
|
|
T (Triple) |
810 |
|
|
P type |
S (Single) |
319 |
|
D (Double) |
568 |
|
|
T (Triple) |
816 |
|
|
PM type |
S (Single) |
264 |
|
D (Double) |
512 |
|
|
T (Triple) |
761 |
Chemical resistance
The following data have been obtained by checking the filtration performance after 24-hour immersion testing at normal temperature. Please check the chemical compatibility under your conditions before use.
Ο - Compatible, × - Incompatible
|
Classification |
Chemical name |
Compatibility |
|---|---|---|
|
Hydrocarbon |
Benzene |
× |
|
Halogenated Hydrocarbon |
Trichloroethylene |
× |
|
Ether |
Ethyl ether |
× |
|
Glycol |
Propylene glycol |
Ο |
|
Alcohol |
Methanol |
Ο |
|
Ethanol |
Ο |
|
|
lsopropanol |
Ο |
|
|
Benzyl alcohol |
× |
|
|
Ketone |
Acetone |
× |
|
Ester |
Ethyl acetate |
× |
|
Others |
Nitric acid (6 mol/L) |
Ο |
|
Sulfuric acid (3 mol/L) |
Ο |
|
|
Hydrochloric acid (6 mol/L) |
Ο |
|
|
Sodium hydroxide (6 mol/L) |
Ο |
|
|
Aqueous ammonia (1 mol/L) |
Ο |

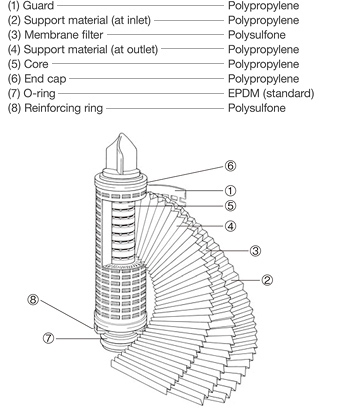

Structure and materials
The cartridge contains a PSE membrane that is pleated and integrally molded by thermal fusion bonding with a polypropylene support material. (Example: P type)
Abbreviated product name
